At Glory Rail, we specialize in providing complete, engineer-approved rail solutions for demanding marine environments. From material selection and surface treatment to overseas logistics, we help our customers solve real installation problems. The following case shows how we supported a Pakistan-based engineering service with a full shipboard deck crane rail system replacement.
1. Project Background
Customer: Pakistan Engineering Services (responsible for supply and installation).
Application: Deck-mounted crane longitudinal travel rail for vessel self-loading/unloading.
Order details:
- A45 rail + welded rail clips + rubber pads.
- 312 metres of rail, protected by SA2.5 blasting and a 3-layer paint system against corrosion.
- Shipment from Tianjin Port to Karachi in early February 2026.
2. Technical Challenges
| Challenge | Description |
|---|---|

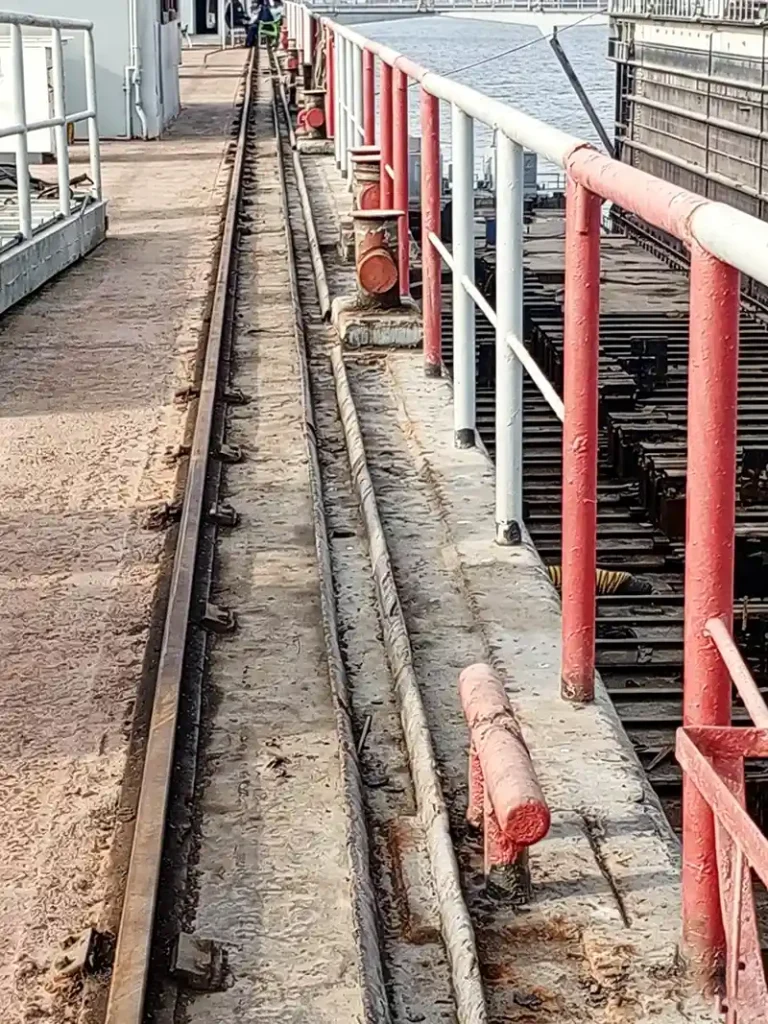

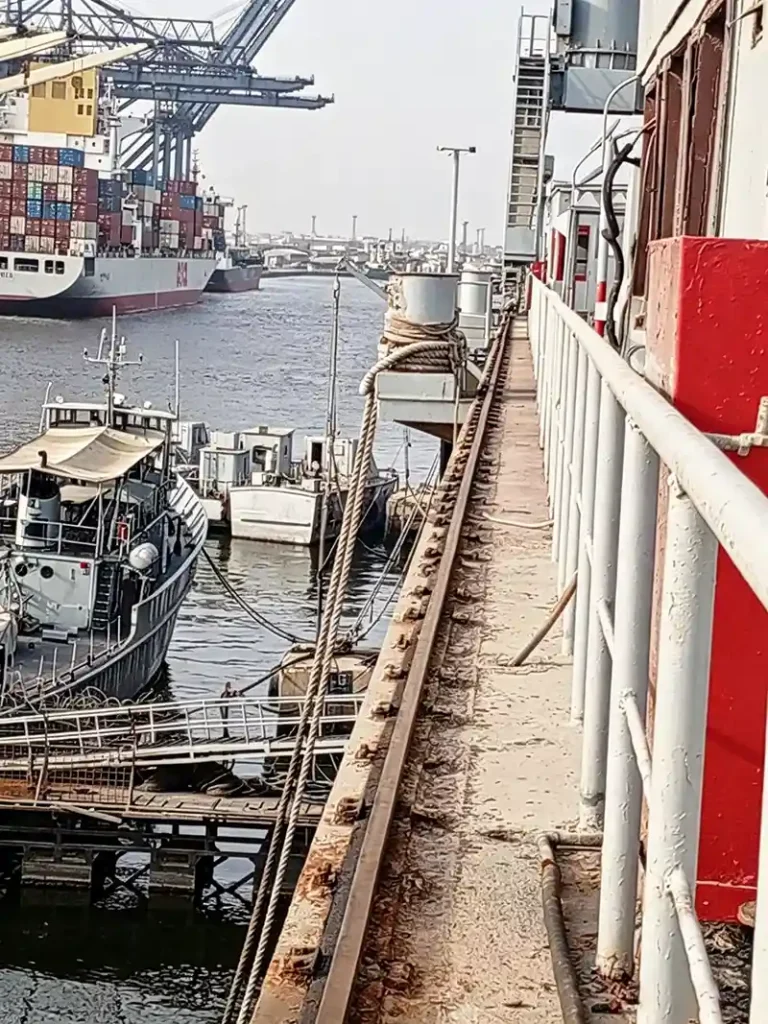

| Marine corrosion | Salt spray and sea water splash – ordinary rails rust within months. |
| Dynamic load | Lateral forces and impact vibration during crane travel. |
| Welding accuracy | Limited deck space for on‑site welding; strict straightness and levelling requirements. |
| Cross‑border logistics | Tianjin → Karachi sea freight; packaging must prevent rust and distortion. |
3. Solution – Product & Material Selection
3.1 Rail System Configuration
- Rail type: A45 (matching original crane wheel profile).
- Rail clip: Welded type – no deck drilling, strong lateral resistance.
- Elastic element: Chloroprene rubber pad – cushions impact and reduces vibration transferred to the deck.
3.2 Corrosion Protection (Key Differentiator)
- Surface preparation: SA2.5 blasting (near‑white metal, complete removal of mill scale and rust).

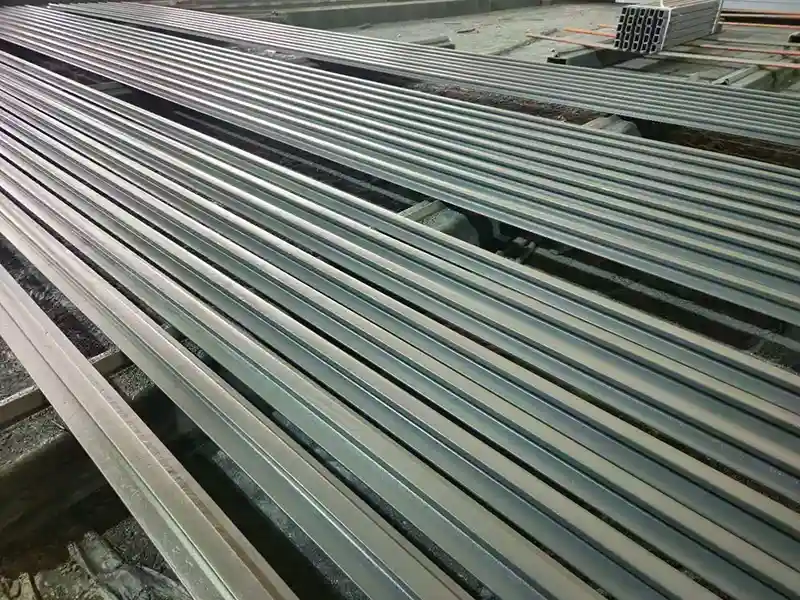

- Coating system: 3‑layer paint (typical: epoxy zinc‑rich primer + epoxy micaceous iron oxide + polyurethane topcoat).
- Total film thickness: Compliant with ISO 12944 C5‑M (high salinity marine environment).
4. Execution & Delivery
4.1 Manufacturing & Quality Control (Tianjin)

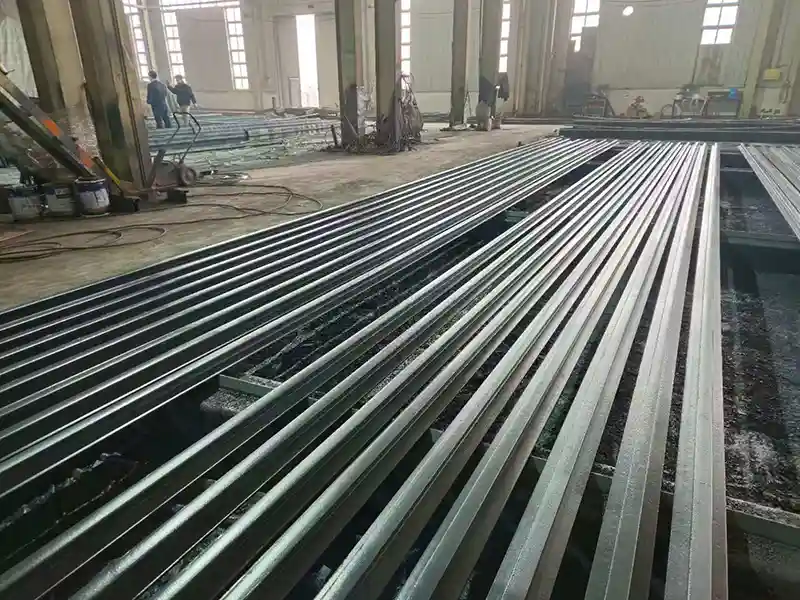

- 312 metres of rail cut and bevelled according to vessel deck drawings.
- Pre‑assembly and straightness check for each section.
- Coating adhesion, film thickness and holiday (spark) testing.
4.2 Packaging & Sea Freight
- Anti‑rust packaging: Each rail section wrapped with VCI film + waterproof cloth + wooden pallet.
- Loading port: Tianjin → Destination port: Karachi.
- Shipping date: Early February 2026 (aligned with customer’s maintenance window).
4.3 On‑site Installation Support (if provided)
- Supplied welding procedure parameters and rail levelling guidance.
- Remote/on‑site assistance for welding sequence of rail clips to prevent thermal distortion.
5. Project Results & Customer Value
| Metric | Outcome |
|---|---|
| Delivery accuracy | 100% (correct length, complete accessories). |
| Corrosion protection level | Designed for 15+ years in marine environment (based on coating system). |
| Installation efficiency | Welded rail clips saved approx. 30% time vs. bolted type. |
| Customer feedback | (To be added / “Smooth operation, passed acceptance.”) |
6. Summary & Reusable Experience
- Key to marine rail replacement: corrosion protection (SA2.5 + multi‑layer paint) + connection method (welded rail clip).
- Lessons for cross‑border projects: segment lengths must suit container / break‑bulk shipping; anti‑rust packaging must cover the entire sea transit period.
- Applicable scenarios: shipboard deck cranes, port ship unloaders, offshore platform travel mechanisms.
This shipboard deck crane rail system case demonstrates that careful material selection and surface treatment directly translate into longer service life and less downtime.
