9116 Rail Clip: High-Strength Welded Base Fixing for Crane Rails

Engineered by Glory Rail, the (9116/08/37 )9116 rail clip is a specialized welded base rail clip designed to secure heavy rails in tough industrial environments. It delivers exceptional strength, withstanding up to 55kN (5.6 tonnes) of horizontal rail force, and features a low-profile design that works seamlessly with cranes equipped with guide rollers. Its welded installation eliminates the need for access from below—simplifying setup for hard-to-reach areas.

Immediate Quote
9116 rail clip

9116 Rail Clip: Proven Features for Heavy Rail Stability

  • Global Track Record: Successfully used worldwide for years, ensuring consistent performance in demanding settings (e.g., ports, manufacturing plants, freight yards).
  • Welded Base Installation: Clips are welded directly to rail supports—no access from below required, saving time in tight or elevated spaces.
  • Locked Core & Self-Tightening Mechanism: Two main parts lock together when tightening the Grade 8.8 bolt, with a self-tightening design that prevents loosening under vibration.
  • Controlled Force Rubber Block: A special vulcanized rubber block applies precise pressure to the rail, protecting surfaces from scratches and absorbing minor impacts.
Get a Quote
Contact Our Team

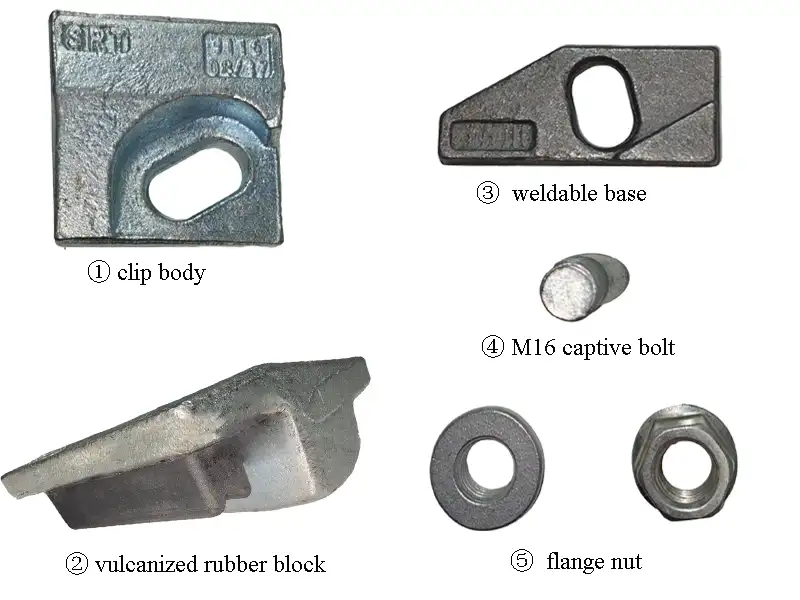

9116/08/37 Rail Clip Components

9116-rail-clip-components

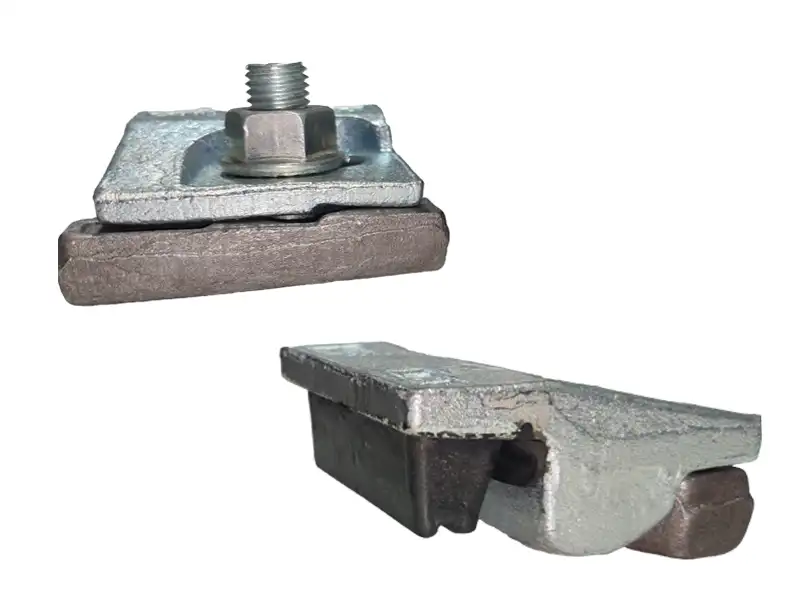

self-locking-crane-rail-clips-9116-srtrail-manufacturer-from-China

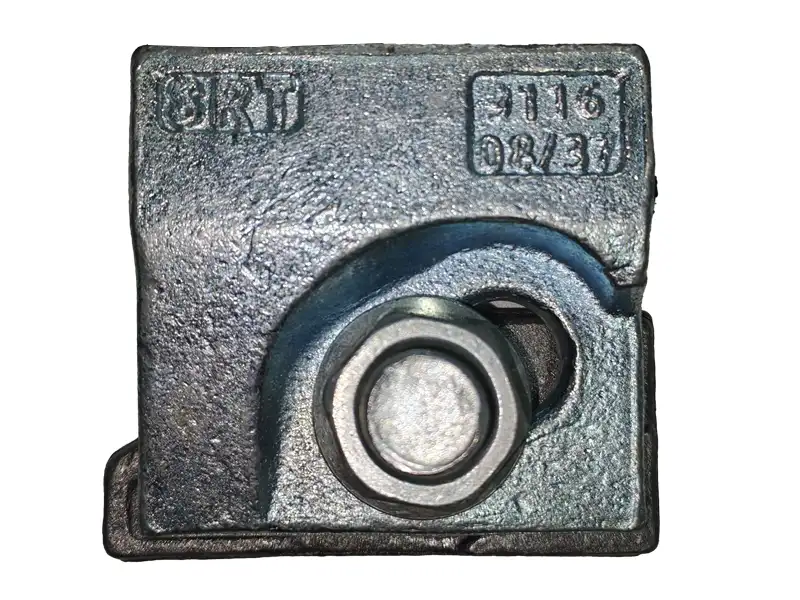

9116-rail-clips-assembly
Component NumberComponent NameKey Function
1Flange NutSecures the clip assembly, working with the self-tightening mechanism to prevent loosening.
2Forging Steel ClipHigh-strength forged steel construction resists bending and wear under heavy rail loads.
3Vulcanized Rubber BlockApplies controlled force to the rail, protecting surfaces and dampening vibration.
4Weldable BaseWeldable grade steel base enables direct attachment to supports—no below access needed.
5M16 Captive BoltGrade 8.8 captive bolt ensures secure locking of the clip’s two main parts.

9116 Rail Clip Specifications

Specification CategoryDetails
Model9116/08/37
Maximum Side Load55kN (equivalent to 5.6 tonnes)
Horizontal Rail Adjustment8 mm
Bolt SpecM16 Captive Bolt, Grade 8.8
Tightening Torque125 Nm
Clip Weight (9116/08/37)0.73 kg
Minimum Assembly Width– W = Rail width (F) + 100 mm
– V = Rail width (F) + 16 mm
Rubber Block Compatibility– S (for rails with pad): 4mm length
– H (for rails without pad): 21mm length

Welding & Installation Instructions

Welding Requirements

  • Weld Specifications: Weld all around the clip base (except the side closest/parallel to the rail) with a 4mm throat thickness fillet weld.
  • Recommended Electrodes: Use low-hydrogen electrodes (AWS E7018 or E7028) for optimal weld strength.
  • Continuous Weld Option: If a full continuous weld around the base is needed, contact Glory Rail for customized guidance.

Tightening & Documentation

  • Tightening Torque: 125 Nm (for M16 Grade 8.8 captive bolt).
  • Full Instructions:  To get step-by-step installation documentation tailored to your project, reach out to our technical team directly—we’ll provide personalized guidance to ensure proper clip setup

CONTACT US FOR MORE DETAILS

Rail Compatibility of 9116 Welded Rail Clip

Rail TypeF (mm)C (mm)A (mm)Rail Weight (kg/m)Clip Ref. (with pad)Clip Ref. (without pad)
P 30107.9560.33107.9530.13116/13/36 (S)3116/13/36 (H)
P 381146813438.733116/13/36 (S)3116/13/36 (H)
P 431147014044.653116/13/36 (S)3116/13/36 (H)
JIS 371226312237.23116/13/36 (S)3116/13/36 (H)
JIS 401226414040.93116/13/36 (S)3116/13/36 (H)
ASCE 601086010829.83116/13/36 (S)3116/13/36 (H)
ASCE 801276412739.83116/13/36 (S)3116/13/36 (H)
ASCE 851326513242.33116/13/36 (S)3116/13/36 (H)
S 14703880143116/13/36 (S)3116/13/36 (H)
S 20824410019.83116/13/36 (S)3116/13/36 (H)
S 301086010830.033116/13/36 (S)3116/13/36 (H)
S 411256713841.43116/13/36 (S)3116/13/36 (H)
A 45125455522.13116/13/36 (S)3116/13/36 (H)
A 55150556531.83116/13/36 (S)3116/13/36 (H)
A 65175657543.13116/13/36 (S)3116/13/36 (H)
ISCOR 2295509522.373116/13/36 (S)3116/13/36 (H)
ISCOR 301105711030.153116/13/36 (S)3116/13/36 (H)
15kg/m BHP79437915.23116/13/36 (S)3116/13/36 (H)
22kg/m BHP94519422.33116/13/36 (S)3116/13/36 (H)
AFNOR 261005011025.63116/13/36 (S)3116/13/36 (H)
AFNOR 301065612630.23116/13/36 (S)3116/13/36 (H)

Why Choose Our 9116/08/37 Rail Clip?

9116/08/37 Rail Clip For Sale

Unmatched Proven Reliability

With a track record of successful deployments in the most demanding environments worldwide, our rail clips are engineered to perform under extreme conditions, year after year.

Tailored Anti-Corrosion Solutions

We offer customized surface treatments including hot-dip galvanizing, electro-zinc plating, epoxy coating, and other advanced finishes to match your environmental needs.

Extensive Ready-to-Ship Inventory

We maintain large quantities of stock to ensure fast delivery, minimizing downtime and keeping your projects on schedule without delay.

Comprehensive Technical Support

Our team of experts provides end-to-end assistance, from system design and installation guidance to long-term maintenance recommendations.
