43kg Rail
The 43kg rail is a premium-grade solution engineered for high-load railway and industrial applications, compliant with GB2585-2021 national standards. Constructed from U71Mn high-manganese steel, it delivers exceptional tensile strength (≥880MPa) and wear resistance, making it ideal for main railway lines, heavy freight corridors, and industrial crane systems. With a weight of 44.653kg/m and robust dimensions (140mm height x 114mm base), this rail ensures reliable performance under continuous heavy traffic and harsh environmental conditions.
Every rail delivered with traceable quality assurance

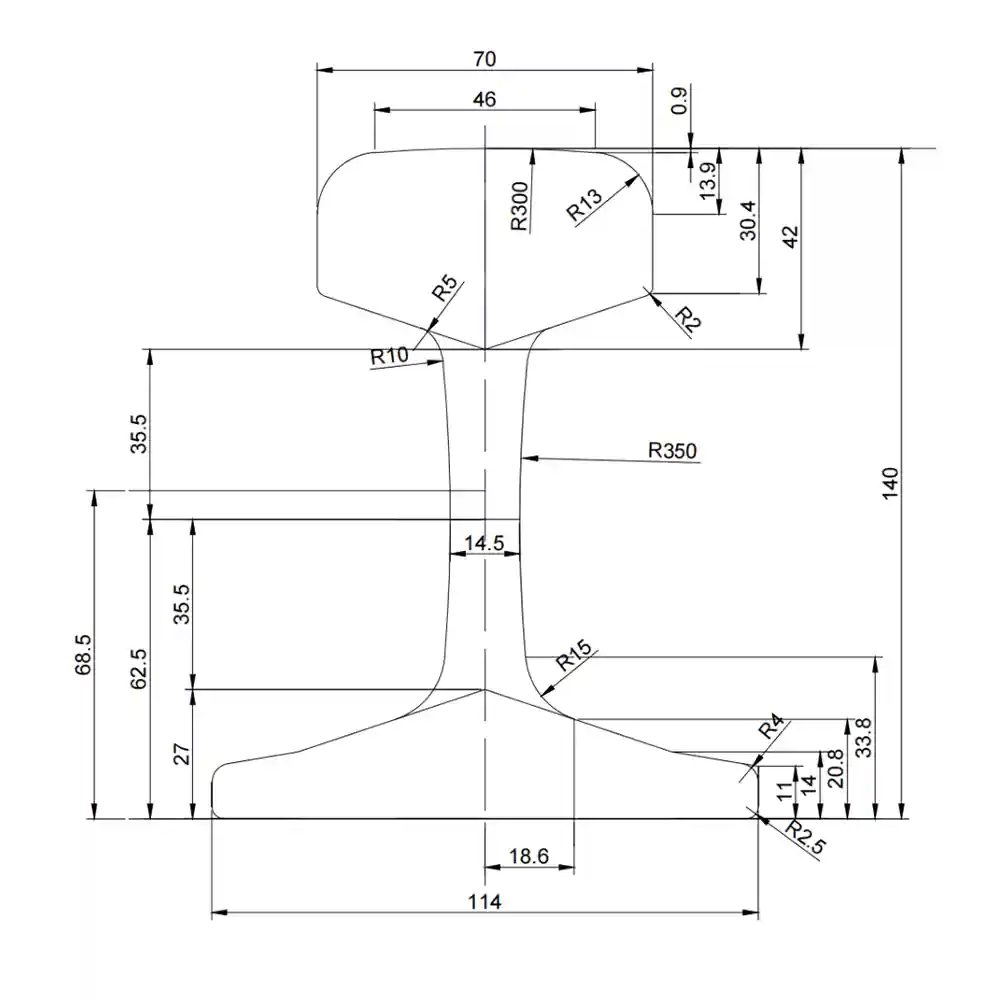

43kg Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | 43kg | Rail Type | Heavy Rail |
| Standard | GB2585-2001 | Material | U71Mn |
| Rail Height | 140 mm | Head Width | 70 mm |
| Bottom Width | 114 mm | Web Thickness | 14.5 mm |
| Weight | 44.653 kg/m | Length | 12.5 m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
43kg Rail Material Parameter
U71Mn high-manganese steel offers superior strength (tensile ≥880MPa) and abrasion resistance, meeting GB2585-2007 standards for heavy-duty rail applications.
| U71Mn | Mechanical Property | Chemical Composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| — | —- | ≥880 | — | 9% | 260 | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | |
Applications of 43kg Rail
Main Railway Lines
Heavy freight corridors and passenger transit main lines. High-speed railway maintenance tracks and depots.
Industrial Crane Systems
Overhead crane rails in steel mills, ports, and logistics hubs. Heavy-duty hoisting tracks for factory workshops.
Mining & Heavy Industry
Large-scale mine haulage tracks for ore and equipment transport. Industrial railway systems in quarries and energy facilities.
Specialized Transportation
Military and industrial special railway lines. Heavy machinery transport tracks in construction projects.
Advantages of Our 43kg Rail
GB Standard Compliance & Rapid Availability
Meets GB2585-2021 quality standards for railway projects, supported by regular inventory to ensure fast delivery within 10-20 days.
U71Mn High-Manganese Steel Performance
Offers tensile strength ≥880MPa and superior abrasion resistance, ideal for heavy loads up to 35 tons per axle in railways and cranes.
Custom Lengths for Diverse Layouts
Standard 12.5m lengths or custom-cut sizes available to minimize waste and fit curved tunnels, switch sections, or industrial track designs.
Precision Machining & Corrosion Solutions
Bevel cutting, punching, and weld preparation for seamless installation; optional heat treatment or anti-rust coatings for harsh environments.
Glory Rail Custom Processing Services
Glory Rail offers end-to-end solutions for heavy-industry projects:
- Variable Length Solutions
Tailor-cut rails (standard 12.5m or custom) to match project-specific track layouts. - Precision Machining
Angle cutting for curved track alignment, deep punching for heavy-duty fasteners, and weld preparation to ensure secure, durable connections. - Advanced Surface Treatments
Heat treatment to enhance rail head hardness or anti-rust coatings for corrosion protection in coastal, high-moisture, or industrial environments.
With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established GB specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.
Build a Complete Rail System
Get high-strength rails and essential components all in one place — simplified sourcing, superior quality.
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
UIC54 Rail
UIC-standard 54kg/m rail for secondary lines, durable and cost-effective.
UIC60 Rail
High-strength 60kg/m UIC rail for main lines, ideal for high-speed/heavy transport.
Rail System Integration Support
Technical support available for rail selection, fastening design, and installation planning for DIN 536 systems.
Secure Packaging, Global Delivery
Every shipment is handled with care, ensuring safe arrival and efficient unloading at your project site.
In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.
We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.
Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.
Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
