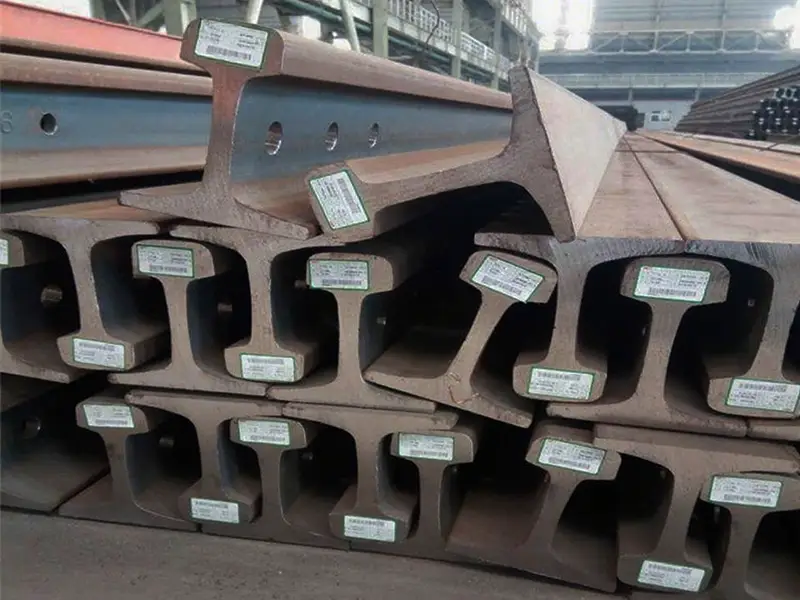

132RE Rail
The 132RE Rail is a premium heavy rail conforming to AREMA standards, specifically designed to excel in the most demanding heavy-haul applications. Also known as 132lb rail, this high-strength steel rail is engineered with a robust profile to withstand extreme loads and rigorous operational conditions. Manufactured from high-strength low alloy steel, intermediate steel, or carbon steel, it offers exceptional durability and reliability for critical infrastructure projects. Available in standard lengths or custom sizes upon request, the 132RE Rail is the ideal choice for mainline railways, industrial crane systems, and heavy-load transportation networks that require superior performance and minimal maintenance.
Every rail delivered with traceable quality assurance

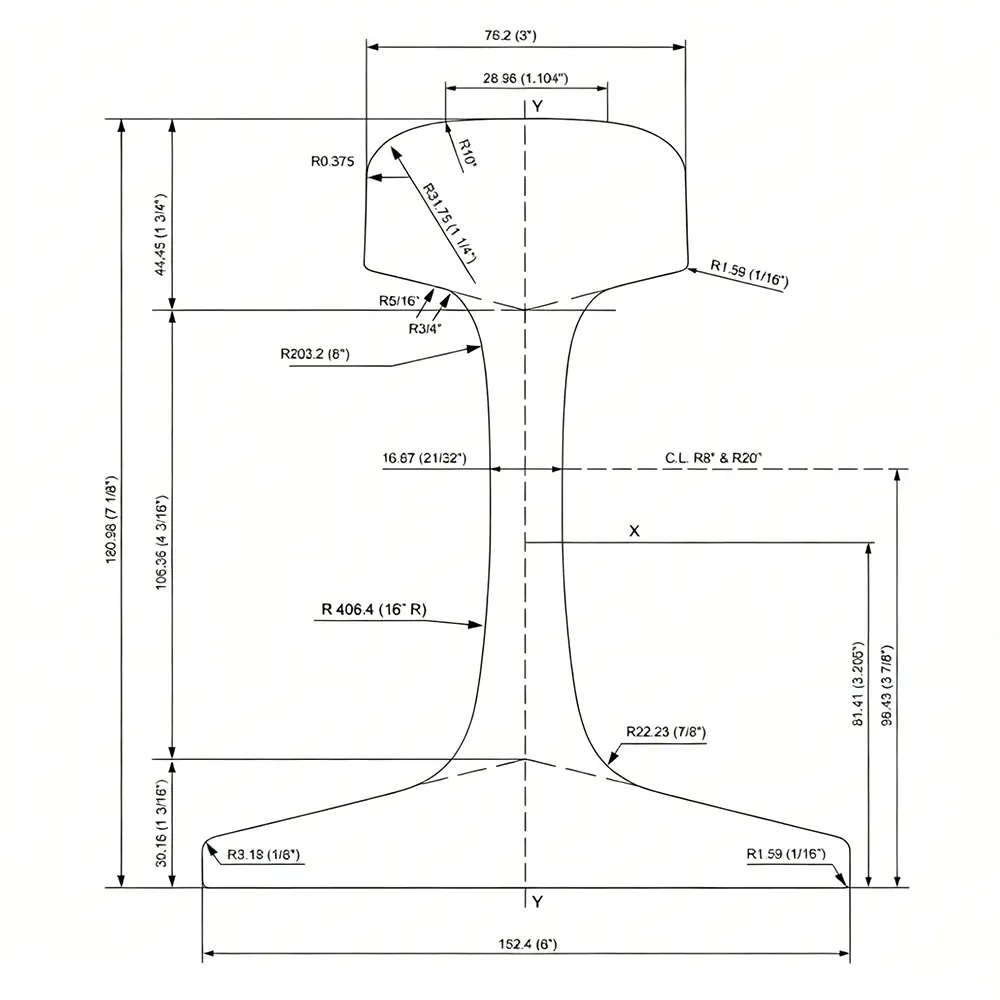

132RE Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | 132RE / 132LB | Rail Type | Transport Rail |
| Standard | AREMA 2019 | Material | HH, IH, SS |
| Rail Height | 180.90 mm | Head Width | 76.20 mm |
| Bottom Width | 152.40 mm | Web Thickness | 16.60 mm |
| Weight | 65.58 kg/m | Length | 12-25 m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
132RE Rail Material Parameter
The material composition and mechanical properties of 132lb rail are precision-engineered to balance extreme load-bearing capacity, wear resistance, and structural integrity, meeting AREMA’s rigorous standards for heavy rail infrastructure.
| Mechanical Property | |||||
| Specs | Steel Grade | Hardness | Tensile Strength | Yield Strength | Elongation |
| (grade shown on web) | HB | ksi | ksi | % | |
| AREMA | Standard Strength (SS) | ≥ 310 | ≥ 142.5 | ≥ 74.0 | ≥ 10 |
| AREMA | Standard Strength (LA) | ≥ 310 | ≥ 142.5 | ≥ 74.0 | ≥ 10 |
| (with Low Alloy Steel chemistry) | Intermediate Strength (IH) | ≥ 325 | ≥ 147.0 | ≥ 80.0 | ≥ 8 |
| (with Carbon Steel chemistry) | Intermediate Strength (IS) | ≥ 350 | ≥ 155.0 | ≥ 105.0 | ≥ 10 |
| High Strength / Head Hardened (HH) | ≥ 370 | ≥ 171.0 | ≥ 120.0 | ≥ 10 | |
| High Strength / Head Hardened (LH) | ≥ 370 | ≥ 171.0 | ≥ 120.0 | ≥ 10 | |
| Chemical Composition | ||||||||||
| AREMA 2019 | C | Mn | P | S | Si | Ni | Cr | Mb | V | Al |
| % | % | % | % | % | % | % | % | % | % | |
| Low Alloy Steel (for Std Strength) | 0.72 – 0.82 | 0.80 – 1.10 | ≤ 0.020 | ≤ 0.020 | 0.10 – 0.50 | ≤ 0.15 | 0.25 – 0.40 | ≤ 0.050 | ≤ 0.010 | ≤ 0.005 |
| Low Alloy Steel (for Int. & High Strength) | 0.72 – 0.82 | 0.70 – 1.25 | ≤ 0.020 | ≤ 0.020 | 0.10 – 1.00 | ≤ 0.15 | 0.40 – 0.70 | ≤ 0.050 | ≤ 0.010 | ≤ 0.005 |
| Carbon Steel | 0.74 – 0.86 | 0.75 – 1.25 | ≤ 0.020 | ≤ 0.020 | 0.10 – 0.60 | ≤ 0.25 | ≤ 0.30 | ≤ 0.060 | ≤ 0.010 | ≤ 0.010 |
132RE Rail Applications
132RE Rail’s robust design and high load-bearing capacity make it the preferred choice for critical infrastructure requiring unmatched reliability and longevity in heavy-haul environments.
Mining & Resource Transportation Tracks
Withstands rugged terrain and frequent heavy haulage in mining sites, delivering durable service in harsh conditions.
Industrial Crane & Gantry Systems
Ideal for heavy-duty cranes in ports, steel mills, and logistics hubs, ensuring smooth operation under constant heavy loads.
Mainline Heavy Freight Railways
Engineered to support high-tonnage freight trains on primary rail networks, minimizing track deformation and maintenance needs.
High-Speed Passenger Rail Networks
Meets the dynamic stress requirements of modern high-speed trains, effectively balancing safety, durability, and performance.
Advantages of Our 132 RE 132lb Rail
Superior Load-Bearing Capacity
Engineered with premium alloys to resist fatigue and deformation under extreme tonnage, exceeding industry standards.
Head Hardened Technology
High-strength variants offer enhanced surface durability, extending service life in high-wear environments.
Material Grade Versatility
Available in standard, intermediate, and high-strength alloys, tailored to specific load, environmental, and cost requirements.
Precision Engineering
Tight dimensional tolerances ensure seamless installation and minimal operational disruptions
132RE Rail Custom Processing Services
- Precision Length Cutting: Rails manufactured in 12m–25m standard lengths or custom-cut to exact specifications.
- Material Grade Selection: Expert guidance to choose high-strength low alloy, intermediate, or carbon steel based on load requirements.
- Advanced Surface Treatments: Options for head hardening, anti-corrosion coating, and heat treatment to enhance wear resistance.
- International Standard Compliance: Adaptation to regional engineering standards beyond AREMA, ensuring global project compatibility
With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established AREMA 2019 specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.
Reliable 132LB Rail Systems
Ensure consistent performance and structural integrity across your rail network.
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
Steel Soleplates
enhance railway durability by distributing loads, adjusting track alignment, damping vibrations.
Rail Pads
Reduce vibration and noise, distribute dynamic loads evenly, and prolong sleeper life.
Rail System Integration Support
Technical support available for rail selection, fastening design, and installation planning for AREMA rail systems.
Global Shipping & Logistics: Your Partner in Reliable 132RE Rail Delivery
In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.
We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.

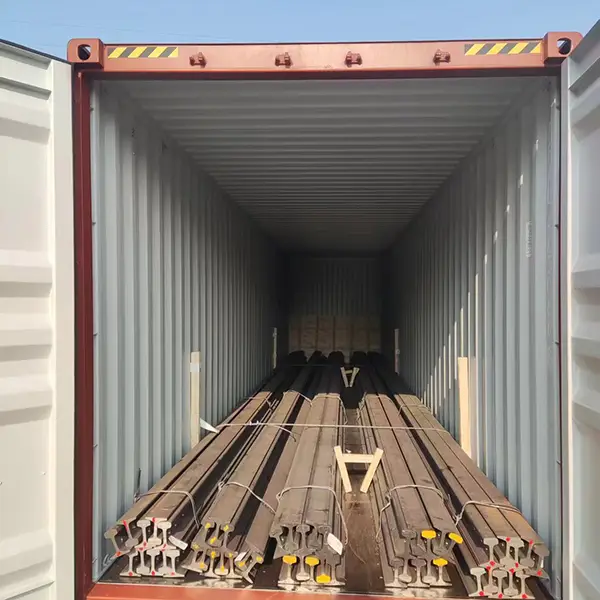

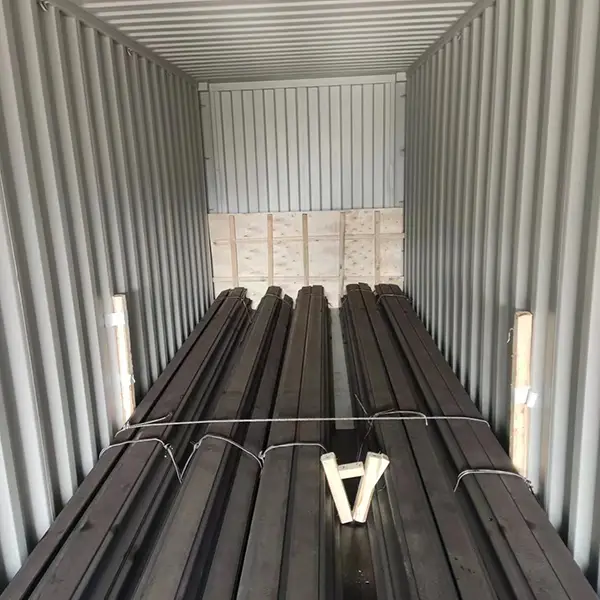

Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.
Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
