JIS 22kg Rail
JIS 22kg rail is a robust steel rail designed for light to medium-duty industrial applications. Manufactured from Q235 and 55Q steel and fully compliant with JIS E 1101-2001 standards, it offers an optimal balance of strength and versatility with a weight of 22.3 kg/m. Ideal for scenarios where lighter rails fall short, it provides consistent support for moderate loads—making it well-suited for mining transport systems, heavy-duty factory carts, and light crane operations.
Every rail delivered with traceable quality assurance

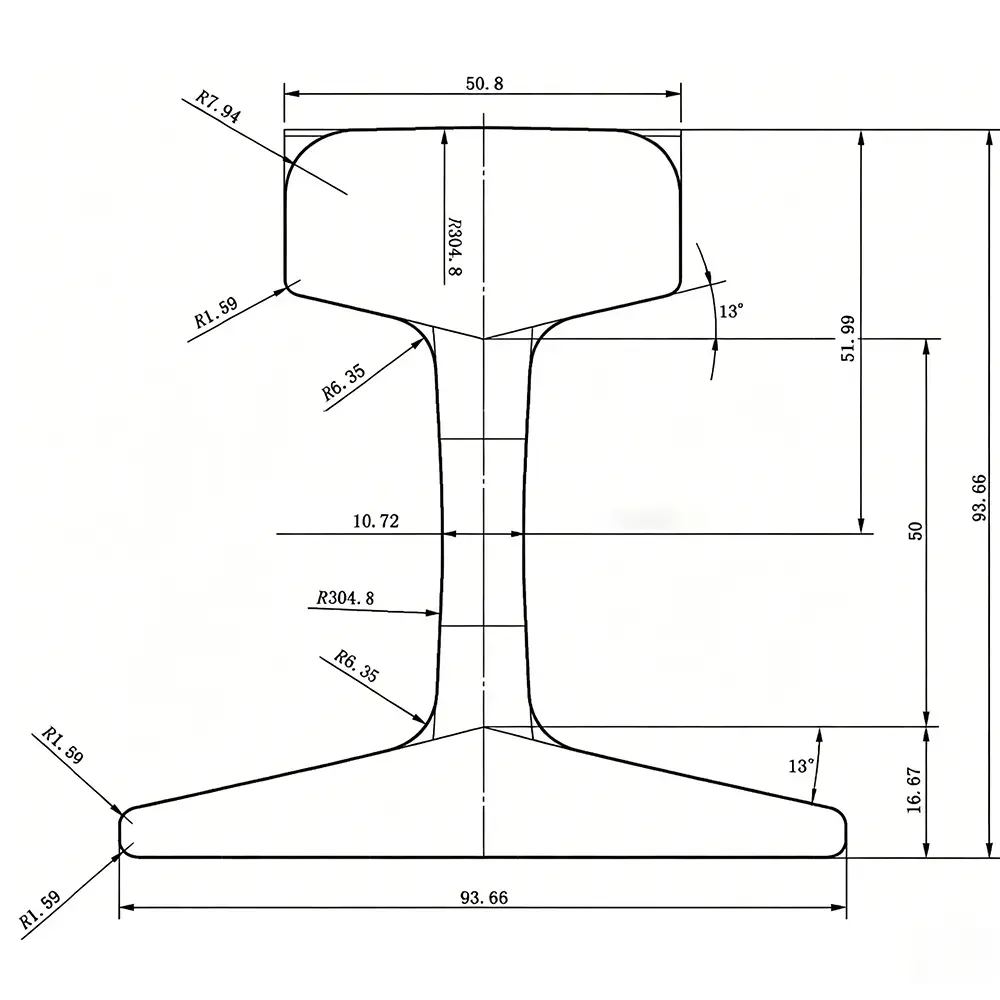

JIS 22KG Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | JIS 22kg | Rail Type | Light-duty Rail |
| Standard | JIS E 1101-2001 | Material | Q235B, 55Q |
| Rail Height | 93.66 mm | Head Width | 50.8 mm |
| Bottom Width | 93.66 mm | Web Thickness | 10.72 mm |
| Weight | 22.30 kg/m | Length | 6m, 8m,10m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
JIS 22kg Rail Material Strength
Q235 and 55Q steels provide the ideal mix of ductility and strength for JIS 22kg light steel rail’s light-to-medium duty role.
| Q235 | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
Where JIS 22kg Rail Adds Value
Tailored for light-to-medium duty scenarios, thriving in environments needing durability beyond basic light rail capabilities.
Underground Mining Transport
Supports mid-weight ore carts in narrow tunnels, delivering stability and durability under dusty and demanding conditions.
Warehouse Logistics Lines
Supports rail-guided pallet systems in warehouses, preventing sagging and ensuring efficiency in heavy-load operations.
Factory Equipment Handling
Ideal for guiding motorized carts carrying heavy components, ensuring stable movement in production and assembly zones.
Light Crane Track Systems
Provides stable rails for 5–8t overhead cranes, effectively resisting stress from frequent lifting and repeated operational cycles.
