WJK Rail Clips
WJK Rail Clips – Professional Railway Fastening Solution for Crane Rails and Railroad Track Applications.

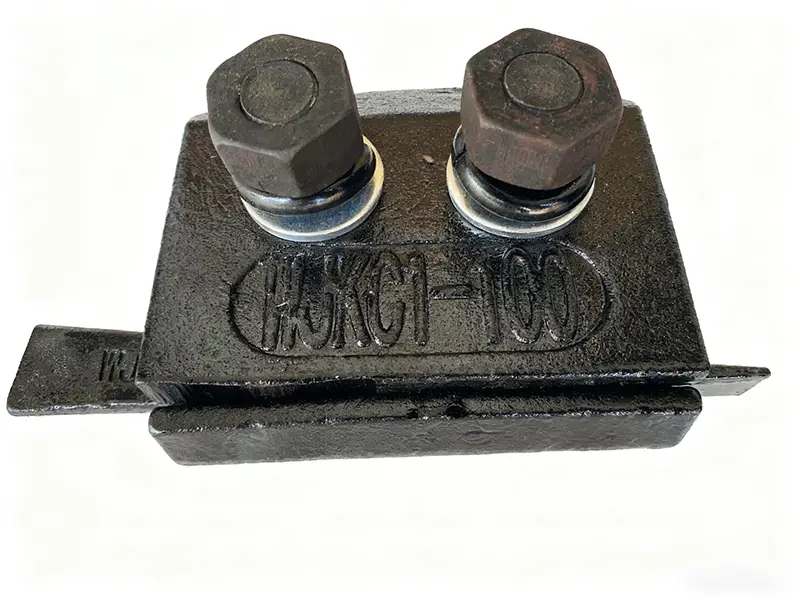

Product Overview
The WJK Rail Clip is a high-strength rail fastening device specifically designed for securing railway tracks. Manufactured with premium materials, it features adjustability, durability, and ease of installation.
Product Specifications
| Type | RAIL CLAMP / CLIP, Rail clamp / Rail clip |
|---|---|
| Material | Q235 / Q345 Steel |
| Dimensions (L x W x H) | Customizable to Customer Requirements |
| Place of Origin | Henan, China |
| Brand Name | Glory Rail |
| HS Code | 730240 |
| Usage | Railway Fastening System |
| Color | Customizable |

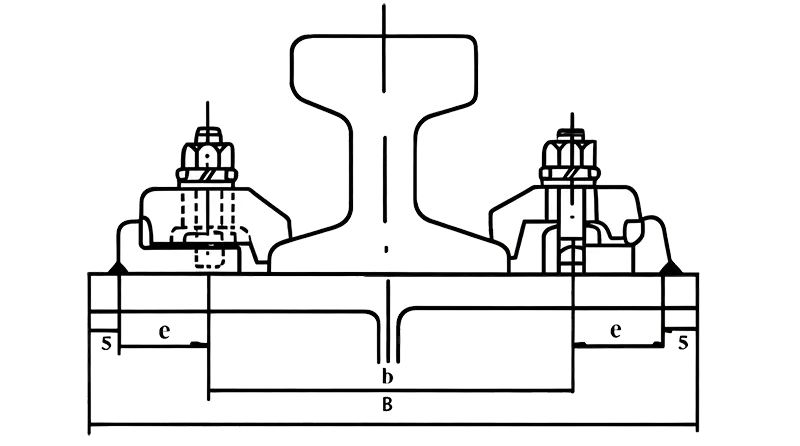

WJK Rail Clip Size Specifications
Technical data for various WJK rail clip models
| Type | b (mm) | 2e (mm) e=62 | 2S (mm) S=10(5) | B (mm) B=b+2e+2s |
|---|---|---|---|---|
| WJK-TG38 | 194 | 124 | 20(10) | 338(328) |
| WJK-TG43 | 194 | 124 | 20(10) | 338(328) |
| WJK-TG50 | 212 | 124 | 20(10) | 356(346) |
| WJK-TG60 | 230 | 124 | 20(10) | 374(364) |
| WJK-QU70 | 200 | 124 | 20(10) | 344(334) |
| WJK-QU80 | 210 | 124 | 20(10) | 354(344) |
| WJK-QU100 | 230 | 124 | 20(10) | 374(364) |
| WJK-QU120 | 250 | 124 | 20(10) | 394(384) |
Components of WJK Rail Clips
| No. | Component | Function |
|---|---|---|
| 1 | Fixed Base Plate | Provides foundational support for the entire system, ensuring stability and proper load distribution. |
| 2 | Shock Absorbing Plate | Reduces vibration and shock forces transferred from the rail to the supporting structure. |
| 3 | T-Bolt | Provides the main clamping force to ensure the rail is securely fastened. |
| 4 | Nut | Works with the T-bolt to create the necessary clamping force and allows for precise adjustment. |
| 5 | Spring Washer | Maintains constant tension to prevent the nut from loosening due to vibration. |
| 6 | Flat Washer | Evenly distributes the clamping force to prevent damage to components. |
| 7 | Adjusting Plate | Allows for precise adjustment of the rail position and clamping pressure. |
Key Features of WJK Rail Clips
Secure Mounting
WJK clamp base can be welded to the rail beam support with two or three sides, providing a secure fixing solution.
Spherical Hinge Connection
WJK clamp base and T-bolts with spherical hinges absorb rail and beam impacts, extending lifespan.
Adjustable Wedge Plate
Dual self-lock tightening mechanism prevents loosening during operation, ensuring long-term reliability.
Easy Maintenance
T-bolt and upper plate are easily disassembled and reassembled, facilitating installation and maintenance.
Perfect Fit
Upper plate of WJK clamp is designed to perfectly fit rail section curvature for optimal performance.
Customizable Installation
Installation spacing can be easily adjusted based on specific crane specifications and requirements.
Installation Instructions for WJK Rail Clips
For use of the WJK welded rail press: Steel plates need to be pre-embedded for foundation construction. The 3 sides of the base are welded to the pre-embedded steel plates. The upper cover is placed against the edge of the rail. Bolts and the shaft are adjusted to control pressure and tightness. Install one set on each side of the rail. The rail needs to be fixed with a pair of rail clamps every 600mm or 500mm.
Tightening Torque
- Q ≤ 275t: 150N.m
- Heavy duty cranes: 220N.m
Maximum side load: 45KN
Welding Requirements
- Rail clamp base is made of weldable grade steel Q345
- Use low hydrogen electrodes (Recommended: E4315, E5015)
- Two-side welding for A4-A5 medium duty cranes
- Three-side welding for A6-A7 (A8) heavy duty cranes
Installation Spacing
- Q ≤ 275t: 600mm spacing
- Q > 275t: 500mm spacing
