Light Rail Track Solutions for Scenic Railways
Project Overview
In a rising tourism destination in the Middle East, the developer planned a scenic train line using a light rail track system.
The goal was to offer visitors a quiet, smooth, and stable ride through diverse landscapes and cultural features.
A customized light rail track solution was essential to ensure safe operation and enhance the overall visitor experience.
Client Challenges
- Ride Experience:
The light rail track system had to deliver low noise and smooth travel. It needed to reduce vibration and keep a comfortable, pleasant atmosphere across the scenic area. - Extreme Climate:
The region faces high temperatures and frequent sandstorms. Coastal sections also suffer from salt and humidity. The tracks required strong heat resistance, wear resistance, and corrosion protection. - Complex Terrain:
The route crossed flat land, dunes, slopes, and sharp curves. As a result, the track system needed high adaptability and firm stability. - Landscape Integration:
The design had to blend with natural scenery. However, it could not disturb the overall aesthetic value of the park. - Future Expansion:
The track layout needed flexibility for future extensions. Thus, it required reserved interfaces for later upgrades and expansion.
Rail Selection
When planning this project, the choice of rail type needs to take several factors into account—train load, route length, number of curves, terrain changes, and long-term maintenance costs. Based on the operating features of sightseeing trains, we evaluated the suitability of both light rail and heavy rail for different sections of the line.
Light Rail as the Primary Option
For most scenic railway projects, light rail tracks are the standard choice for sightseeing trains. This project will also adopt light rail as the main track type, using several commonly applied profiles such as 15kg, 22kg, 24kg, and 30kg rails.
Light rail offers several advantages:
Lightweight and easy to install: ideal for scenic areas where construction conditions vary and the route is not perfectly uniform.
Lower cost and simpler maintenance: helping reduce both initial investment and long-term upkeep.
Great flexibility: especially suitable for routes with frequent curves and a high degree of alignment freedom.
With these benefits, light rail fully meets the operating needs of most sightseeing trains and naturally becomes the preferred choice for this project.
Heavy Rail for Key Sections Requiring Extra Stability
Although light rail works well for the majority of the route, certain segments—such as steep slopes, tight curves, or areas with slightly higher load—require rails with greater strength. For these portions, we plan to use 38kg or 43kg heavy rail.
Heavy rail provides:
Higher load-bearing capacity: suitable for heavier vehicles or higher-frequency operation.
Better structural stability: ensuring safe performance in slopes, sharp curves, bridge sections, or complex terrain.
Longer service life: reducing maintenance needs in high-stress areas.
In mountain areas or routes with significant elevation changes, heavy rail can greatly improve overall system reliability. For this reason, the project will combine light rail and heavy rail where appropriate to balance performance, durability, and cost.
Our Solution

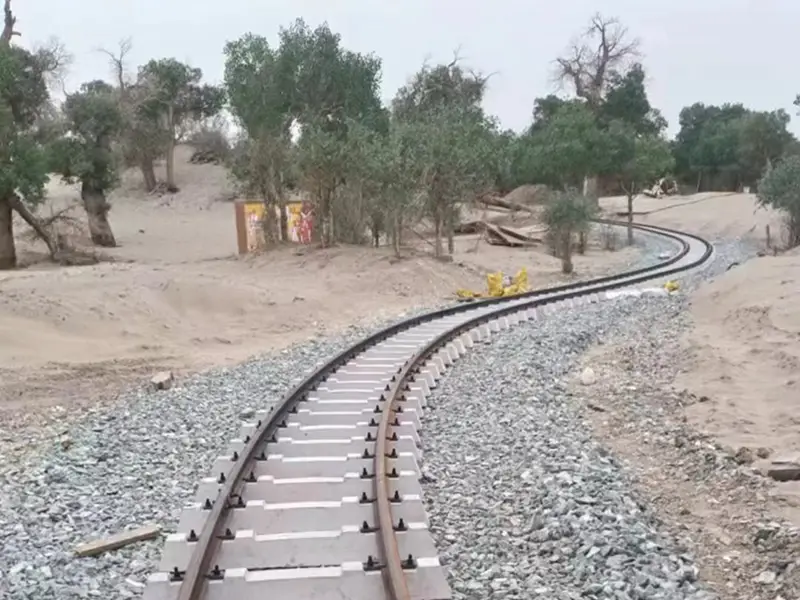

For this project, we supply a complete light rail track system, not just rail products. Our goal is to ensure safe, smooth, and quiet operation under complex terrain and harsh weather.
1. Rail Supply
We offer both light rail and heavy rail, covering 15kg, 22kg, 24kg, 30kg, 38kg, and 43kg models. This allows different sections of the route to balance performance and cost.
Matched clip systems—welded or bolted—keep the track firmly in place and reduce vibration. Compatible with steel beams, concrete bases, or sleepers.
3. Rubber Pads
Rubber pads lower noise, absorb shock, and protect the foundation—ideal for scenic railways.
4. Bolt Sets
High-strength bolts, nuts, and washers ensure long-lasting fastening under continuous operation.

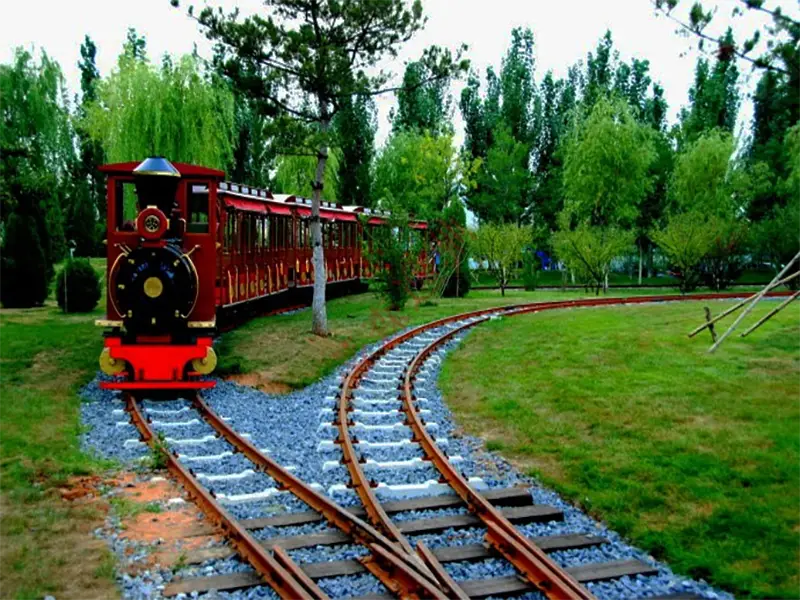

5. Turnouts
Customized No. 6 / No. 9 / No. 12 turnouts, designed to fit the selected light or heavy rail.
6. Custom Curved Rails
We provide pre-bent rails and large- or tight-radius curves to match complex terrain.
Anti-rust oil, painting, or hot-dip galvanizing help the system withstand heat, sand, and salt.
Results & Benefits
After the project was completed, the sightseeing train line began operating smoothly and reliably. The track system performed well under daily operations and brought several clear benefits:
Smooth and stable operation:
The combination of light and heavy rail helped the train stay steady through curves, slopes, and transition areas.Lower noise levels:
Rubber pads and accurate installation reduced vibration, making the ride quieter and more comfortable for visitors.Better visual integration:
The customized rails and optimized layout blended naturally with the landscape and improved the overall look of the scenic area.Faster installation:
Pre-bent rails and a full system supply shortened on-site work and helped the team finish the construction more efficiently.Improved visitor experience:
The smoother ride and cleaner route design made the sightseeing journey more enjoyable.Higher transport capacity:
The new line now supports a larger flow of visitors, with overall capacity increasing by roughly 20%–30%.
Why Work With Us
Clients choose to work with us because we bring reliable capabilities and real project experience to scenic railway projects:
Complete rail system supply
We don’t just sell rails. We provide clips, rubber pads, bolts, turnouts, corrosion protection, and a full set of system components.Wide rail range and ready stock
From 15kg to 43kg, we can supply nearly all light and heavy rail models required for scenic trains.Proven experience in scenic railway projects
We have delivered multiple projects across the Middle East, Southeast Asia, and domestic cultural tourism sites, giving us a strong understanding of what scenic railways require.
