TG38 Rail Clamp – Heavy-Duty Rail Fastener
TG38 Rail Clamp is a high-strength fastening solution made from Q235/Q345 cast steel, ensuring safety and durability in heavy-duty rail systems.
Product Overview

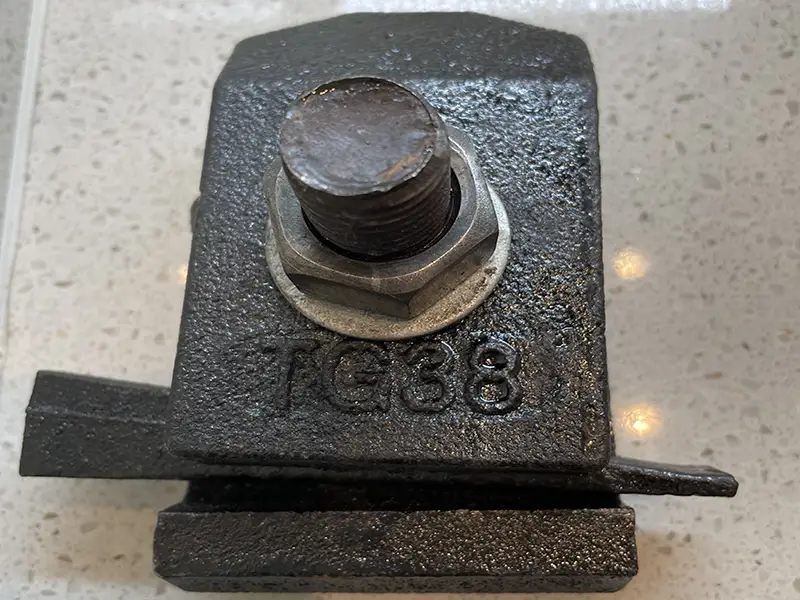

The TG38 Rail Clamp (also called SWJK-TG38) is a heavy-duty orbit-welded clamp designed to secure P38 crane rails. Manufactured by Glory Rail in China, this clamp comprises a base, press plate, adjusting plate, and high-strength bolts. It is ideal for fastening and fixing crane rails, stackers, reclaimers, coke pushers, and similar track-based equipment.
Built with Q235/Q345 cast steel, the TG38 Rail Clamp provides excellent lateral load capacity and long service life. Its reliable performance makes it suitable for demanding industrial environments, ensuring rail stability and safe crane operation even under heavy impact and continuous use.
Materials & Construction
High-Quality Cast Steel – The TG38 Rail Clamp is produced with Q235 or Q345 cast steel, providing excellent strength, toughness, and long service life.
Precision Casting Standard – Surface roughness reaches CT6 tolerance grade under 6414-86M casting size standard, ensuring accurate dimensions and a secure fit on crane rails.
Matching T-Bolts – T-bolts are selected according to the base material: Grade C for Q235 bases and Grade 8.8 for Q345 bases, delivering dependable fastening strength.
Hardened Washers – Steel washers with a hardness of about 100 HV are included in the assembly to enhance load distribution and improve long-term reliability.
Key Specifications of TG38 Rail Clamp
| Item | Details |
|---|---|
| Type | Rail Clamp / Rail Clip (Welded Fixing Type) |
| Applicable Rail | 38kg/m lifting rail |
| Material | Track pressure plate, base & wedge plate: Q235/Q345 cast steel |
| Matching Bolts | 8.8 grade (for Q345 base); Grade C (for Q235 base) |
| Washer Performance | 100HV steel washer |
| Package Weight | 1.4kg |
| Surface Tolerance | Complies with GB/T 6414-86M “Casting Size Tolerance” (CT6 level) |
| Origin | Henan, China |
| Brand | Glory Rail |
| HS Code | 730240 |
- Overhead Cranes – Provides secure fastening of P38 rails for overhead crane systems, ensuring smooth travel and stable lifting operations.
- Gantry Cranes – Used on heavy-duty gantry cranes to handle high lateral loads and maintain rail alignment under continuous operation.
- Stackers & Reclaimers – Essential for bulk material handling equipment, helping maintain track stability in ports, steel mills, and power plants.
- Coke Pushers & Coke Blockers – Designed to withstand extreme heat and heavy impacts in coke oven applications, guaranteeing reliable rail clamping.
- Ground Transport Tracks – Suitable for industrial rail systems that support transport trolleys, wagons, and heavy machinery in manufacturing plants.
- Heavy Machinery Rails – Provides long-term fastening for specialized track systems where equipment requires precise rail alignment and stability.

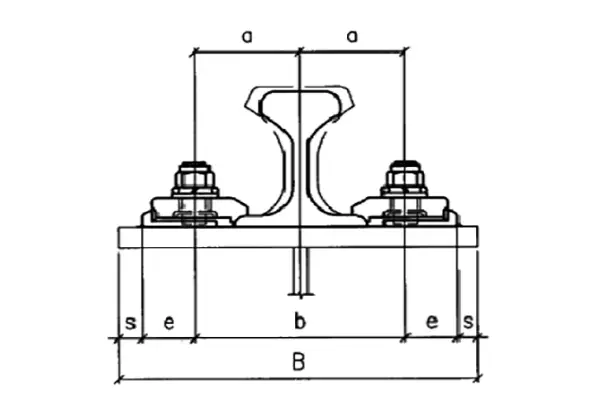

Installation Guidelines
Installation Requirements
The crane steel beam must meet national steel structure engineering standards.
Surface painting of crane beam should be completed before clamp installation.
Rail joints must be properly aligned and deviations corrected.
Assembly Sequence

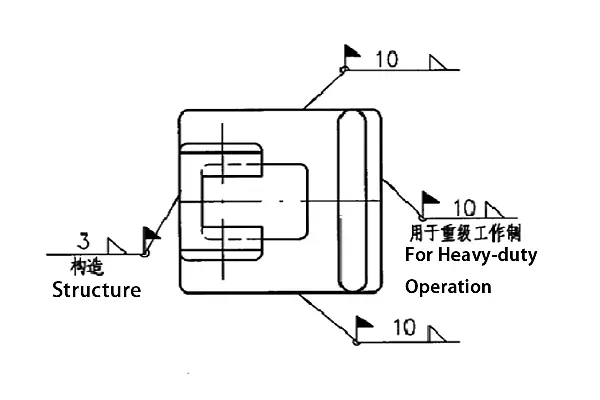

Weld and fix the base (ensure correct position; deviation from the beam centerline ≤ ±1.0 mm).
Insert T-bolts.
Position adjusting plate (wedge-shaped, with notched surface upward).
Install press plate, washer, spring washer, and nut.
Adjust clamp laterally to tightly clamp the rail’s lower flange, then torque the nuts.
Key Features & Advantages of TG38 Rail Clamp
WHY CHOOSE OUR TG38 CLAMP?
High Strength Design
The TG38 Rail Clamp is engineered for heavy-duty applications, providing secure fastening even under extreme loads and harsh conditions.
Adjustable Tension
Features an adjustable wedge plate that allows for precise tension control, thereby ensuring optimal rail fastening throughout the system's lifespan.
Easy Installation
Simple installation process with minimal tools required. The T-bolt and upper plate are easily disassembled and reassembled for maintenance.
Vibration Damping
Special shock-absorbing design effectively minimizes vibration transmission to the supporting structure, significantly extending service life.
Durable Construction
Manufactured from high-quality materials with advanced corrosion-resistant treatments for reliable long-term performance in demanding environments.
Versatile Applications
Suitable for various rail profiles and applications, including heavy crane rails, industrial tracks, and specialized railway systems.
Contact Us for TG38 Rail Clamp
Get a quote or request more information about our TG38 Rail Clamp.
Custom specifications available upon request.
Large stock available for quick delivery.
