9kg Rail
The 9kg light steel rail is a robust and versatile solution designed for light-duty industrial rail applications. Manufactured to the rigorous GB/T 11264-2025 national standard, this rail is constructed from Q235 low-carbon steel, offering a balanced combination of strength, ductility, and cost-efficiency. With a weight
of 8.94kg per meter and dimensions optimized for stability (63.5mm height x 63.5mm base), it excels in factory internal logistics, mine tunnel pathways, and auxiliary transport systems where durability and easy installation are critical.
Every rail delivered with traceable quality assurance

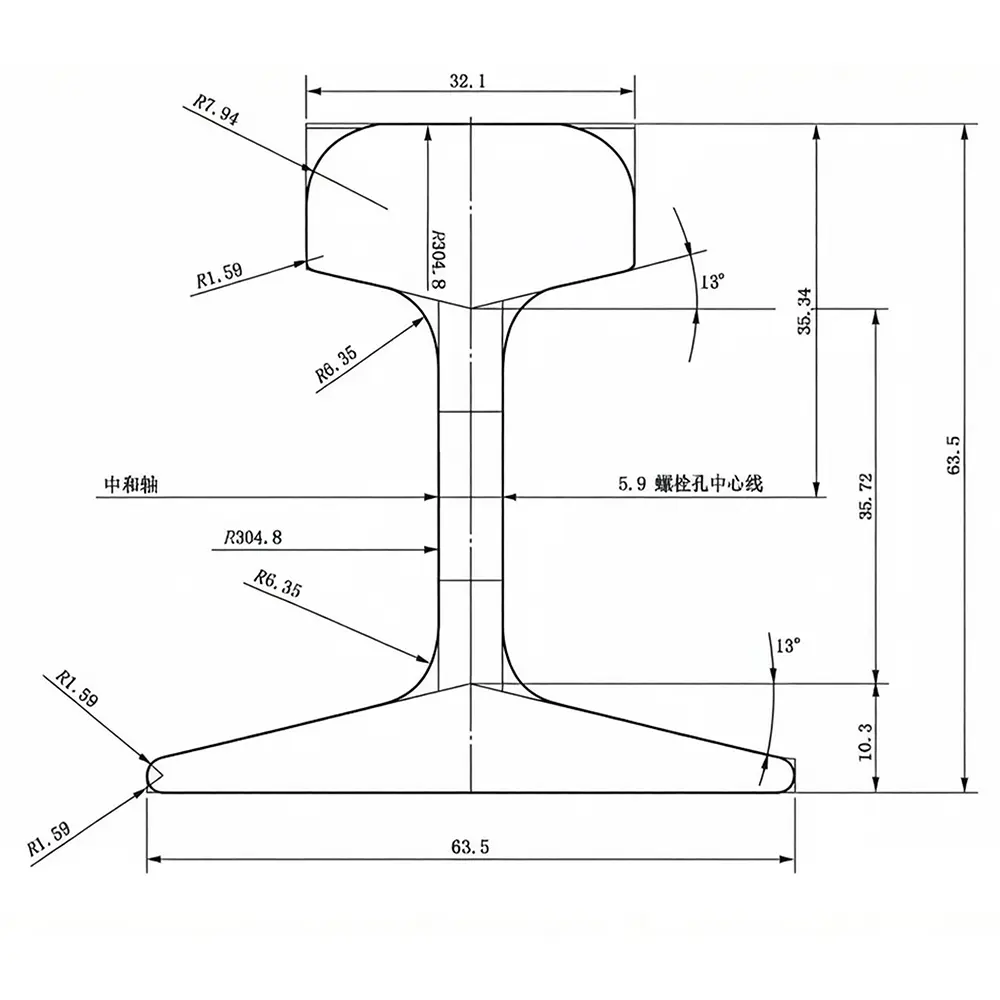

9KG Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | 9kg | Rail Type | Light-duty Rail |
| Standard | GB/T 11264-2025 | Material | Q235B |
| Rail Height | 63.50 mm | Head Width | 32.10 mm |
| Bottom Width | 63.50 mm | Web Thickness | 5.90 mm |
| Weight | 8.94 kg/m | Length | 6m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
9kg Rail Material Strength
Q235 low-carbon steel provides reliable mechanical properties (yield strength ≥235MPa) with excellent formability and impact resistance, making it suitable for diverse industrial applications compliant with GB standards.
| Q235 | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
Applications of 9kg Rail
Factory & Warehouse Logistics
Ground tracks for internal material transport in manufacturing facilities. Assembly line rail systems for equipment movement and production flow.
Mining & Tunnel Operations
Light-duty haulage tracks in small-scale mines and tunnel construction projects. Access pathways for maintenance vehicles in underground environments.
Light Industrial & Agricultural Settings
Auxiliary tracks for warehouse cranes and lifting equipment. Temporary rail systems for agricultural machinery in rural operations.
Low-Speed Transport Systems
Feeder tracks for light rail vehicles in industrial complexes. Maintenance lines for rail depots and transit hubs.
Advantages of Our 9kg Rail
GB Compliance & Rapid Availability

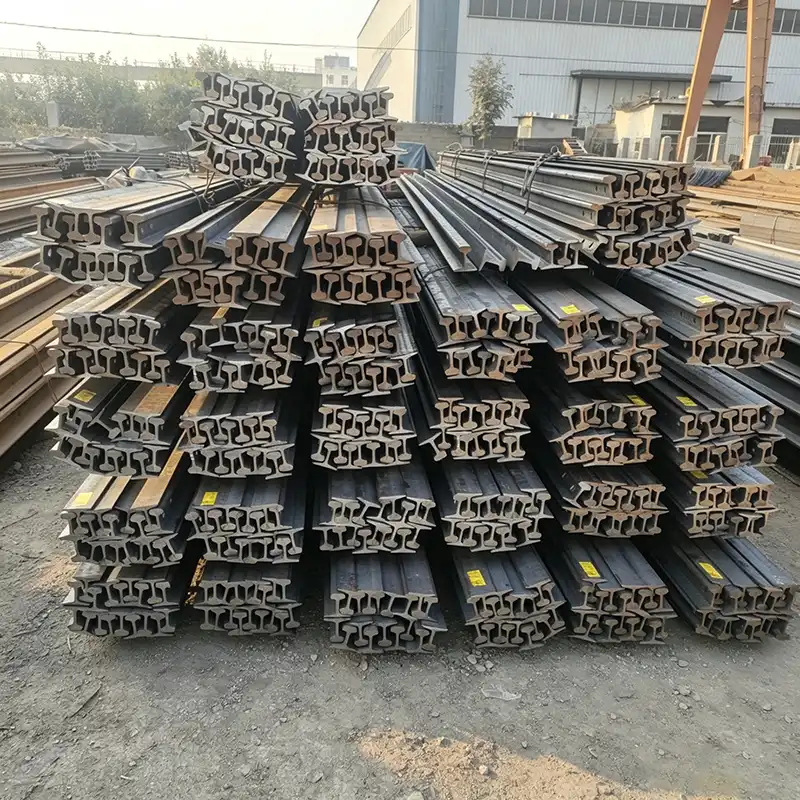

Meets GB/T 11264-2025 standards for consistent quality, supported by regular inventory to enable quick delivery and minimize project delays.
Durable Low-Carbon Steel Performance
Constructed from Q235 low-carbon steel (yield strength ≥235MPa), it offers reliable wear resistance and impact tolerance for long-term use in factory floors, mine tunnels, and logistics systems.
Custom Machining & Corrosion Solutions
Tailor-cut lengths and precision services (angle cutting, punching) ensure seamless track integration, while optional galvanization or anti-rust coatings enhance durability in harsh environments like coastal sites or wet mines.
Lightweight Design & Cost Efficiency
At 8.94kg/m, its portable structure reduces installation labor costs by 30%+ compared to heavier rails, while balanced performance-to-cost ratio suits budget-sensitive temporary or auxiliary track projects.
9kg Rail Custom Processing Services
Variable Length Cutting
Standard 6m rails or custom lengths precision-cut to your project requirements.
Precision Machining
1)Angle Cutting: Beveled or mitered rail ends for curved track alignment or switch installations.
2)Punching & Drilling: Pre-drilled holes for rail clips, bolts, or structural attachments.
Surface Treatment Options
Hot-dip galvanization for long-term corrosion protection. Anti-rust painting for cost-effective moisture resistance.
With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established GB specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.
9kg Rail System Solutions
Built to secure, connect, and protect every element of your rail network.
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
Rail Pads
Reduce vibration and noise, distribute dynamic loads evenly, and prolong sleeper life
Steel Soleplate
enhance railway durability by distributing loads, adjusting track alignment, damping vibrations.
Rail System Integration Support
Technical support available for rail selection, fastening design, and installation planning for mining rail systems.
Global Shipping & Logistics: Your Partner in Reliable 9kg Rail Delivery
In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.
We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.

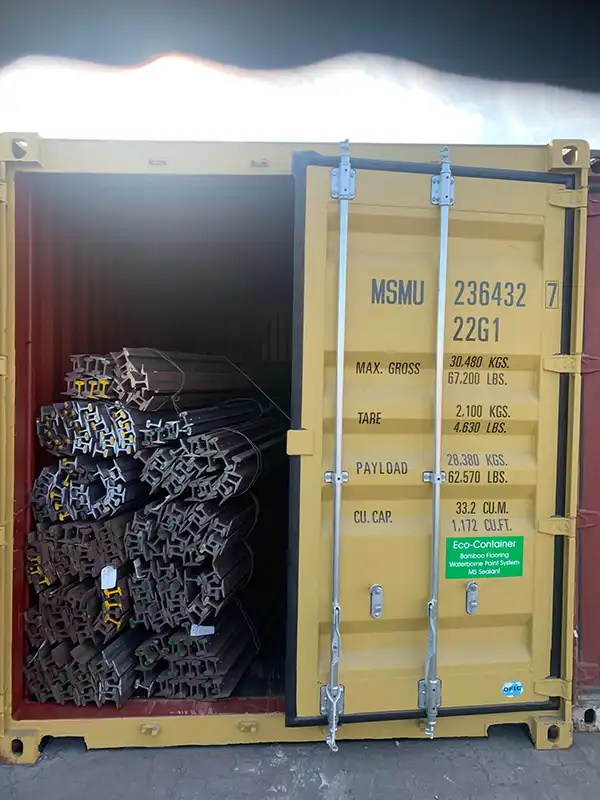

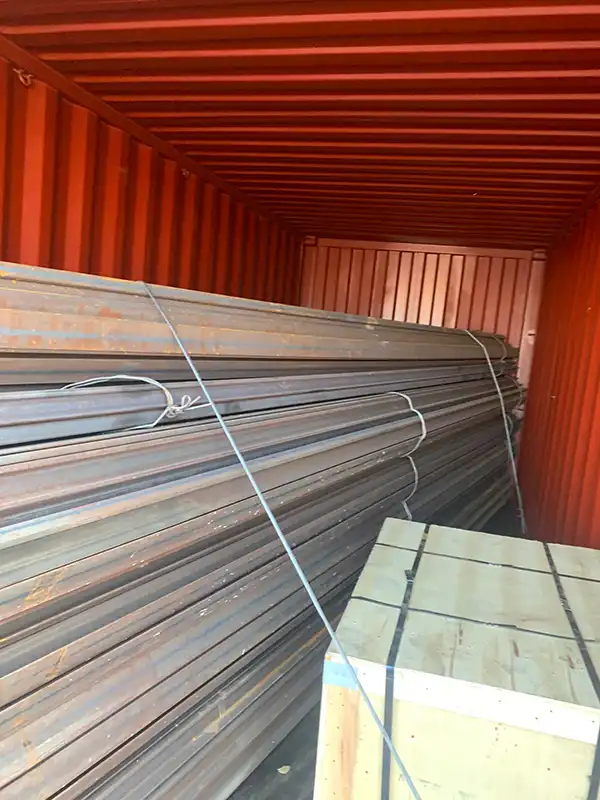

Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.
Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
