ASCE Rail
ASCE Rail, a North American standardized steel rail compliant with ASTM A1, is made of high-carbon steel for superior strength, wear, and impact resistance. Designed for heavy-haul needs, its uniform profile ensures global railway compatibility. Widely used in heavy freight lines, industrial spurs, switch zones, port terminals, and mining networks, it withstands frequent axle loads and harsh conditions.
Type: Light Rail Material: 55Q/U71Mn Standard: ASTM/AREMA Certification: ISO CE
Key Features & Technical Advantages
1.Superior Material Composition
Constructed from high-carbon steel alloys (55Q or U71Mn), ASCE Rails exhibit:
- High tensile strength (up to 880 MPa for U71Mn)
- Enhanced resistance to surface abrasion and fatigue cracks
- Exceptional impact absorption capabilities, reducing maintenance costs over lifecycle.
2.Environmental Resilience
ASCE Rail performs reliably in diverse conditions:
- Arctic environments with specialized low-temperature treatments
- Coastal applications featuring advanced corrosion protection
- Tropical climates with enhanced oxidation resistance
Primary Applications
ASCE rails are widely used in heavy-duty rail systems, providing strength, durability, and adaptability across freight, industrial, and transit infrastructures.
✅Heavy-Haul Freight Networks
Built to carry large volumes of cargo over long distances, ASCE rails support mainline operations for coal, iron ore, intermodal freight, and bulk logistics.
✅Industrial & Mining Spurs
Ideal for internal rail systems in steel plants, quarries, and mining zones, offering strong performance under heavy loads and constant operational cycles.
✅ Port Terminal Rail Systems
Engineered to handle high-impact crane movements, frequent cargo shifts, and resist saltwater corrosion in coastal or maritime terminal conditions.
✅Urban Transit & Switch Areas
Provides stability and precision in yard switches, turnouts, and urban transit zones where trains require controlled movement and frequent direction changes.
Customization Services
- Tailored Specifications: Modify rail profiles, lengths, or steel grades (55Q/U71Mn) to suit project-specific requirements.
- Specialized Treatments: Anti-corrosion coatings, low-temperature hardening, or wear-resistant surface enhancements.
- Rapid Prototyping: Technical support for unique applications like mining tunnels or coastal transit systems.
- Tailored Specifications: Modify rail profiles, lengths, or steel grades (55Q/U71Mn) to suit project-specific requirements.
Technical Specifications
Below are the detailed specifications for ASCE Rail, including sizes from ASCE25 to ASCE85:
| Size | Rail height(mm)A | Bottom Width(mm)F | Head Width(mm)C | Web Thickness(mm)t | Steel Grade | Weight(kg/m) |
| ASCE25 | 69.85 | 69.85 | 38.1 | 7.54 | 55Q | 12.2 |
| ASCE30 | 79.37 | 79.37 | 42.86 | 8.33 | 55Q | 15.2 |

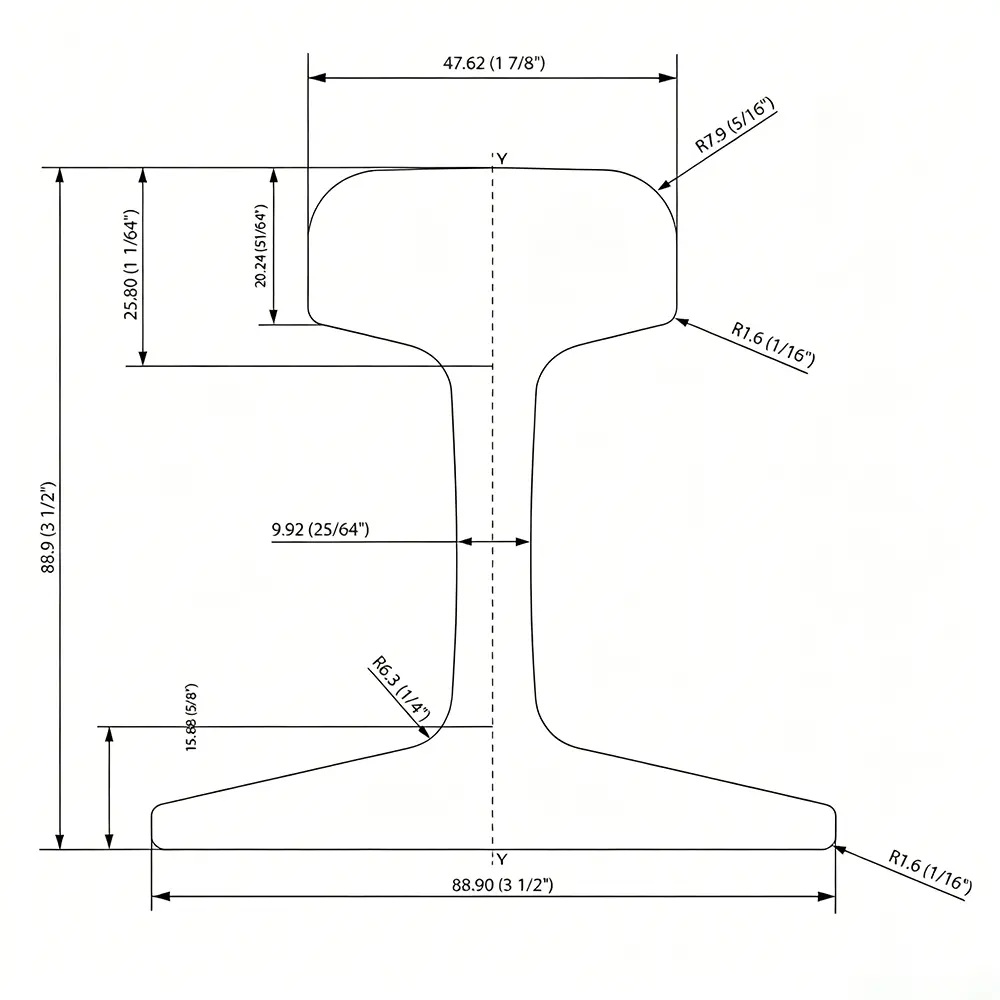

| ASCE40 | 88.9 | 88.9 | 47.6 | 9.90 | 55Q | 19.84 |
| ASCE50 | 98.43 | 98.43 | 54.00 | 11.11 | 55Q | 24.855 |
| ASCE60 | 107.95 | 107.95 | 60.33 | 12.3 | 55Q | 30.1 |
| ASCE70 | 117.48 | 117.48 | 61.91 | 13.1 | 55Q | 34.5 |

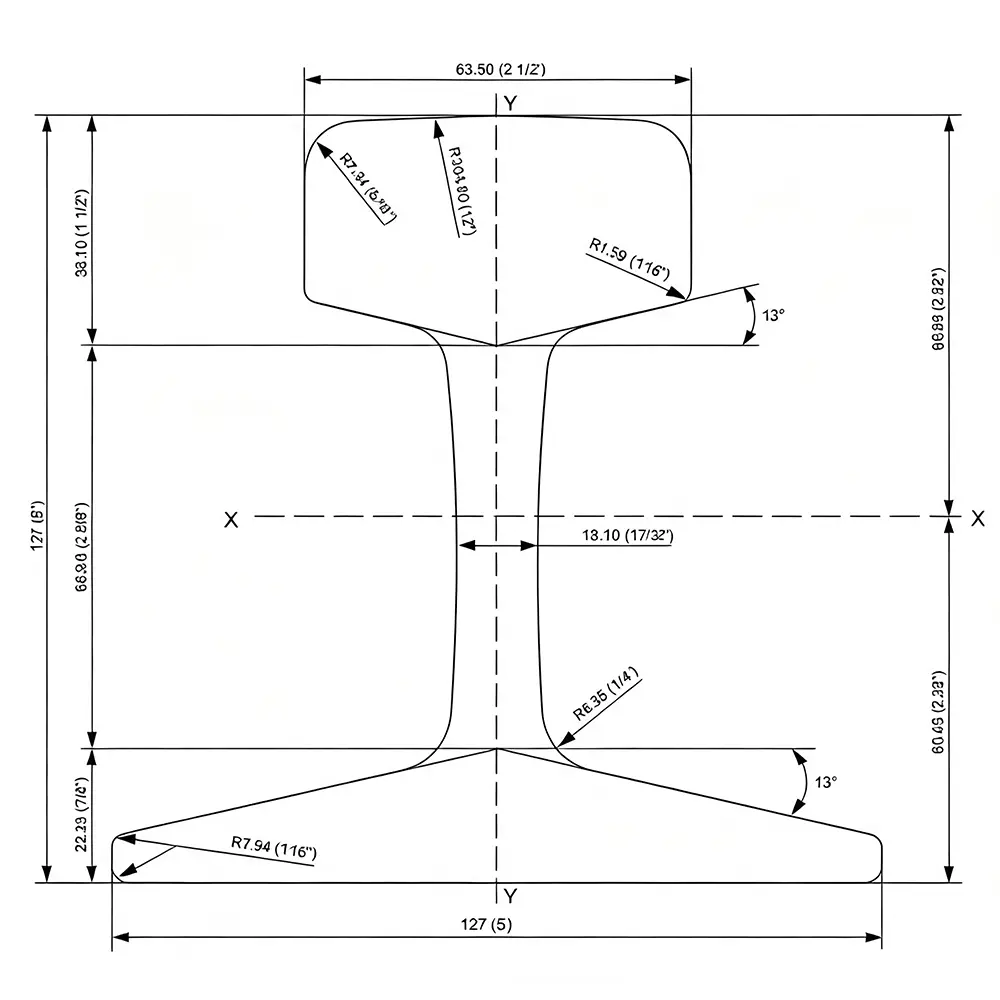

| ASCE80 | 127.00 | 127.00 | 63.50 | 13.89 | U71Mn | 39.82 |

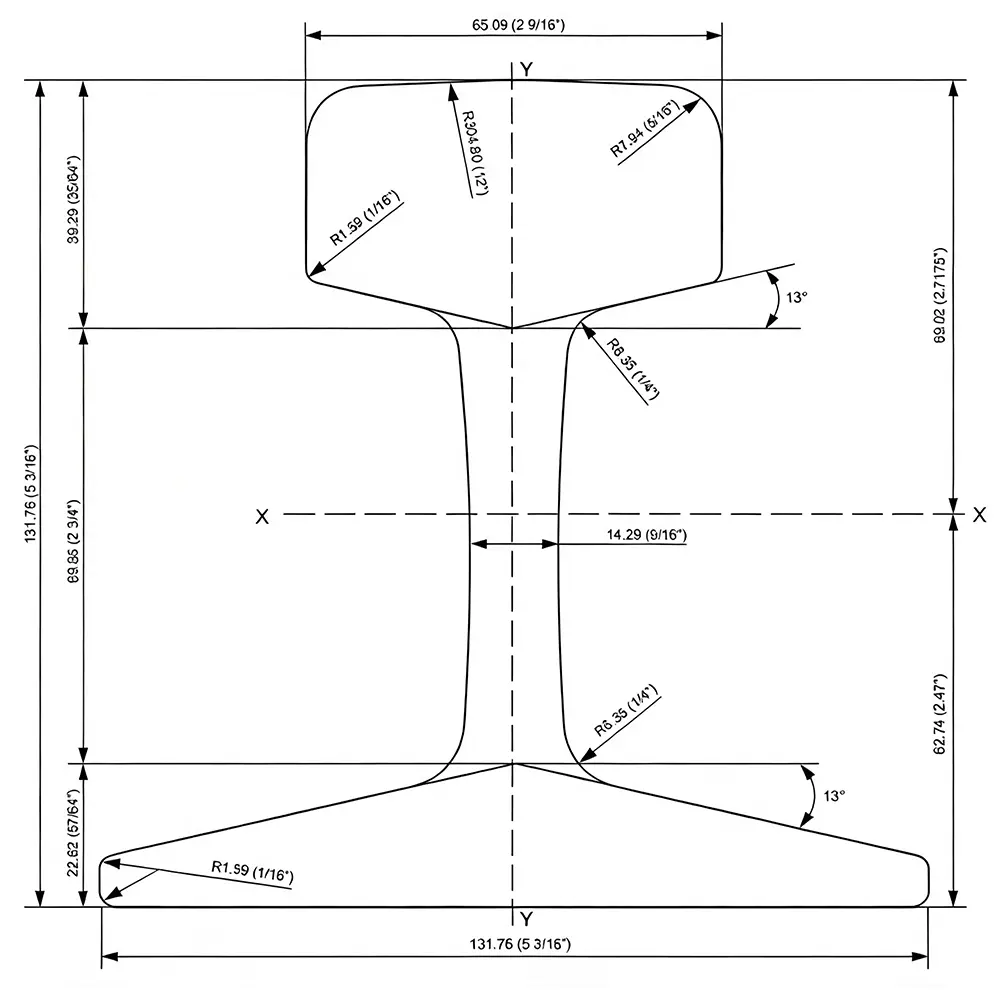

| ASCE85 | 131.76 | 131.76 | 65.09 | 14.29 | U71Mn | 42.3 |
If you are seeking other types of railroad track for sale, the professional team at Glory Rail is ready to assist you. Please feel free to contact us at any time.
Why Choose Glory Rail?
- Quality Assurance: ASTM A1-compliant ASCE Rails tested for tensile strength (up to 880 MPa), dimensions, and material consistency.
- Expertise: Decades of North American rail system experience; tailored profile selection for freight, mining, and transit.
- Global Delivery: Efficient logistics to North America, Europe, and APAC, with 24/7 support.
- Sustainability: Recyclable high-carbon steel alloys reducing environmental impact in harsh conditions.
