15kg Rail

The 15kg light steel rail is a versatile solution engineered for medium-to-heavy-duty industrial applications. Available in two premium materials—Q235 low-carbon steel for general durability and 55Q high-carbon steel for enhanced strength—it complies with GB/T 11264-2025 standards. With a weight of 15.2kg/m and robust dimensions (79.37mm height/base), this rail excels in high-traffic environments like brick factories, coal mining sites, and logistics hubs, offering a balance of cost-efficiency and load-bearing capacity.

Every rail delivered with traceable quality assurance

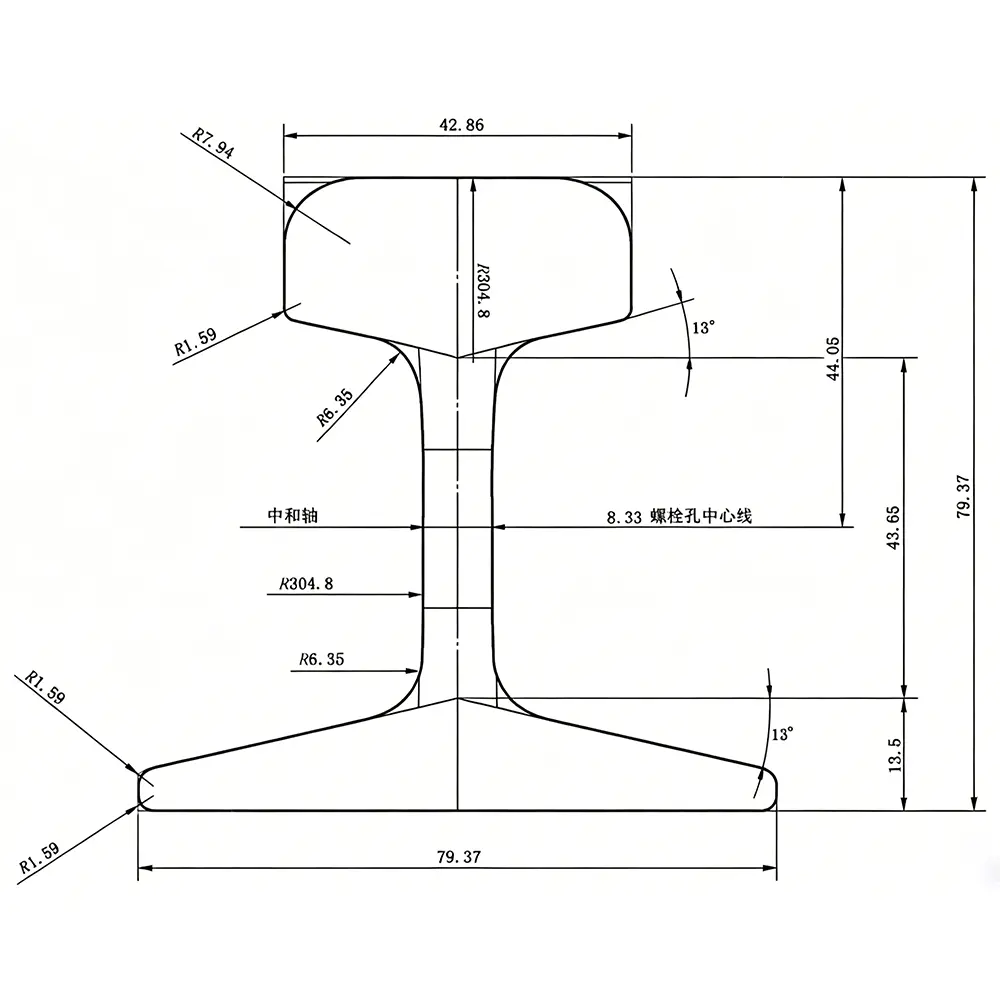

15KG Rail Specifications

Parameter	Value	Parameter	Value
Rail Size	15kg	Rail Type	Light-duty Rail
Standard	GB/T 11264-2025	Material	Q235B, 55Q
Rail Height	79.37 mm	Head Width	42.86 mm
Bottom Width	79.37 mm	Web Thickness	8.33 mm
Weight	15.20 kg/m	Length	6m, 8m or customized

For custom lengths or higher-strength materials, please contact our team for tailored production solutions.

15kg Rail Material Strength

Choose between Q235 (low-carbon, ductile) for flexible industrial use or 55Q (high-carbon, tensile strength ≥685MPa) for heavy-wear environments, both fully compliant with GB standards.

Q235	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HB		≤		≤	≤
	≥	≥
	235	24	375-460	38-47	26%		0.12-0.22	0.35	0.30-0.70	0.045	0.045
55Q	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HBW				≤	≤
	≥	≥	≥	≥		≥
			685	69		197	0.50-0.60	0.15-0.35	0.60-0.90	0.04	0.04

Applications of 15kg Rail

The 15kg light rail is ideal for demanding industries requiring robust track systems:

Logistics & Engineering

Ports & warehouses: Container handling tracks and heavy equipment rails. Construction sites: Temporary railways for engineering machinery and material delivery.

Industrial Manufacturing

Brick factories: Heavy-duty transport tracks for clay and finished product handling. Processing plants: Conveyor rail systems for bulk material transportation.

Mining & Energy

Coal mines: Medium-to-heavy haulage tracks for underground and open-pit operations. Quarries: Rail systems for rock extraction and machinery access.

High-Wear Environments

Steel mills: Auxiliary tracks in high-temperature or abrasive settings (55Q steel recommended). Recycling facilities: Rails for heavy machinery in waste processing plants.

Advantages of Our 15kg Rail

Dual-Material GB Compliance

Both Q235 and 55Q variants meet GB/T 11264-2025 standards, with 55Q offering superior tensile strength (≥685MPa) for extreme conditions.

Ample Stock & Rapid Delivery

As a leading supplier, we maintain inventory of both materials for quick dispatch, reducing project lead times by up to 50%.

Material-Driven Performance

Q235: Cost-effective, ductile, and corrosion-resistant for general use. 55Q: High-carbon hardness (HBW ≥197) and wear resistance for heavy-load applications.

Fully Customizable Solutions

Tailor-cut lengths to minimize waste in complex track layouts. Precision machining (angle cutting, punching) for seamless rail connections. Optional galvanization (Q235) or heat treatment (55Q) for specialized environments.

Glory Rail Custom Processing Services

Material & Length Customization
Choose Q235 or 55Q steel based on load requirements.
Custom lengths for precise track design.
Precision Machining
Bevel Cutting: Angled rail ends for curved tracks or switch installations.
Punching & Drilling: Pre-drilled holes for rail clips, bolts, or welding fixtures.
Surface & Heat Treatments
Hot-dip galvanization for coastal or humid environments.
Quenching and tempering to enhance hardness and fatigue resistance.

With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established GB specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.

15kg Rail System Solutions

Built to secure, connect, and protect every element of your rail network.

Rail System Integration Support

Technical support available for rail selection, fastening design, and installation planning for mining rail systems.

Global Shipping & Logistics: Your Partner in Reliable 15kg Rail Delivery

In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.

We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.

Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.

Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
