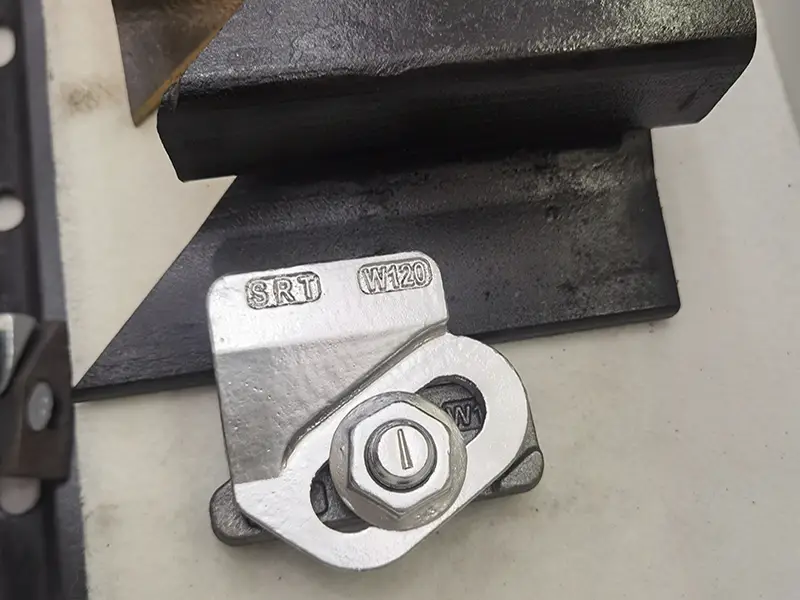

W120 Rail Clip:

High-Strength Fixing for Heavy Rails on Narrow Supports

The W120 rail clip is engineered to withstand extreme conditions, featuring a robust 5 mm weld throat thickness and a 350 Nm tightening torque capacity for secure and long-lasting rail fastening.

Product Overview

GloryRail’s W120/21 is a specialized adjustable crane rail clip engineered to secure heavy rails on narrow supports in the most arduous industrial environments. It delivers exceptional load capacity, withstanding up to 185kN (18.5 tonnes) of horizontal rail force—ideal for compact freight yards, manufacturing plants, and crane rail systems. Its low-profile design works seamlessly with cranes equipped with guide rollers, while welded installation eliminates the need for access from below, simplifying setup in tight or elevated spaces.

Key Features & Benefits

High Torque Capacity – Withstands tightening torque of 350Nm for secure fastening
5mm Weld Throat Thickness – Provides exceptional strength and durability
Wide Rail Compatibility – Suitable for QU, A, ISCR, GCR, CR, JIS, S, MRS, and other rail types
Welded Base Design – Creates a permanent, secure connection to supporting structures
Two Configuration Options – Available for rail with pad (S) or without pad (H) installations
Proven Global Design – Trusted in industrial applications worldwide

W120 Rail Clip Components

Component Number	Component Name	Key Function
1	Flange Nut	Secures the assembly, working with the self-tightening mechanism for long-term stability under 185kN loads.
2	Clip Cap with Integral Rubber Block	Combines structural support with a built-in vulcanized rubber block—saves space and protects rails.
3	M20 Captive Bolt	Grade 8.8 bolt ensures secure locking of the clip’s two main parts, critical for heavy rail performance.
4	Weldable Base	Weldable-grade steel base enables direct attachment to narrow supports—no extra space needed for fasteners.

W120/21 Rail Clip Specifications

Specification Category	Details
Model	W120/21
Maximum Side Load	185kN (equivalent to 18.5 tonnes)
Horizontal Rail Adjustment	21 mm
Bolt Spec	M20 Captive Bolt, Grade 8.8
Tightening Torque	350 Nm
Clip Weight (Thin Nut)	1.41 kg
Minimum Assembly Width	– W = Rail width (F) + 120 mm – V = Rail width (F) + 22 mm – U = Rail width (F) + 162 mm
Rubber Block Compatibility	– S (for rails with pad): 14mm length – H (for rails without pad): 21mm length
Weld Requirement	5mm throat thickness fillet weld; recommended electrodes: AWS E7018/E7028

Simple Installation & Precise Torque Guidelines

Welding Requirements

Weld Scope: Weld all around the clip base with a 5mm throat thickness fillet weld (critical for supporting 185kN loads). Note: For rails without pad, omit the weld closest to/parallel with the rail.
Electrode Recommendations: Use low-hydrogen electrodes (AWS E7018 or E7028) to ensure weld strength on narrow supports.
Custom Guidance: For complex narrow-support setups, contact Glory Rail for personalized welding support.

Tightening & Documentation

Tightening Torque: 350 Nm (for M20 Grade 8.8 captive bolt) – precise torque is essential for self-tightening performance.
Full Instructions: To get step-by-step installation docs tailored to your narrow-support project, reach out to our technical team directly.

Why Choose Our W120 Rail Clip?

W120/21 Rail Clip For Sale

Narrow-Support Expertise: The only clip in its class optimized for heavy rails on tight supports—no space-wasting design.
Industry-Leading Load Capacity: Withstands 185kN (18.5 tonnes) – ideal for high-stress applications like freight and crane rails.
Ample Stock for Fast Delivery: Large inventory ensures immediate fulfillment to minimize downtime for time-sensitive projects.
Custom Corrosion Protection: Add hot-dip galvanizing, electro-galvanizing, or coatings to resist rust in harsh environments.
Tailored Compatibility: Our team confirms fit for your specific rail type (even custom rails) – no guesswork for narrow setups.

Need Technical Support or Custom Solutions?

Our engineering team can provide specialized guidance for your specific rail application and environmental conditions. We offer customized solutions for unique project requirements.

→ Contact us today for expert assistance and project-specific quotations.
