9120 Rail Clip: Heavy-Duty Adjustable Crane Rail Clip

Glory Rail’s (9120/15/38) 9120 Rail Clip is a high-performance welded base rail clip engineered exclusively for heavy rails in the most demanding industrial settings. It delivers exceptional strength, withstanding up to 120kN (12.2 tonnes) of horizontal rail force—ideal for freight yards, ports, and manufacturing hubs. Its low-profile design works seamlessly with cranes equipped with guide rollers, while the welded installation eliminates the need for access from below, simplifying setup in tight or elevated spaces.

9120 Rail Clip: Proven Features for Maximum Heavy Rail Stability

Global Reliability: Successfully used worldwide for years, ensuring consistent performance in harsh environments (e.g., high-vibration freight lines, coastal ports).
Welded Base Convenience: Clips are welded directly to rail supports—no access from below needed, cutting installation time in hard-to-reach areas.
Dual Locking Mechanism: Two main parts lock securely when tightening the Grade 8.8 bolt, plus a built-in self-tightening design prevents loosening under extreme vibration.
Protective Rubber Block: A special vulcanized rubber block (integrated into the clip cap) applies controlled force to the rail, avoiding surface scratches and absorbing minor impacts.
Wide Rail Compatibility: Designed to fit more rail types than illustrated—contact Glory Rail for full compatibility details for your specific rail.

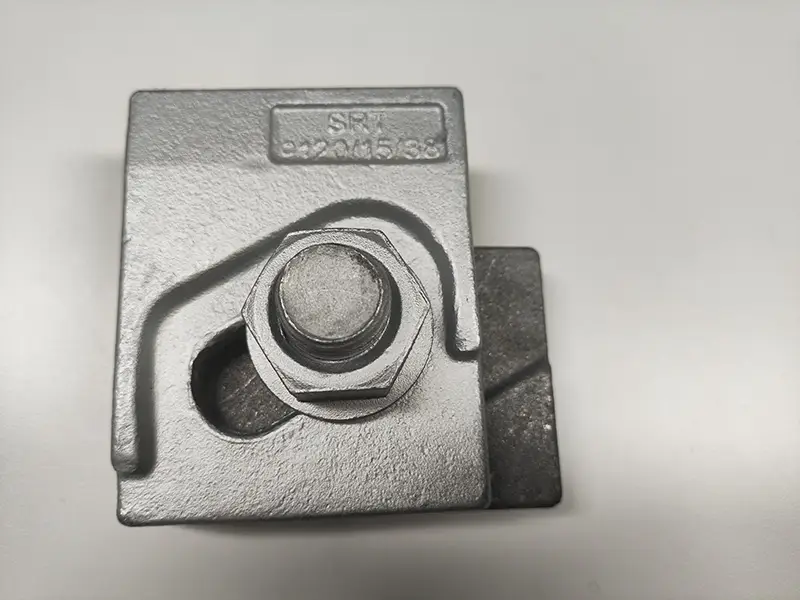

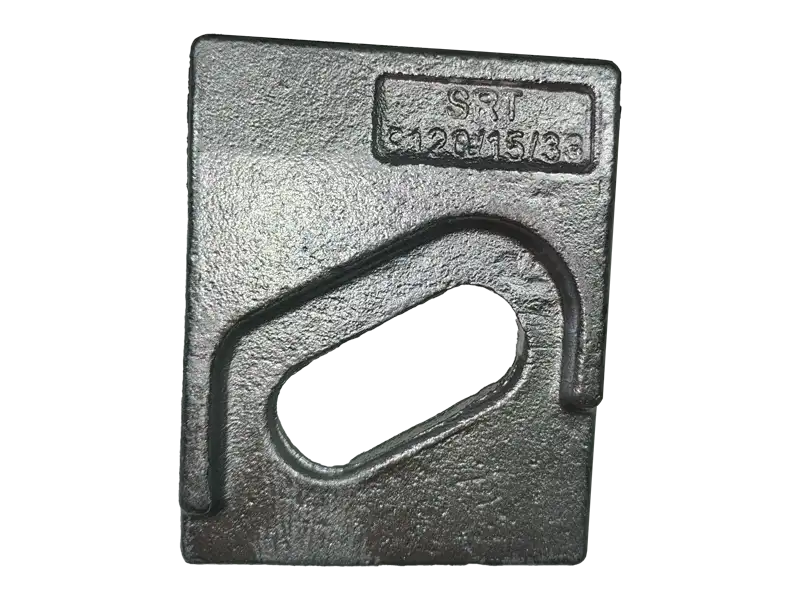

9120/15/38 Rail Clip Components

Component Number	Component Name	Key Function
1	Flange Nut	Secures the clip assembly, working with the self-tightening mechanism for long-term stability.
2	Clip Cap with Integral Rubber Block	Combines structural support with a built-in vulcanized rubber block to protect rails and apply controlled force.
3	M20 Captive Bolt	Grade 8.8 captive bolt ensures secure locking of the clip’s two main parts during installation.
4	Weldable Base	Weldable-grade steel base enables direct attachment to supports—eliminates the need for below-access.

9120 Rail Clip Specifications

Specification Category	Details
Model	9120/15/38
Maximum Side Load	120kN (equivalent to 12.2 tonnes)
Horizontal Rail Adjustment	15 mm
Bolt Spec	M20 Captive Bolt, Grade 8.8
Tightening Torque	350 Nm
Minimum Assembly Width	– W = Rail width (F) + 160 mm – V = Rail width (F) + 20 mm
Rail Compatibility	Fits more rail types than illustrated (contact GloryRail for full range)
Weld Requirement	4mm throat thickness fillet weld; recommended electrodes: AWS E7018/E7028

Simple Installation & Load Capacity

Welding Requirements

Weld Scope: Weld all around the clip base (except the side closest/parallel to the rail) with a 4mm throat thickness fillet weld.
Electrode Recommendations: Use low-hydrogen electrodes (AWS E7018 or E7028) to ensure weld strength and durability.
Continuous Weld Option: If a full continuous weld around the base is needed, contact Glory Rail for customized technical guidance.

Tightening & Documentation

Tightening Torque: 350 Nm (for M20 Grade 8.8 captive bolt) – critical for proper locking and self-tightening performance.
Full Instructions: To get step-by-step installation documentation tailored to your project, reach out to our technical team directly.
