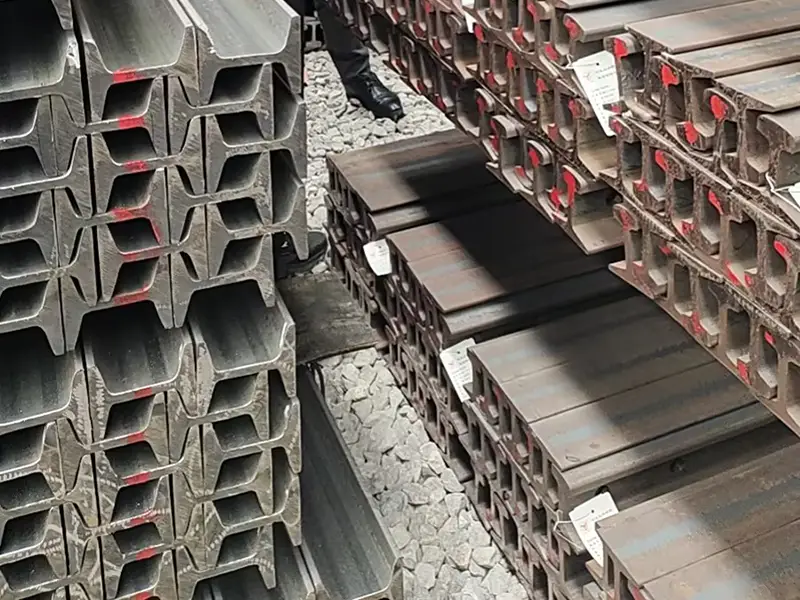

22kg Rail
The 22kg light steel rail is a high-performance solution designed for medium-to-heavy-duty industrial and mining applications. Compliant with GB/T 11264-2025 standards, it is available in two premium materials: Q235 low-carbon steel for general durability and 55Q high-carbon steel for extreme wear resistance. With a weight of 22.3kg/m and robust dimensions (93.66mm height/base), this rail excels in mining haulage, railway sidings, and heavy equipment transport, offering superior load-bearing capacity and long-term reliability.
Every rail delivered with traceable quality assurance

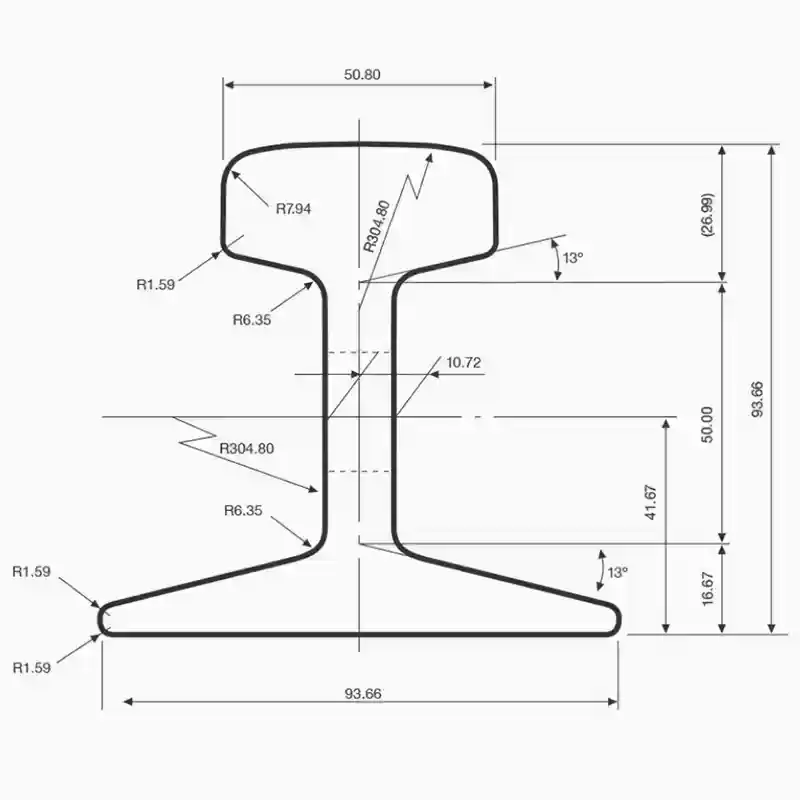

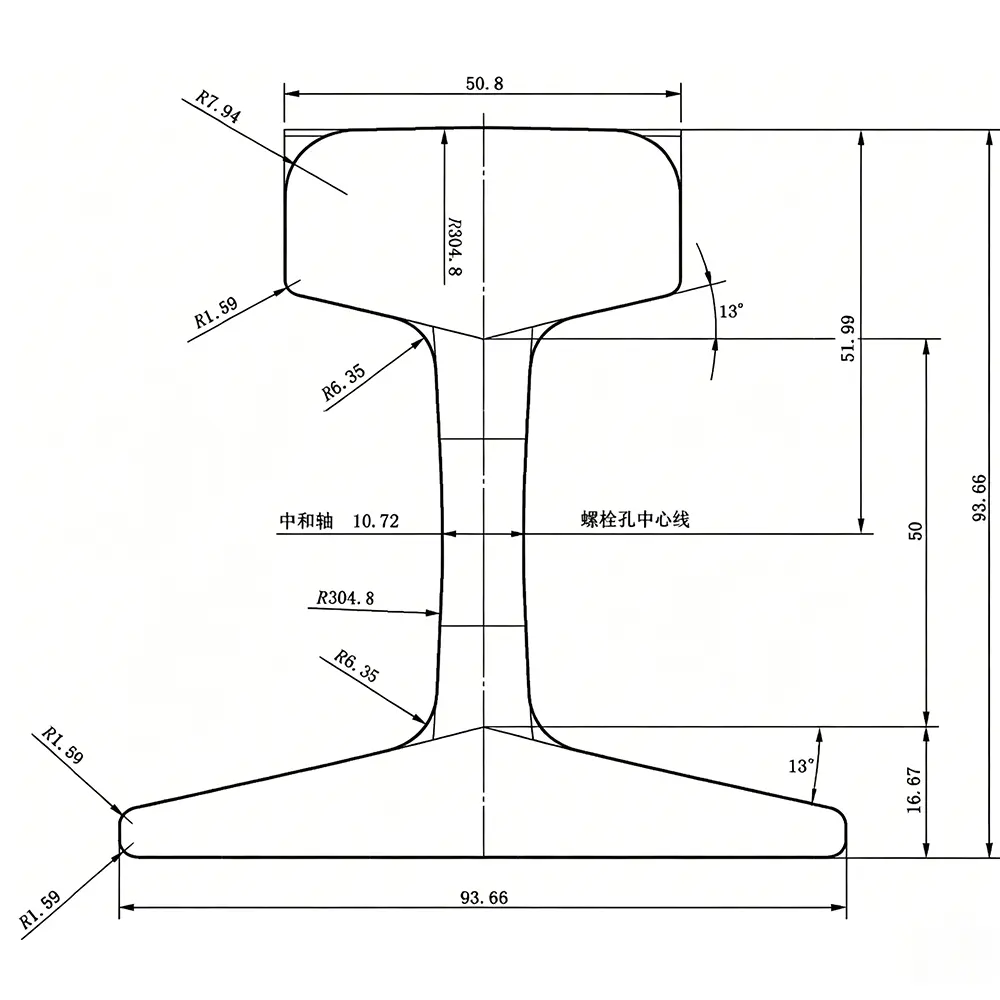

22KG Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | 22kg | Rail Type | Light-duty Rail |
| Standard | GB/T 11264-2025 | Material | Q235B, 55Q |
| Rail Height | 93.66 mm | Head Width | 50.8 mm |
| Bottom Width | 93.66 mm | Web Thickness | 10.72 mm |
| Weight | 22.30 kg/m | Length | 6m, 8m,10m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
22kg Rail Material Strength
Choose Q235 (low-carbon, ductile) for general applications or 55Q (high-carbon, tensile strength ≥685MPa) for heavy-wear environments, both meeting GB standards.
| Q235 | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
Applications of 22kg Rail
The 22kg light rail is ideal for demanding industries requiring robust track systems:
Mining & Quarrying Operations
Main haulage tracks in coal and metal mines, built for ore and equipment transport in open-pit environments.
Railway Infrastructure Support
Used in sidings, maintenance yards, and light locomotive tracks within industrial railway systems.
Heavy Industry & Port Logistics
Rails for container yards, bulk transfer zones, and high-temp steel mill areas using durable 55Q steel.
Construction & Engineering Sites
Tracks for heavy machinery in temporary works or permanent lines in industrial parks and logistics hubs.
Advantages of Our 22kg Rail
GB Compliance & Immediate Availability
Both materials meet GB/T 11264-2012 standards, with regular inventory ensuring fast delivery within 7-15 days.
Dual-Material Performance
Q235: Corrosion-resistant and cost-effective for general mining and industrial use. 55Q: High-strength (≥685MPa) and wear-resistant for heavy-duty applications like steel mills and ports
Customization for Precision Projects
Tailor-cut lengths (6m/8m/10m or custom) to reduce material waste Precision machining: Angle cutting for curved tracks and pre-drilled holes for fastener integration
Cost-Effective Heavy-Duty Solution
Balances strength (22.3kg/m) and affordability, with optional galvanization (Q235) or heat treatment (55Q) to extend lifespan in harsh environments.
Glory Rail Custom Processing Services
- Length Customization: Standard or custom lengths up to [insert max length]
- Precision Machining: Bevel cutting, punching, and drilling for seamless track installation
- Surface Treatments: Galvanization, anti-rust painting, or heat treatment for 55Q steel
- Technical Support: Free CAD drawings, load calculations, and installation guides
With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established GB specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.
22kg Rail System Solutions
Designed to improve track stability, safety, and operational efficiency
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
Rail Pads
Reduce vibration and noise, distribute dynamic loads evenly, and prolong sleeper life
Steel Soleplate
enhance railway durability by distributing loads, adjusting track alignment, damping vibrations.
Rail System Integration Support
Technical support available for rail selection, fastening design, and installation planning for mining rail systems.
Global Shipping & Logistics: Your Partner in Reliable 22kg Rail Delivery
In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.
We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.

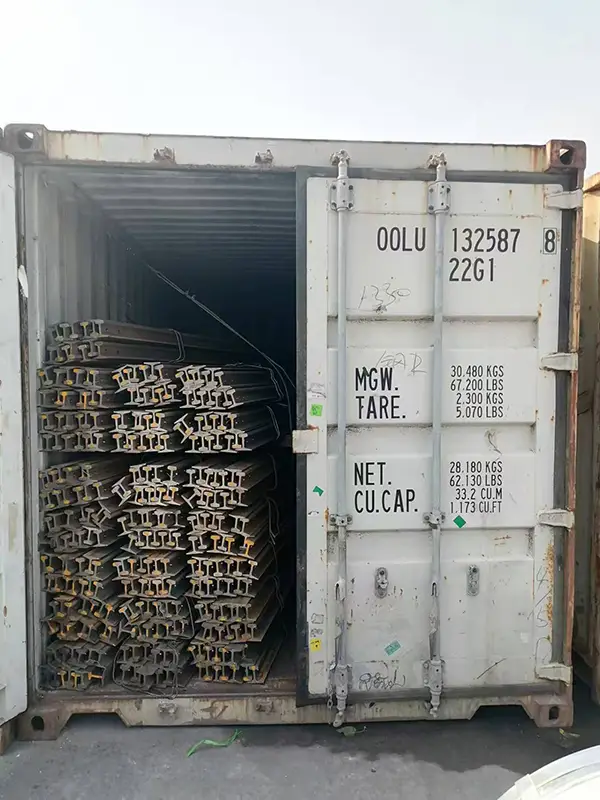

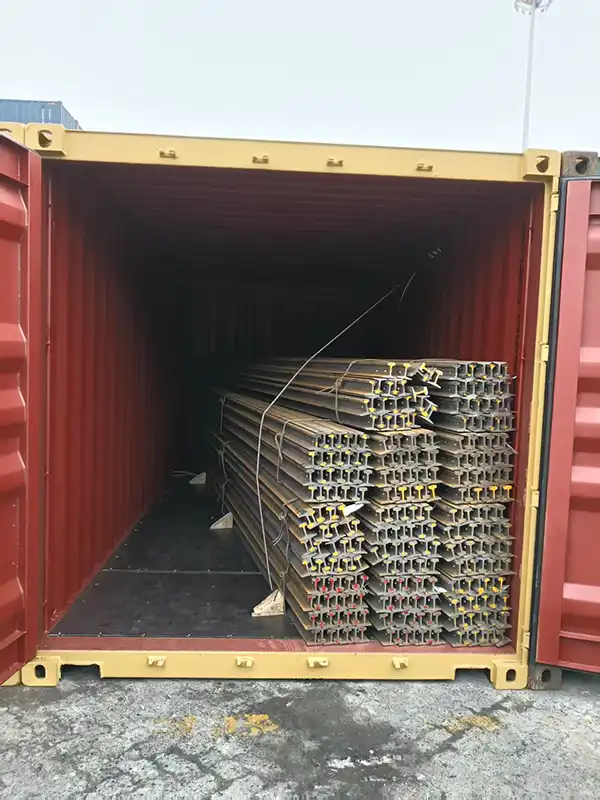

Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.
Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
