Elastic Rail Clip

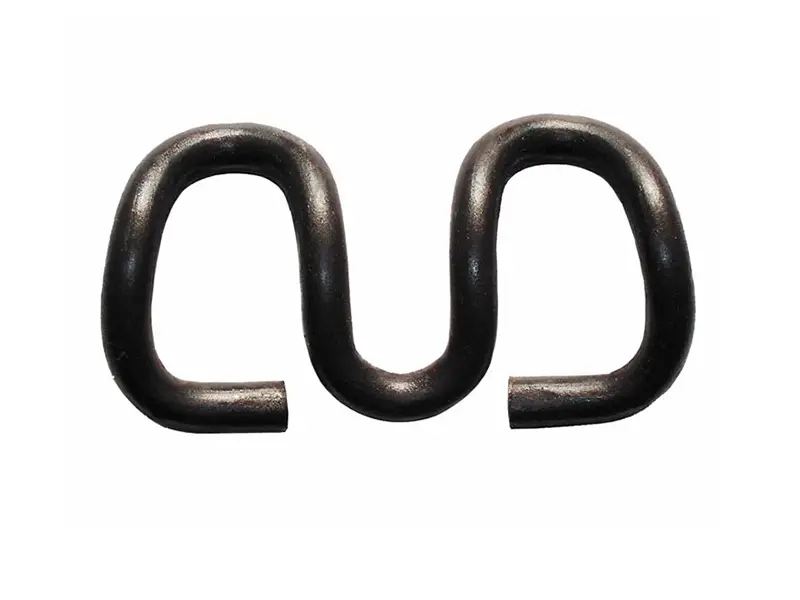

Elastic rail clip is a precision-engineered component designed to secure rails to sleepers or baseplates. Made from premium spring steel, they deliver high clamping force, vibration resistance, and long service life under heavy dynamic loads.
What Is an Elastic Rail Clip?
An elastic rail clip (also called a rail clip or dog clip) is part of the rail fastening system that keeps the rail firmly connected to the sleeper. Typically made of forged spring steel, it resists fatigue, lateral motion and rail creep while allowing for thermal expansion. The clip is used in heavy-haul, metro, freight and industrial track systems, and is compatible with various rail profiles and fastener assemblies.
Material grade: 60Si2MnA, 60Si2CA Material
Diameter:13mm,14mm,15mm,16mm,18mm, 20mm, 22mm
Surface treatment: plain oiled, black oxide, galvanized, hot-dip galvanized, painted
Standard: E-type, SKL, KPO, Nabla, PR, Russia, fast, UIC, BS, JIS, etc.
Packing: Woven Bag/Kegs and Pallet/wooden box or upon customers
Backed by 15 years of specialized manufacturing experience, Glory Rail offers a comprehensive range of elastic rail clips, all of which can be customized to meet specific requirements.
Technical Specifications of the Elastic Rail clip
When spring steel deflection is 9.1mm, fatigue life is up to 5 million cycles without breaking
Material: 60Si2MnA
Surface: Plain, black painting, red painting
| Type | Weight(kg) |
|---|---|
| E1609 | 0.45 |
| E1806 | 0.64 |
| E1809 | 0.64 |
| E1817 | 0.64 |
| E2009 | 0.78 |
| E2039 | 0.78 |
| E2055 | 0.78 |
| E2056 | 0.78 |
| E2063 | 0.78 |
| E2007 | 0.78 |
| E2003 | 0.78 |
| E2006 | 0.78 |
| E2006 | 0.78 |
Specifications of SKL tension clamp
Fatigue Property: No less than 5 million times
Loading Property: Under pressure 8-12KN, the displacement is between 9-12mm
Material: 60Si2CrA
Surface: Plain, black painting, red painting
We offer the comprehensive selection of products listed in the table below, along with custom-made SKL tension clamps tailored to your specifications.
| Type | Weight(kg) |
|---|---|
| SKL-1 | 0.49 |
| SKL-2 | 0.50 |
| SKL-3 | 0.51 |
| SKL-12 | 0.54 |
| SKL-14 | 0.51 |
Elastic Rail Clip Manufacturing Process
Elastic Rail Clip Production Flow
| Step | Process | Description |
|---|---|---|
| 1️⃣ | Raw Material | Select premium spring-steel rods with certified composition. |
| 2️⃣ | Shearing | Cut rods into precise lengths for clip forming. |
| 3️⃣ | Heating | Heat to 950–1000°C to reach forging temperature. |
| 4️⃣ | Forming | Shape the clip in three hot-bending stages using molding equipment. |
| 5️⃣ | Quenching | Cool rapidly in oil to increase surface hardness. |
| 6️⃣ | Tempering | Reheat to 400–500°C to restore ductility and strength. |
| 7️⃣ | Inspection | Check dimensions, hardness (40–48 HRC), and elasticity. |
| 8️⃣ | Oiling & Packing | Apply protective oil and pack for safe delivery. |
Manufacturing Process
The manufacturing of Elastic Rail Clips follows a precise hot forging process to ensure strength, elasticity, and durability.
Production begins with high-quality spring steel rods, which are sheared into the required lengths. These cut pieces are then heated to 950–1000°C in a controlled furnace to reach forging temperature.
Once heated, the steel is hot-formed through three bending stages, shaping the clip to its exact profile. After forming, the clips are quenched in oil to enhance hardness and wear resistance, followed by tempering at 400–500°C to restore toughness and elasticity.
The finished clips are then oiled and carefully packed to prevent corrosion during storage and transport. Every batch undergoes strict hardness testing to ensure the clips meet the required 40–48 HRC range.
From raw material sourcing to final inspection, every step is closely monitored. Using high-precision testing equipment, Glory Rail ensures each elastic rail clip meets international standards and customer requirements for performance and safety.
