3224 Rail Clip: Heavy Duty Rail Clip
The 3224 Rail Clip is engineered for superior performance in heavy-duty industrial applications, providing a premium fastening solution with exceptional durability, secure stability, and long-term reliability.
What is 3224 Rail Clip?

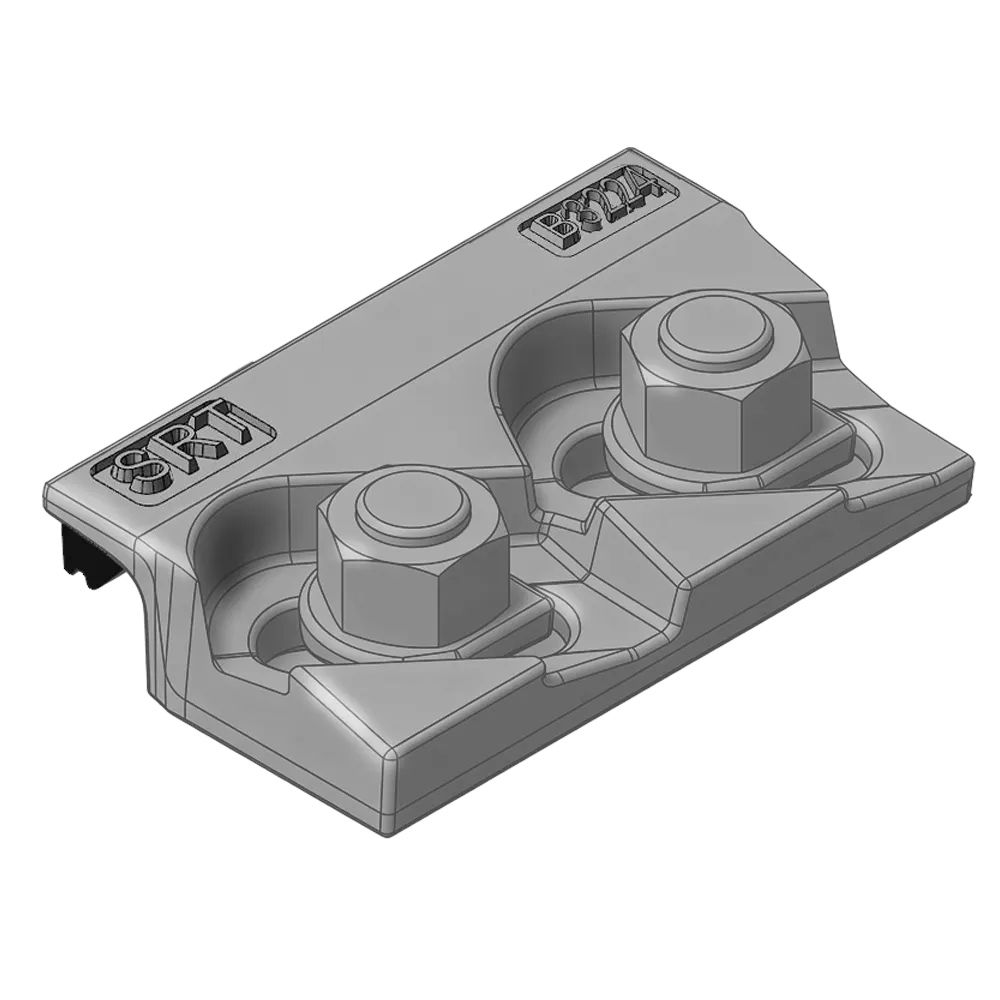

The Glory Rail 3224/20/44 is a heavy-duty adjustable rail clip designed for the most demanding industrial applications. This robust bolted fixing system offers exceptional performance and reliability for securing heavy rails in challenging environments. With its innovative design featuring 20mm of horizontal adjustment, this rail clip allows for precise alignment during installation and accommodates thermal expansion, ensuring long-term performance and safety.
The 3224/20/44 is engineered to withstand extreme conditions and heavy loads, making it the ideal choice for industrial railways, crane systems, and heavy transport infrastructure.
3224/20/44 Rail Clip Components
Special Washer
Designed to evenly distribute clamping force and integrate smoothly with the clip, ensuring stable, long-lasting performance. Produced with tight tolerances for reliability.
Forging Steel Clip
Main body forged from high-quality steel for exceptional strength, durability, and fatigue resistance. Robust construction guarantees structural integrity under heavy loads.
Vulcanized Rubber Block
Core component delivering consistent clamping force, vibration absorption, and noise reduction while safeguarding the rail. Special compound ensures long-term performance.
Key Features of 3224 Rail Clip
Exceptional Load Capacity: Built to handle heavy forces and loads, delivering dependable performance in tough industrial settings.
20mm Horizontal Adjustment: Offers broad alignment flexibility and compensates for thermal shifts, simplifying installation and upkeep.
Robust Construction: Precision-engineered from premium materials for lasting strength and consistent heavy-duty performance.
Vulcanized Rubber Block: Custom rubber ensures steady grip, reduces vibration, cuts noise, and protects rail and support.
Proven Global Track Record: Globally trusted design with years of reliable use in demanding, heavy-duty applications.
Versatile Installation Options: Supports top or bottom bolt insertion, with welded stud choices for permanent setups.
3224 Rail Clip Specifications
| Attribute | Value | Details |
|---|---|---|
| Model Number | 3224/20/44 | |
| Maximum Side Load | 390kN | (39.2 tonnes) |
| Horizontal Adjustment | 20mm | |
| Weight | 2.5 kg | Per clip assembly |
| Dimensions (X/Y/Z) | 44mm / 48mm / 26mm | (With full nut configuration) |
| Rubber Pad Options | S-type (14mm): For use with rail pad H-type (21mm): For use without rail pad | |
Simple Installation & Load Capacity
Professional Installation Recommended
While the 3224/20/44 rail clip is designed for straightforward installation, we strongly recommend professional installation to ensure optimal performance and safety.
Our technical team can provide detailed installation instructions, torque specifications, and best practices tailored to your specific application and environmental conditions.
For complete and detailed installation instructions, please contact Glory Rail technical support.
Installation Flexibility
The hexagon-headed fixing bolt offers versatile installation options to suit various design constraints. It can be inserted from either above or below the supporting structure, providing adaptability for different project requirements. For permanent installations requiring enhanced stability, a welded stud option may be available—please consult with our engineering team for guidance on specific applications and compatibility.
Rail Compatibility of 3224 Rail Clip
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Ref. (with pad) | Clip Ref. (without pad) |
|---|---|---|---|---|---|---|
| QU100 | 150 | 100 | 150 | 89 | 3224/20/44 (S) | 3224/20/44 (H) |
| QU120 | 170 | 120 | 170 | 118.5 | 3224/20/44 (S) | 3224/20/44 (H) |
| A120 | 220 | 120 | 105 | 100 | 3224/20/44 (S) | 3224/20/44 (H) |
| A150 | 220 | 150 | 150 | 150.3 | 3224/20/44 (S) | 3224/20/44 (H) |
| ISCR100 | 150 | 102 | 150 | 89 | 3224/20/44 (S) | 3224/20/44 (H) |
| ISCR120 | 170 | 120 | 170 | 118.5 | 3224/20/44 (S) | 3224/20/44 (H) |
| ISCR140 | 170 | 140 | 170 | 146 | 3224/20/44 (S) | 3224/20/44 (H) |
| CR73 | 140 | 100 | 135 | 73.3 | 3224/20/44 (S) | 3224/20/44 (H) |
| 86kg AS | 165 | 102 | 102 | 85.5 | 3224/20/44 (S) | 3224/20/44 (H) |
| MRS 86 | 165 | 102 | 102 | 85.5 | 3224/20/44 (S) | 3224/20/44 (H) |
| MRS 87 (PRI85R) | 152 | 102 | 152 | 86.8 | 3224/20/44 (S) | 3224/20/44 (H) |
| MRS 125 | 180 | 120 | 180 | 125 | 3224/20/44 (S) | 3224/20/44 (H) |
