Bolted Rail Clips

Glory Rail offers a comprehensive range of bolted rail clips engineered to secure light to heavy crane rails in arduous industrial applications. Designed with precision and durability, these clips ensure stable rail fixation, adapt to varying rail types, and withstand extreme horizontal forces, making them ideal for ports, factories, and heavy machinery environments.

Product Range & Core Specs

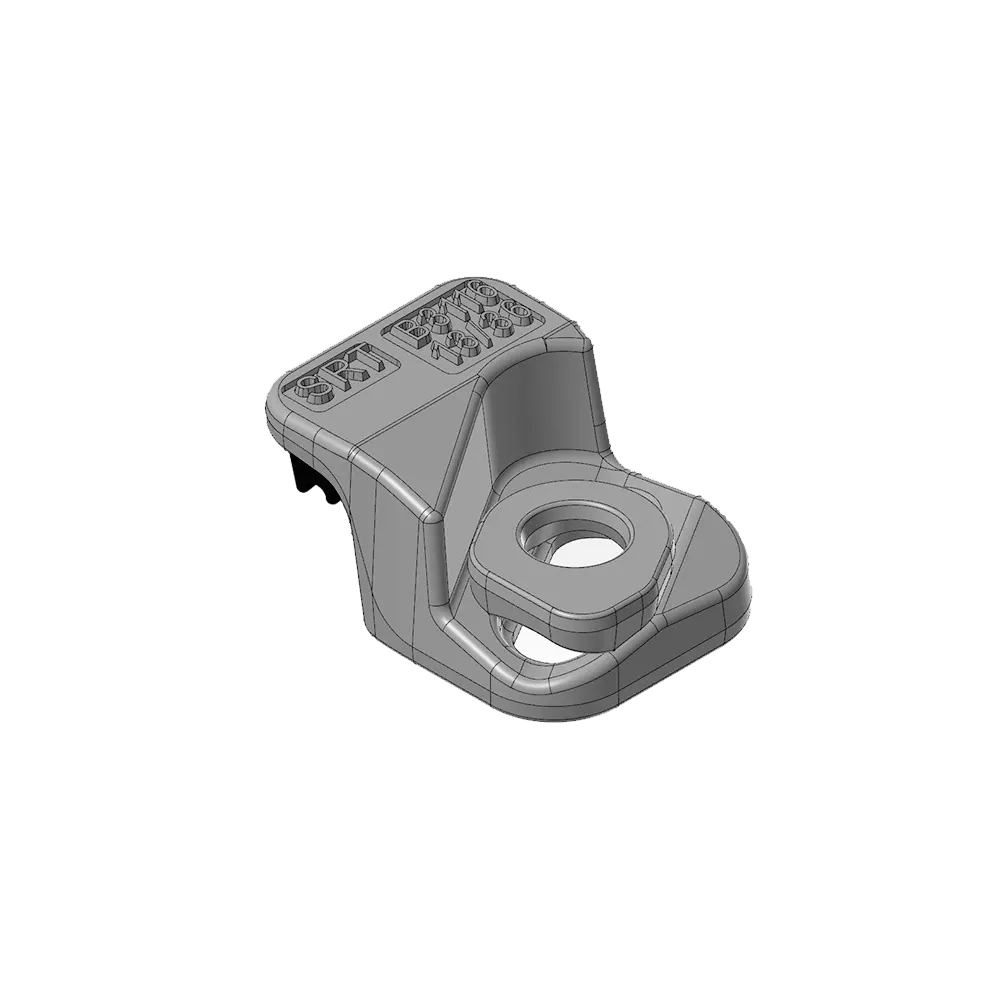

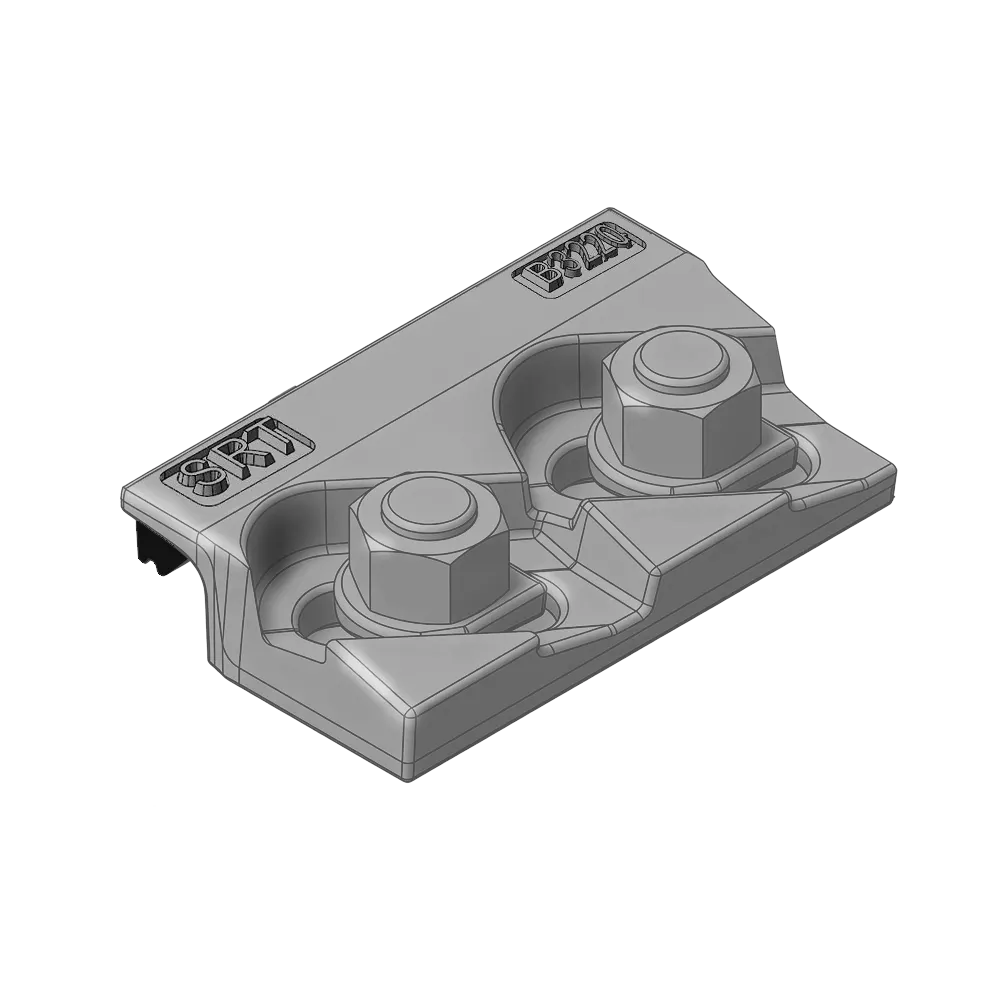

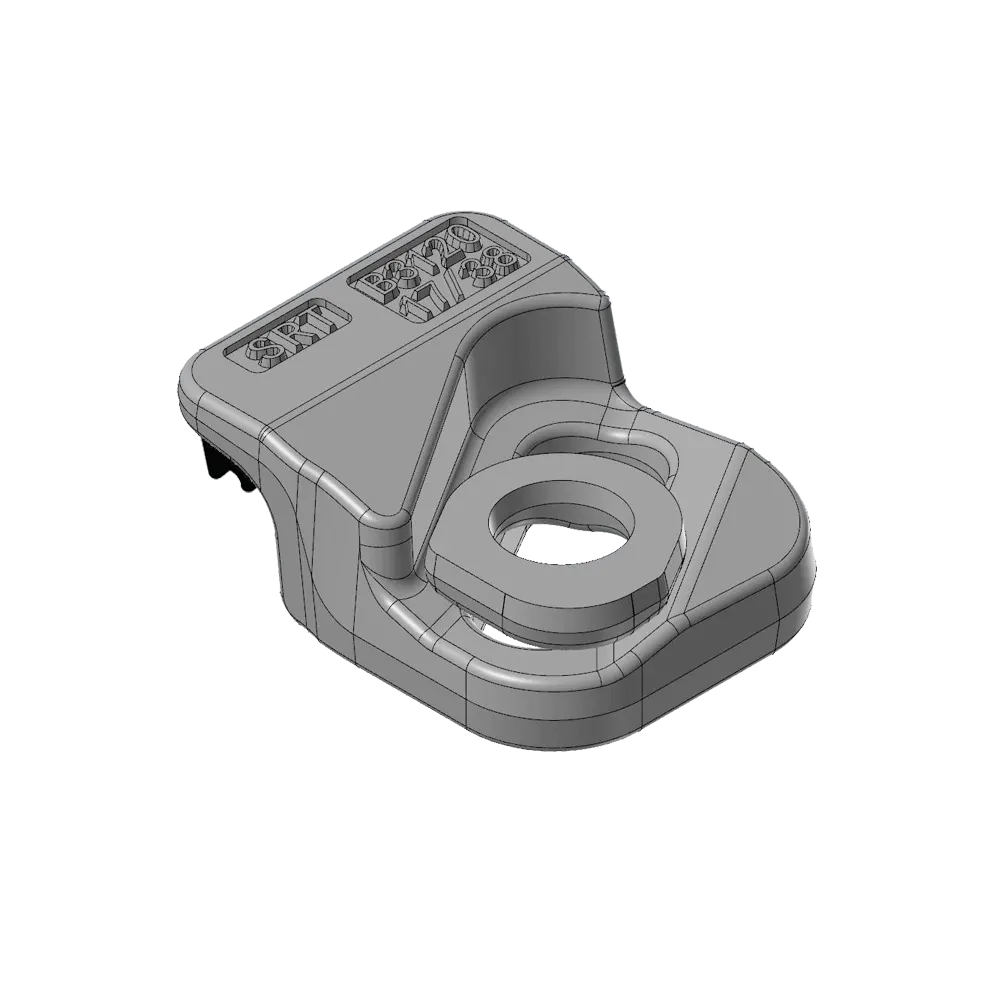

Our bolted rail clips are trusted globally for their proven design, used successfully for years in demanding scenarios. Available in 5 models—3116/13/36, 3120/17/38, 3124/20/42, 3220/17/38, and 3224/20/44—they cater to diverse rail weights (15.2-150.3 kg/m) and installation needs (with/without rail pads). Key specifications vary by model, including maximum lateral load (38kN to 390kN), horizontal rail adjustment (13mm to 20mm), and weight (0.41kg to 2.5kg), ensuring compatibility with rails like QU series, UIC standards, JIS, and more.

Key Features & Benefits

Proven Global Design: Time-tested performance across worldwide industrial sites.

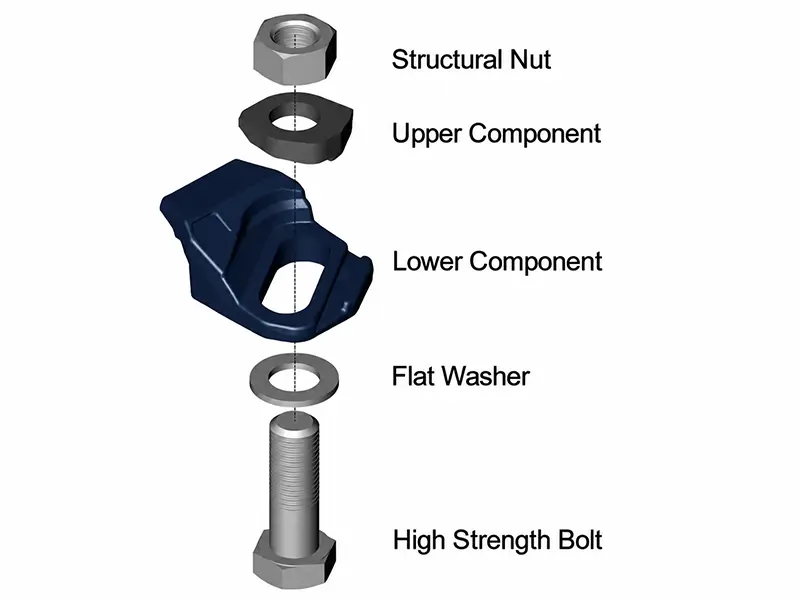

Secure Fixation: Bolted to rail supports, with two main parts locked via nut tightening for stable clamping.
Controlled Force Application: Special vulcanized rubber blocks deliver consistent pressure to rails, reducing wear.
Adjustability: Horizontal rail adjustment (13-20mm) accommodates installation tolerances.
Low Profile: Compatible with cranes fitted with guide rollers, avoiding interference.
Versatility: rails with/without pads, covering a wide range of rail weights (15.2-150.3 kg/m).

Corrosion-Resistant Coatings & Precision Machining

Crafted with high-quality materials, our bolted rail clips feature corrosion-resistant treatments (e.g., galvanization) to withstand harsh environments like humidity and chemicals. Precision machining ensures tight dimensional accuracy—critical for components like forged steel clips and special washers—guaranteeing proper fit with rails and supports. This attention to detail minimizes installation errors and extends service life.

Installation & Maintenance

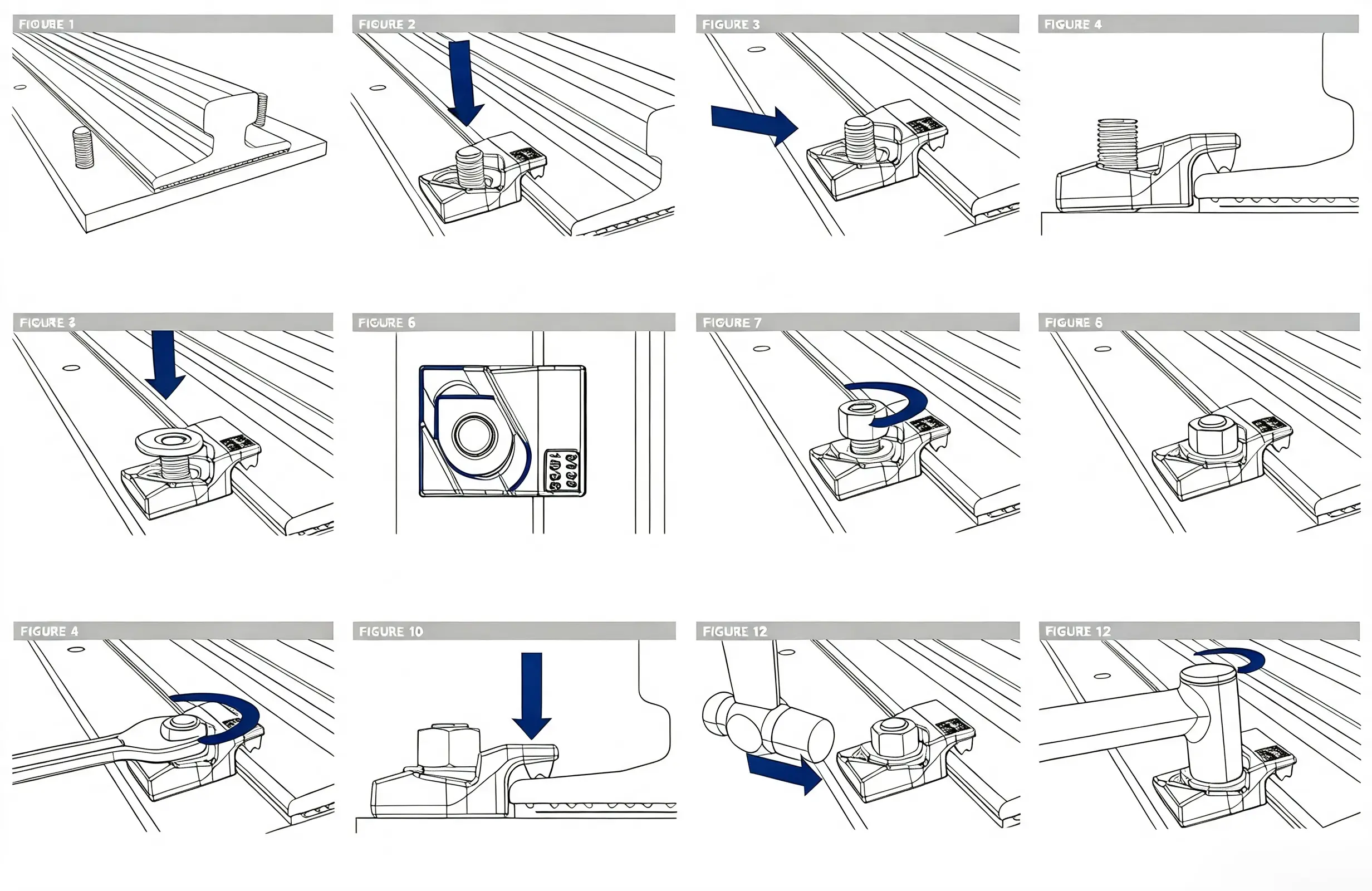

Installation Flexibility: The hexagon-headed fixing bolts for all models can be inserted from below the supporting structure, adapting to diverse installation scenarios. If welded studs are preferred for fixation, please consult Glory Rail for specific guidance.
Torque Specifications: Tightening torque varies by model and bolt grade, as follows:
- 3116/13/36, 3120/17/38, 3220/17/38, 3224/20/44: 200Nm for Grade 8.8 bolts; 300Nm for Grade 10.9 bolts.
- 3124/20/42: 600Nm for Grade 8.8 bolts; 750Nm for Grade 10.9 bolts.
Maintenance: For complete installation procedures and maintenance protocols tailored to each model, contact Glory Rail directly to obtain detailed instructions, ensuring optimal performance and longevity.

Why Choose Us

Proven Engineering Expertise

Backed by years of global experience, we specialize in rail fastening systems engineered for crane runways and industrial rail tracks.

Versatile Clip Product Range

From 38kN to 390kN, our 5 clip models accommodate various lateral forces and are compatible with most standard crane rail profiles.

High-Quality Component Design

Each clip features forged steel, vulcanized rubber, and precision-machined hardware—built for stability under heavy-duty operations.

Comprehensive Support Services

We offer full support from design selection to on-site installation, ensuring optimal performance in your specific working environment.

Request a Quote

Ready to find the perfect bolted rail clip for your needs? Get a tailored quote in just a few steps:

Share your rail type (e.g., QU series, UIC standards) and weight (kg/m).
Specify if the rail uses a pad or not.
Let us know your preferred model (3116/13/36, 3120/17/38, 3124/20/42, 3220/17/38, 3224/20/44) or application requirements.

Our team will quickly provide a precise quote based on your details. Contact us via railroadtrackforsale.com to get started today.
