9216 Rail Clip – Superior Strength for Heavy-Duty Rail Fixing

The 9126 rail clip is engineered to withstand extreme horizontal forces up to 165kN, delivering precision, reliability, and long-term stability.

Product Overview

The 9216/08/40 Adjustable Crane Rail Clip is designed for the most demanding rail fixation applications. It offers exceptional durability and performance under extreme loads, making it ideal for industrial cranes, gantry systems, and heavy rail infrastructures. Its low-profile design ensures compatibility with guide roller-equipped cranes, providing both safety and efficiency.

Key Features

Global Track Record: Successfully used worldwide for years, ensuring consistent performance in harsh conditions (e.g., high-vibration rail lines, coastal ports with salt exposure).
Welded Base Convenience: Clips are welded directly to rail supports—no access from below needed, cutting installation time in hard-to-reach areas like elevated tracks.
Dual Locking & Self-Tightening: Two main parts lock securely when tightening the Grade 8.8 bolt, plus a built-in self-tightening mechanism prevents loosening under extreme vibration.
Protective Rubber Block: A special vulcanized rubber block applies controlled force to the rail, avoiding surface scratches and absorbing minor impacts to extend rail life.
Wide Heavy Rail Compatibility: Designed to fit a range of heavy rail types (QU series, ISCR series, GCR 183, etc.)—ideal for diverse industrial projects.

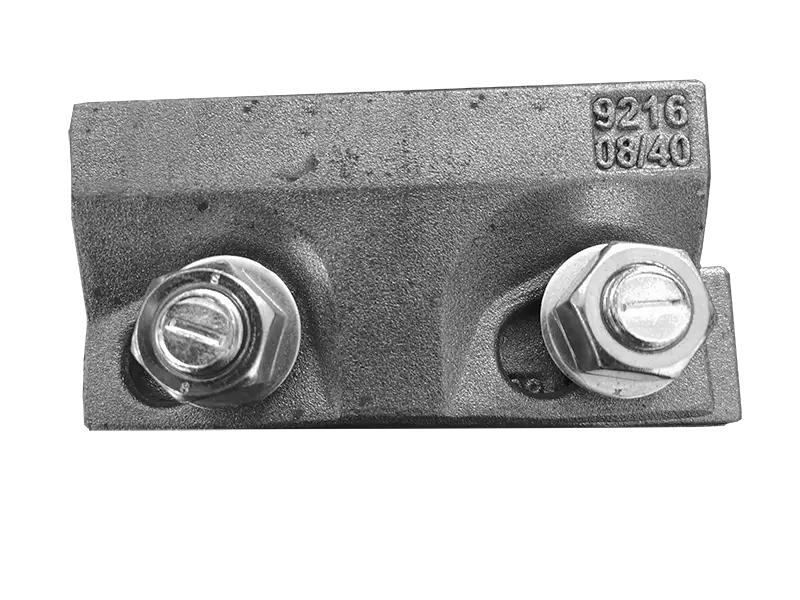

9216 Rail Clip Components

No.	Component	Description
1	Flange Nut	Provides secure locking and even pressure distribution under high load.
2	Forging Steel Clip	Manufactured from high-strength forged steel for maximum durability and grip.
3	Vulcanized Rubber Block	Delivers controlled damping force and reduces vibration and noise.
4	Weldable Base	Allows direct welding to support structure without underside access.
5	M16 Captive Bolt	High-tensile Grade 8.8 bolt ensures reliable clamping and resistance to loosening.

9216/08/40 Rail Clip Specifications

Specification Category	Details
Model	9216/08/40
Maximum Side Load	165kN (equivalent to 16.8 tonnes)
Horizontal Rail Adjustment	8 mm
Bolt Spec	M16 Captive Bolt, Grade 8.8
Tightening Torque	125 Nm
Clip Weight	1.52 kg

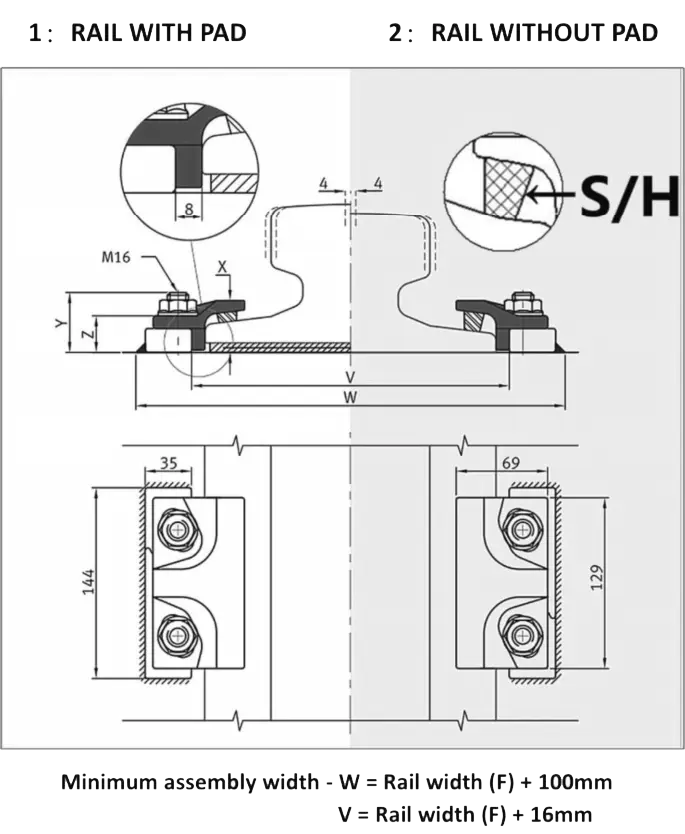

Minimum Assembly Width	– W = Rail width (F) + 100 mm – V = Rail width (F) + 16 mm
Rubber Block Compatibility	– For rails with pad: 4m length – For rails without pad: 21m length
Weld Requirement	4mm throat thickness fillet weld; recommended electrodes: AWS E7018/E7028

Simple Installation & Load Capacity

Welding Requirements

Weld Scope: Weld all around the clip base (except the side closest/parallel to the rail) with a 4mm throat thickness fillet weld.
Electrode Recommendations: Use low-hydrogen electrodes (AWS E7018 or E7028) to ensure weld strength for heavy-load applications.
Continuous Weld Option: If a full continuous weld around the base is needed, contact Glory Rail for customized technical guidance.

Tightening & Documentation

Tightening Torque: 125 Nm (for M16 Grade 8.8 captive bolt) – critical for proper locking and self-tightening performance.
Full Instructions: To get step-by-step installation documentation tailored to your project, reach out to our technical team directly.

Why Choose Our 9216/08/40 Rail Clip?

9216/08/40 Rail Clip For Sale

Industry-Leading Load Capacity: Withstands 165kN (16.8 tonnes) – the highest in its class for heavy rail applications like freight and port operations.
Ample Stock for Fast Delivery: We maintain large inventory levels, ensuring immediate order fulfillment to minimize project downtime.
Custom Corrosion Protection: Add hot-dip galvanizing, electro-galvanizing, or specialized coatings to resist rust in coastal or high-humidity environments.
Tailored Rail Compatibility: Our team helps confirm compatibility for your unique rail type (e.g., GCR 183, QU 120) – no guesswork required.
Dedicated Heavy-Duty Support: From weld guidance to load capacity verification, our experts provide personalized help for extreme industrial projects.

Need a Custom Solution or Bulk Quote?

Our engineering team can tailor the 9216 rail clip to your specific rail profile and environmental conditions.
→ Get in touch today for a personalized response within 24 hours.
