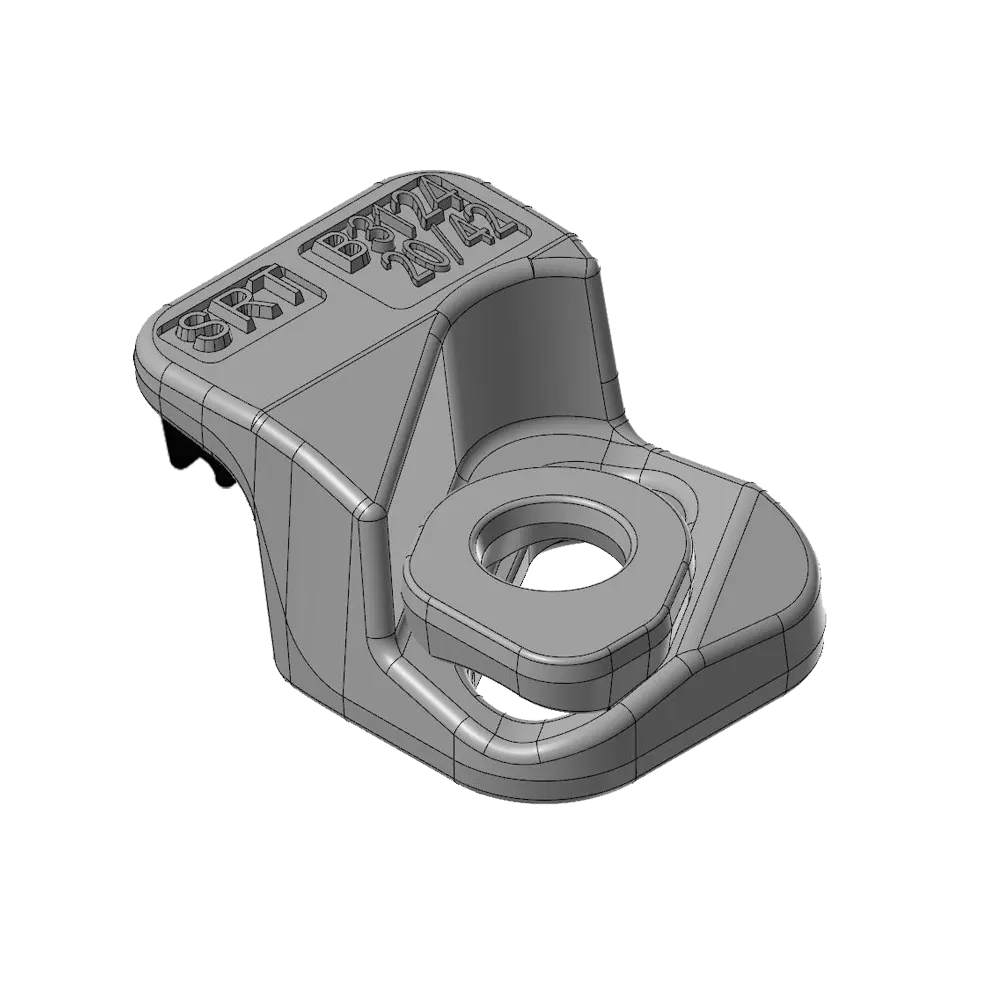

3124 Rail Clip: Adjustable Crane Rail Fixing for Heavy Loads
The 3124 rail clip is engineered for superior performance in demanding environments. With 20mm adjustment and the ability to withstand horizontal forces up to 125kN (12.7 tonnes), it delivers proven reliability for crane rails and light rail systems worldwide.
What is 3124 Rail Clip?
The Glory Rail 3124/20/42 is a heavyweight performer in a compact form. This adjustable, bolted fixing clip is meticulously engineered to provide a secure and durable connection between the rail and its supporting structure.
Its key advantage lies in its 20mm of horizontal adjustment, allowing for precise alignment during installation and easy maintenance. Whether for industrial overhead cranes, gantry cranes, or complex material handling systems, this clip delivers consistent performance, reducing wear and tear and ensuring long-term operational reliability.

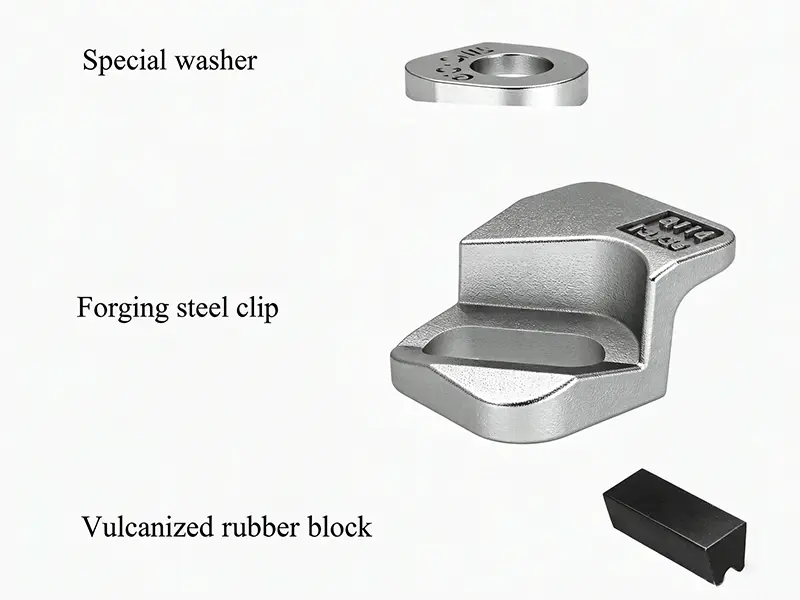

3124/20/42 Rail Clip Components
Special Washer: High-strength steel washer with a corrosion-resistant surface treatment for stable fastening and long-term use.
Forged Steel Clip: The main load-bearing part of the clamp. Forged and heat-treated steel provides the strength needed for repeated rail loads.
Vulcanized Rubber Block: Oil-resistant rubber with a metal core helps absorb vibration and reduce noise. S-type is for rails with pads, while H-type is for installations without pads. A special rubber pressure tongue holds the rail while helping protect the rail surface.
Optional High-Strength Bolts: Grade 8.8 and 10.9 bolts are available, with custom lengths, head types, matching nuts and hardened washers to suit different base plates.
Glory Rail supplies standard 3124 bolt-type rail clamps and customized fastening solutions for port and industrial projects. Our engineering team can assist with specifications, drawings and installation requirements.
Key Features & Benefits
Exceptional Strength & Reliability
Forged from high-grade steel, the clip resists lateral forces up to 125kN, preventing rail movement and ensuring operational safety.
20mm Horizontal Adjustment
Provides crucial flexibility for installation alignment and compensates for thermal expansion and contraction, simplifying setup and maintenance.
Low Profile Design
Compact geometry ensures compatibility with crane systems that utilize guide rollers, eliminating interference for smooth operation.
Vulcanized Rubber Block
Specially formulated rubber applies controlled, consistent holding force while dampening vibrations and reducing noise.
Proven Global Track Record
Tried and tested design successfully deployed in countless demanding industrial applications worldwide for many successful years.
Simple & Secure Bolting System
Two main components lock together securely upon tightening, creating a rigid, stable, and highly dependable connection for rails.
3124 Rail Clip Specifications
| Attribute | Value | Details |
|---|---|---|
| Model Number | 3124/20/42 | |
| Maximum Side Load | 125kN | (12.7 tonnes); 140kN with 10.9 bolt |
| Horizontal Adjustment | 20mm | |
| Weight | 1.25 kg | Per clip assembly |
| Dimensions (LxH) | 42mm x 50mm | (X x Y with full nut) |
| Rubber Pad Options | S-type (14mm): For use with rail pad H-type (18mm): For use without rail pad | |
| Bolt Grade Options | M24x105, 8.8 or 10.9 (see torque values) | |
Installation & Torque Specifications
Crucial Torque Values
Proper tightening is critical for achieving the advertised load capacity. Always use a calibrated torque wrench and adhere to the following values based on your bolt grade.
| Bolt Grade | Torque (Nm) | Maximum Side Load |
|---|---|---|
| 8.8 | 600 Nm | 125 kN |
| 10.9 | 750 Nm | 140 kN |
For complete and detailed installation instructions, please contact Glory Rail.
Installation Flexibility
The hexagon-headed fixing bolt offers versatile installation options. It can be inserted from either above or below the supporting structure to suit your design constraints. For permanent installations, a welded stud option may also be available—please consult with us for guidance.
Recommended Clip Spacing
The spacing between clips is primarily determined by the lifting capacity of your crane system. Adhering to these guidelines ensures optimal rail support and system integrity.
For Lifting Capacities ≤ 275 tonnes
Space clips at a maximum of 600mm centers.
For Lifting Capacities > 275 tonnes
Space clips at a maximum of 500mm centers.
Rail Compatibility of 3124 Rail Clip
| Rail Type | F (mm) | C (mm) | A (mm) | Rail Weight (kg/m) | Clip Ref. (with pad) | Clip Ref. (without pad) |
|---|---|---|---|---|---|---|
| QU100 | 150 | 100 | 150 | 89 | 3124/20/42 (S) | 3124/20/42 (H) |
| QU120 | 170 | 120 | 170 | 118.5 | 3124/20/42 (S) | 3124/20/42 (H) |
| P 60 | 150 | 73 | 176 | 61 | 3124/20/42 (S) | 3124/20/42 (H) |
| JIS 60 | 145 | 64 | 174 | 60.8 | 3124/20/42 (S) | 3124/20/42 (H) |
| MRS87B(175CR) | 152 | 102 | 152 | 86.8 | 3124/20/42 (S) | 3124/20/42 (H) |
| MRS125 | 180 | 120 | 180 | 125 | 3124/20/42 (S) | 3124/20/42 (H) |
| A100 | 200 | 100 | 95 | 74.3 | 3124/20/42 (S) | 3124/20/42 (H) |
| A120 | 220 | 120 | 105 | 100 | 3124/20/42 (S) | 3124/20/42 (H) |
| A150 | 220 | 150 | 150 | 150.3 | 3124/20/42 (S) | 3124/20/42 (H) |
| CR73 | 140 | 100 | 135 | 73.3 | 3124/20/42 (S) | 3124/20/42 (H) |
| CR100 | 155 | 120 | 150 | 100.2 | 3124/20/42 (S) | 3124/20/42 (H) |
| ISCR100 | 150 | 102 | 150 | 89 | 3124/20/42 (S) | 3124/20/42 (H) |
| ISCR120 | 170 | 120 | 170 | 118.5 | 3124/20/42 (S) | 3124/20/42 (H) |
| 86kgAS | 165 | 102 | 102 | 85.5 | 3124/20/42 (S) | 3124/20/42 (H) |
