ASCE 50 Rail
ASCE 50 Rail, also known as 50 lb rail, is a heavy-duty light rail solution designed for medium to high-load industrial applications. Named for its 50-pound-per-yard (24.855kg/m) weight under ASCE standards, this rail type combines robust durability with operational versatility. Manufactured to ASTM A1 specifications, it is ideal for light cranes, mining operations, port logistics, and industrial railways, delivering reliable performance in demanding environments. Available in materials like Q235B, 55Q, ASCE50 Rail balances strength and cost-effectiveness for long-term industrial use.
Specifications of ASCE 50 Rail:
Size: ASCE50 steel rail / 50lb rail
Length: 12~25m or other length according to customers’ requirement
Material: Q235B,55Q
Standard: ASTM A1
Type: Light Rail

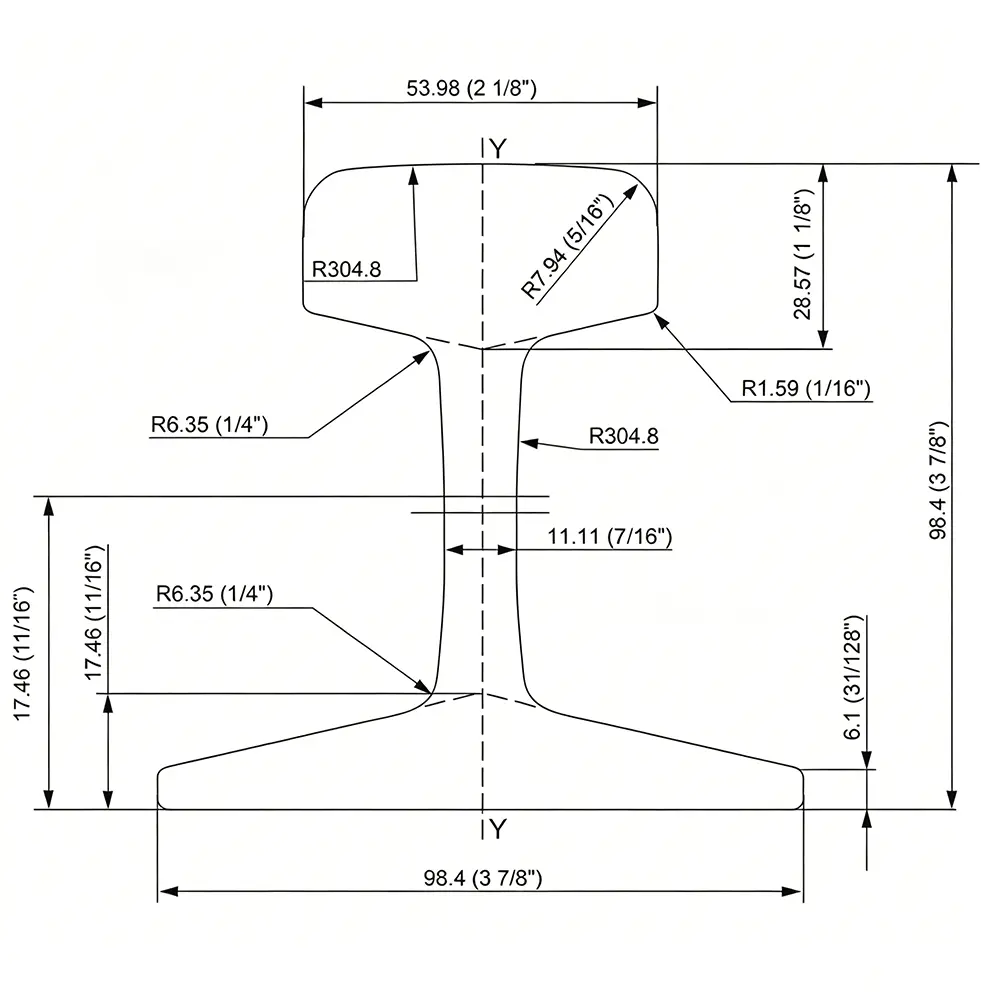

Rail Height: 98.43mm
Bottom Width: 98.43mm
Web Thickness: 11.11mm
Head Width: 54mm
Weight: 24.855kg/m
ASCE 50 Rail Material Parameter
Below are the mechanical and chemical compositions of the primary materials used in 50lb Rail, selected for their durability in heavy-duty light rail applications.
Applications of ASCE 50 Rail
Engineered for heavy-duty light rail needs, 50lb Rail excels in the following sectors:
Industrial Crane Systems
Supports medium to heavy-duty overhead cranes in manufacturing plants, warehouses, and logistics hubs.
Port & Maritime Logistics
Used in port facilities for crane runways and cargo transport tracks in high-activity maritime environments.
Heavy Industrial Railways
Suited for internal rail networks in factories, power plants, and large-scale industrial complexes.
Mining & Quarry Transportation
Enables efficient material hauling in mining sites and quarries with frequent traffic loads.
Advantages of Our ASCE50 Rail
Heavy-Duty Cost Efficiency
Offers enhanced load-bearing capacity (24.855kg/m) at a fraction of the cost of heavy rails.
Customizable Specifications
Tailored to project needs with flexible lengths (12m–25m+), material grades, and dimensional adjustments.
Premium Material Options
Available in Q235B, 55Q steels for adaptability to wear resistance, strength, and corrosion demands.
Easy Installation & Maintenance
Lightweight design reduces setup labor, while high-grade materials minimize long-term maintenance requirements.
Customization Services
Glory Rail offers comprehensive customization for ASCE50 Steel Rail to meet your project’s unique requirements:
- Length Customization: Rails can be produced in lengths from 12m to 25m, or any specific length as needed.
- Material Selection: Choose from Q235B, 55Q steel based on load capacity, environmental factors, and budget.
- Special Treatments: Options for heat treatment, anti-corrosion coating, or surface hardening to enhance performance.
- Standard Compliance: Adaptation to regional standards beyond ASTM A1 upon request.
Core Components for Track Safety
Minimize wear and enhance alignment with high-quality rail accessories.
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
Steel Soleplates
enhance railway durability by distributing loads, adjusting track alignment, damping vibrations.
Rail Pads
Reduce vibration and noise, distribute dynamic loads evenly, and prolong sleeper life.
Request a Quote
Ready to source ASCE 50 Steel Rail for your project? Contact us with the following details for a personalized quote:
- Required rail length and quantity
- Preferred material grade (Q235B, 55Q, )
- Application context (e.g., mining, construction, crane tracks)
- Custom specifications (if any)
Our team will promptly provide a competitive quote tailored to your needs. Reach out today for reliable light rail solutions!
