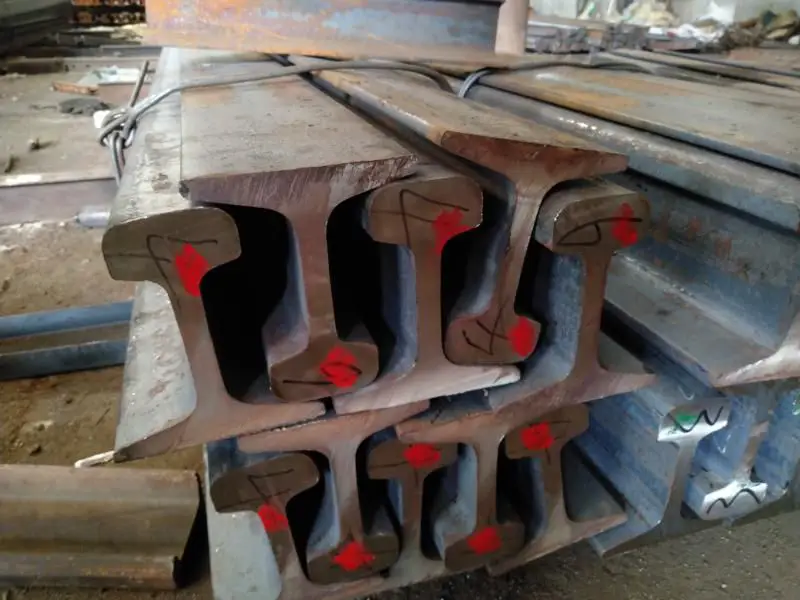

ASCE 60 Rail
ASCE 60 Rail, classified as a light steel rail under ASTM A1 standards, derives its designation from its 60-pound-per-yard weight, translating to 30.1kg/m. Engineered for high-stress industrial applications, this rail balances load-bearing capacity with structural flexibility, making it ideal for crane runways, heavy haulage systems, and industrial track infrastructure. Available in lengths from 12m to 25m (or custom sizes), it features tow steel grade options—Q235B, 55Q—tailored to distinct performance needs in light rail transit and heavy-duty mobility systems.
Every rail delivered with traceable quality assurance

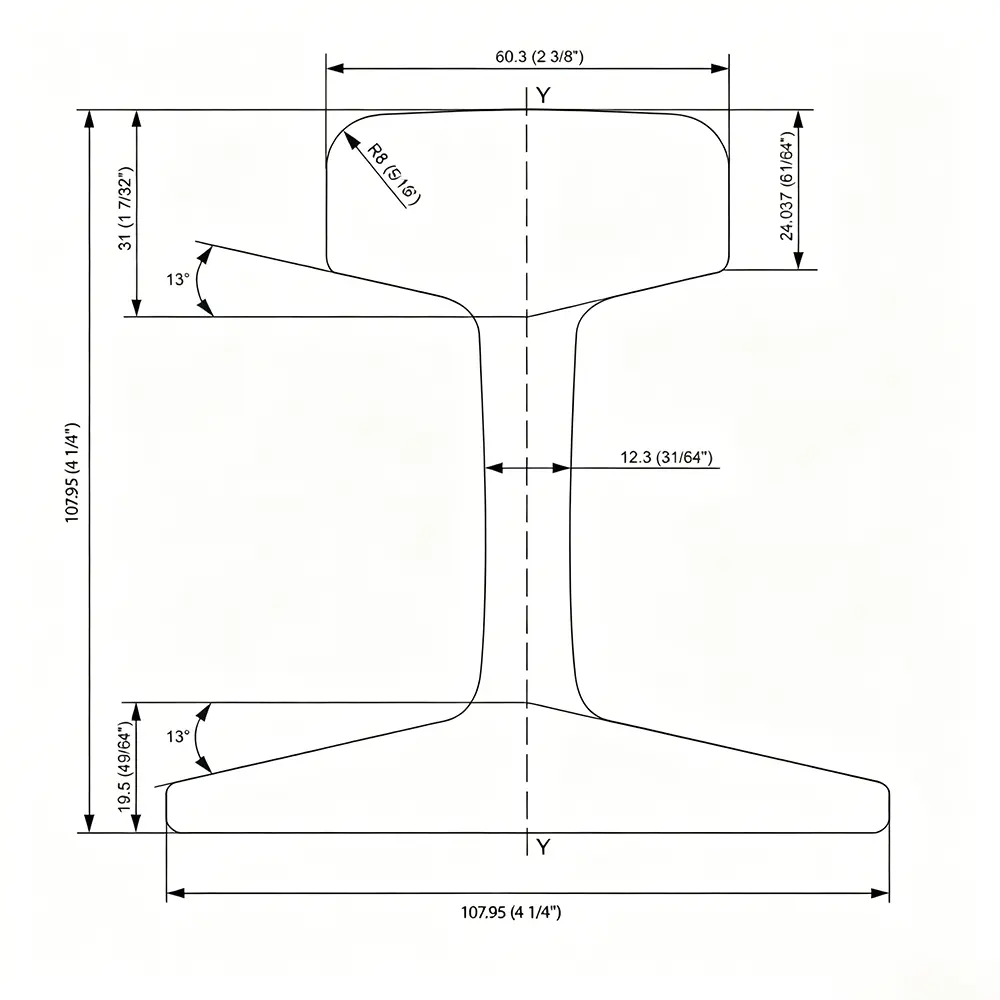

ASCE 60 Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | ASCE60 / 60lb Rail | Rail Type | Light-duty Rail |
| Standard | ASTM A1 | Material | Q235B, 50Q |
| Rail Height | 107.95 mm | Head Width | 60.33 mm |
| Bottom Width | 107.95 mm | Web Thickness | 12.30 mm |
| Weight | 30.10 kg/m | Length | 6-12 m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
ASCE60 Rail Material Parameter
Below are the mechanical and chemical compositions of the primary materials used in 60lb Rail, selected for their durability and performance in light-duty applications.
| Q235 | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
ASCE 60 Rail Applications
ASCE 60 rail (i.e., light rail weighing 60 pounds per yard) is primarily used in medium- and light-load industrial, mining, and temporary rail transportation applications due to its moderate weight and strength.
Specific application scenarios mainly include the following categories:
Industrial Sector
This is the core application area for ASCE 60 rail, commonly found in:
- On-site and logistics tracks: Used for heavy machinery tracks, material transport lines, and automated warehouses within factories, logistics centers, and processing plants.
- Crane travel rails: Support overhead cranes in manufacturing plants, ports, and warehouses to ensure precise load movement.
- Heavy equipment guide rails: Provide guidance for large industrial vehicles and automated transport systems.
Mining and Resources Sector
Widely used in harsh environments such as mines and quarries, where loads are subject to repeated stress:
- Mine transport lines: Used for material transport inside and outside mine shafts.
- Material loading areas: Suitable for areas such as loading zones where loads are moderate but frequency is high.
Temporary and Auxiliary Lines
Due to their ease of installation, they are ideal for temporary or auxiliary lines:
- Temporary Construction Access Roads: Used for temporary track laying at project construction sites.
- Maintenance Aisles: Used for maintenance trolleys or light-duty work vehicles in power plants and vehicle depots.
- Forest Area Transport Branch Lines: Used for light-duty locomotives or temporary transport lines in forest areas, industrial parks, and similar locations.
In addition, they are also used in some branch railways or lightweight transport systems.
Advantages of Our ASCE60 Rail
Versatile Material Options
Q235B for dependable general use (≥235 MPa) or 55Q for high-tensile demands (≥685 MPa) in heavy-duty applications.
ASTM A1 Compliance
Fully meets American standards for smooth integration with global crane runways, industrial tracks, and haulage systems.
Long Lengths, Low Maintenance
Supplied in 12–25 m lengths to reduce joints, with U71Mn grade minimizing wear in high-friction environments.
Precision Fit
Standardized dimensions enable fast alignment, cutting installation time and labor for urgent projects.
End-to-End Support
From technical advice to after-sales service, we ensure optimal performance throughout the rail’s lifecycle.
Glory Rail Custom Processing Services
- Length Optimization: Rails cut to exact lengths (12m-25m) or custom sizes for large-scale track projects.
- Material Tailoring: Choose Q235B (general use), 55Q (high-strength), or U71Mn (wear-resistant) with alloy adjustments for corrosion resistance.
- Surface Treatments: Options include induction hardening, hot-dip galvanization, or anti-rust coating for coastal or high-moisture environments.
- End Machining: Customized rail ends for welded, bolted, or clipped connections, ensuring secure track alignment in crane and haulage systems.
With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established ASTM A1 specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.
ASCE60 Rail System Solutions
Ensure structural integrity and performance with precision-engineered rail accessories
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
Steel Soleplates
enhance railway durability by distributing loads, adjusting track alignment, damping vibrations.
Rail Pads
Reduce vibration and noise, distribute dynamic loads evenly, and prolong sleeper life.
Rail System Integration Support
Technical support available for rail selection, fastening design, and installation planning for ASCE rail systems.
60lb Rail Packaging with Precision
In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.
We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.
Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.
Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
FAQ
Can I customize ASCE 60 rail for my specific project requirements
Absolutely. Available customization includes:
Length: Standard 12–25 m or tailored to your site needs.
Material: Q235B, 55Q.
Surface treatment: Induction hardening, hot-dip galvanizing, or anti-rust painting for harsh environments.
End machining: Bevel cutting, drilling, or joint preparation to match your installation method.
How does ASCE 60 rail perform in corrosive or harsh environments?
When combined with corrosion protection (galvanizing or protective coating) and high-strength steel grades, ASCE 60 can withstand marine climates, high humidity, and abrasive industrial conditions, extending service life and lowering maintenance costs.
What technical and after-sales support is provided for ASCE 60 rail projects?
We assist with material selection, design optimization, and installation guidance, followed by continuous after-sales service to ensure optimal rail performance throughout its lifecycle.
Request a Quote
Ready to source ASCE 60 Light Rail for your project? Contact us with the following details for a customized quote:
- Quantity required (in meters or units)
- Desired length (12m-25m or custom)
- Preferred steel grade (Q235B/55Q/U71Mn)
- Application type (crane runway/industrial haulage/light rail track)
- Customization needs (surface treatment, end machining, alloy specifications)
- Delivery location and timeline
