Gantry Crane Rails
Our complete gantry crane rails and installation systems are engineered to withstand harsh outdoor environments, ground settlement, and high-impact loads. This integrated solution ensures your gantry crane operates with maximum safety, reliability, and efficiency.
The Unique Challenges of Gantry Crane Runways
Gantry crane rails aren’t just “rails on the ground.” Unlike overhead crane rails mounted on elevated beams indoors, they form a complete ground-level system facing unique, harsh challenges. Here’s the core difference and our targeted solutions:
| Comparison | Overhead Crane Rails (Indoor) | Gantry Crane Rails (Outdoor) |
|---|---|---|
| Installation Environment & Core Challenge | Installed on elevated runway beams inside buildings. The challenge lies in installation precision and aerial work. | Laid directly on a ground-level foundation. The core challenges are ground settlement and exposure to outdoor elements. |
| Our Targeted Solution | Supply of high-precision rails and standardized fixings to ensure smooth operation on a stable, existing structure. | Provision of a complete system from foundation design to installation, specifically engineered to handle ground-level complexities. |
Targeted Solutions for the Three Major Challenges of Gantry Cranes:
Ground Settlement & Deformation
→ Solution: Integrated foundation design guidance + Adjustable shim system for long-term stability.Exposed Outdoor Environment
→ Solution: Use of weather-resistant steel + Professional drainage design to resist corrosion and climate impact.High Dynamic & Impact Loads
→ Solution: High-strength QU-series crane rails + Rigid heavy-duty clamp plate fixation system to ensure secure load-bearing.
Gantry Crane Rails in Action
Our High-Performance Crane Rails
Our core offering consists of specialized crane rails, engineered for demanding applications. Unlike standard railroad rails, they feature a wider head and thicker web design, providing superior load-bearing capacity, increased resistance to bending, and exceptional wear resistance—directly translating to longer service life and reduced maintenance for your gantry crane.
We supply a comprehensive range of international standards to meet the specifications of any project, anywhere in the world.
| Standard | Typical Designation | Key Features & Application |
|---|---|---|
| Chinese Standard | QU Crane Rails (e.g., QU70, QU80, QU100, QU120); Heavy Rails (P38, P43) | The most common series for heavy-duty applications. Excellent all-round performance with wide availability. |
| DIN Standard | DIN 536 Crane Rail (e.g., A45, A55, A65, A75, A100, A120, A150) | High-precision profile. The European benchmark for quality and performance in crane and lifting applications. |
| EN Standard | UIC Rails (e.g., UIC54, UIC60, etc.) | Known for robust construction. A traditional and reliable choice for heavy industrial use. |
| American Standard | ASTM Crane Rails (e.g., CR175 /MRS87B/ TR87) | Engineered for very high wheel loads. Commonly specified in North American heavy industry and ports. |
| Japanese Standard | CR Lifting Rail (e.g., CR73, CR100) | High-quality steel with precise dimensions. Suitable for demanding applications in various industries. |
Beyond the Rail: Complete Compatibility

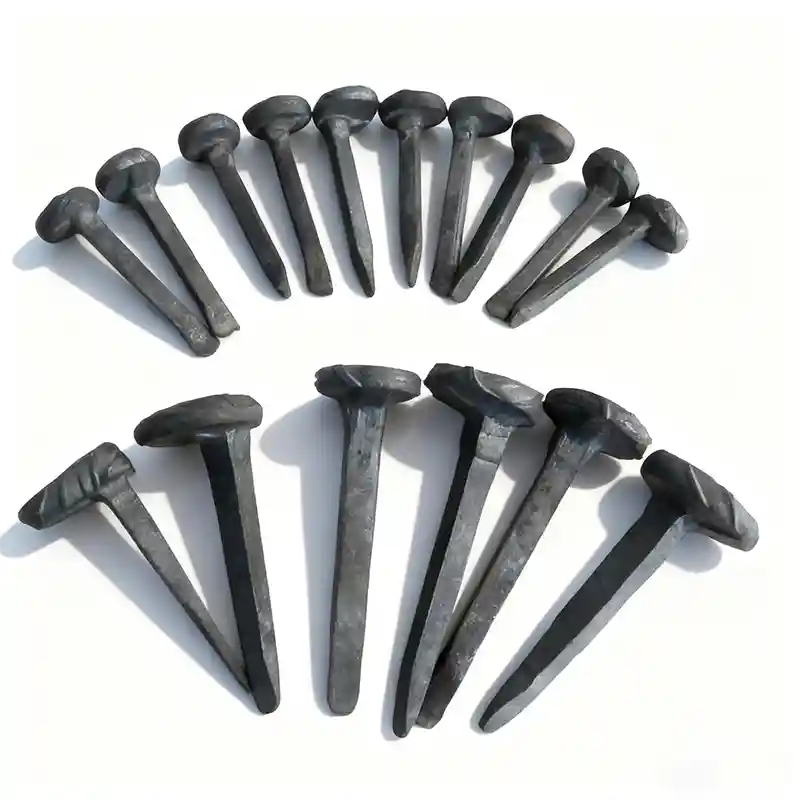

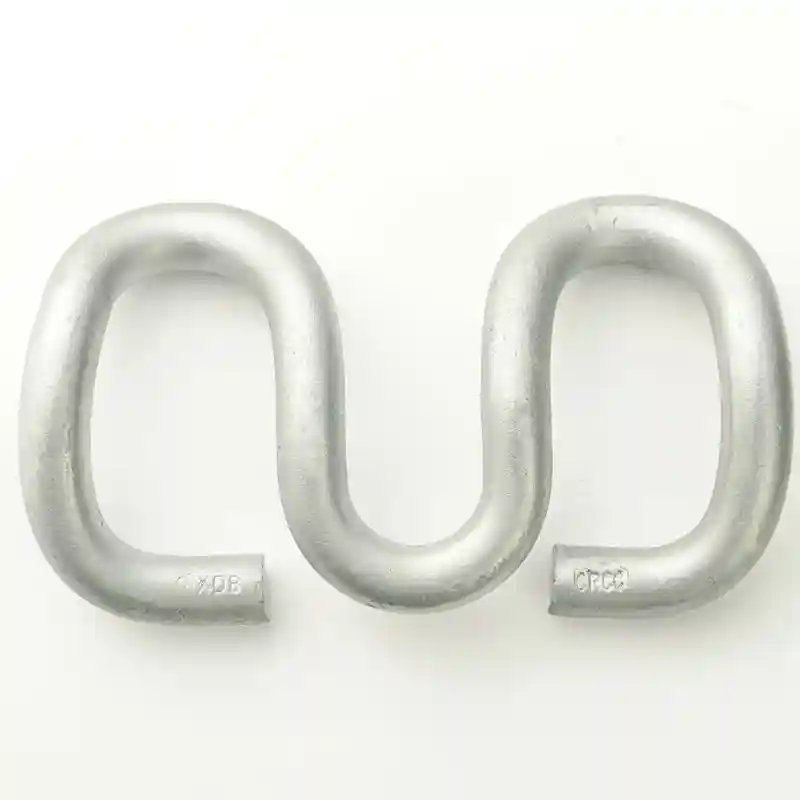

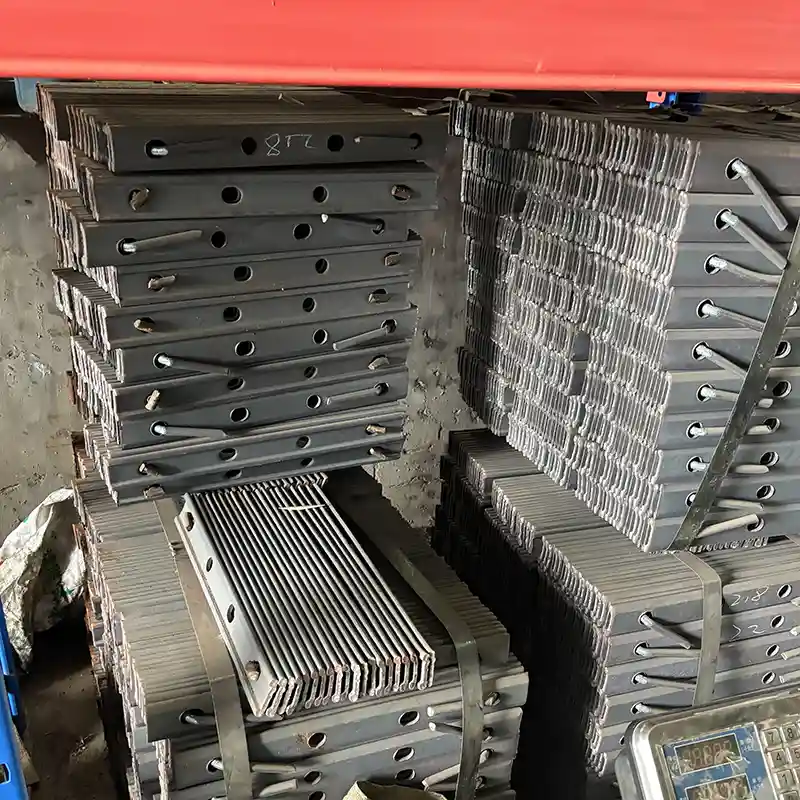

All our rails are designed to work seamlessly with standard rail accessories (clips, fishplates) and our own heavy-duty fixation systems, ensuring a perfectly integrated runway solution.
Need Guidance?
Choosing the right standard and profile is critical. Contact our engineering team for a recommendation based on your specific wheel load, duty cycle, and regional compliance needs.
More Than Just Rail: The Complete Locking System
A reliable crane runway is a complete system. We ensure your rails are permanently secured and precisely aligned with our engineered components.

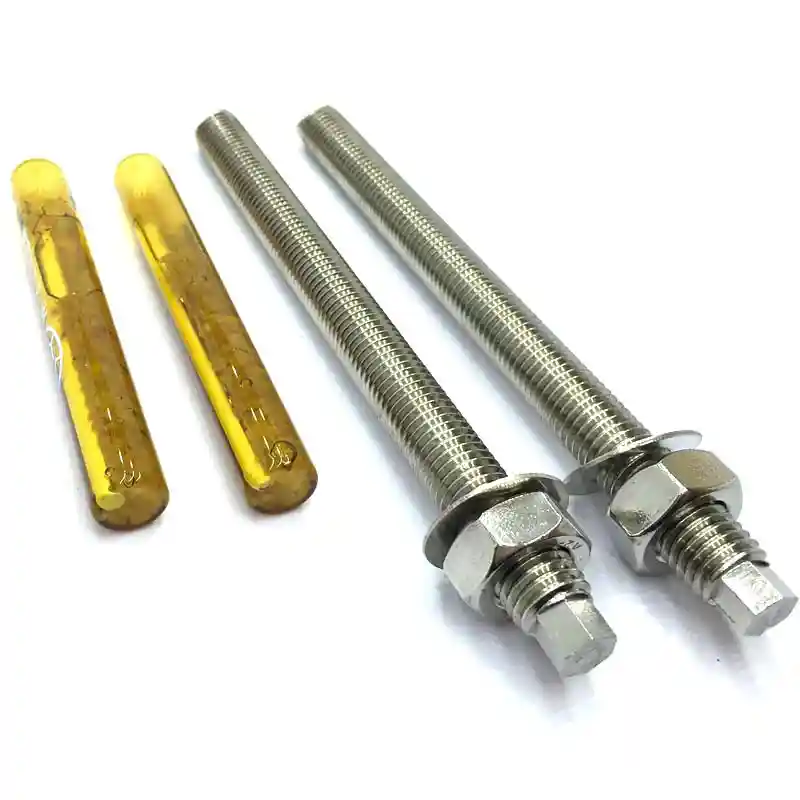

Strong Foundation: Requires proper concrete strength and precisely embedded anchor points (plates or bolts) for a secure base.
Precise Leveling: Adjustable steel shim packs compensate for uneven concrete, allowing exact rail height and leveling.
Secure Fixing: Heavy-duty clamp plates (with horizontal adjustment) and anti-loosening bolts lock the rail down permanently, preventing movement under load.
Guaranteed Accuracy: We adhere to strict standards for gauge, level, and joint alignment to ensure smooth, safe operation.
A Complete Rail System Package
Essential Maintenance Checklist
Protect your investment with these simple, regular checks:
Inspect Fixation Bolts: Periodically check for and re-tighten any loose bolts on clamp plates.
Monitor Track Geometry: Regularly survey for changes in rail level, alignment, or gauge that may indicate foundation movement.
Clear Drainage Systems: Ensure all drainage channels around the foundation are kept clear to prevent water accumulation and subgrade softening.
Get a Tailored Solution for Your Project
Need gantry crane rails tailored to your project’s load, span, or environment?
Glory Rail offers custom rail specs, fast delivery, and expert technical support.
📩 Request a quote today — let’s build a safer, smoother-running system together.
