115RE Rail
115RE Rail, recognized as 115lb rail or TR57 rail, stands as a premium heavy-duty rail solution engineered to meet rigorous AREMA standards. With a weight of 56.90kg/m (115lb/yd), this rail type combines robust durability with high-strength performance, making it ideal for industrial environments that demand exceptional load-bearing capacity. Tailored for heavy crane systems, port infrastructure, and mining transport networks, 115lb Rail ensures reliable operation under continuous heavy loads, available in high-strength low alloy, intermediate, and standard carbon steel grades to suit diverse project requirements.
Every rail delivered with traceable quality assurance

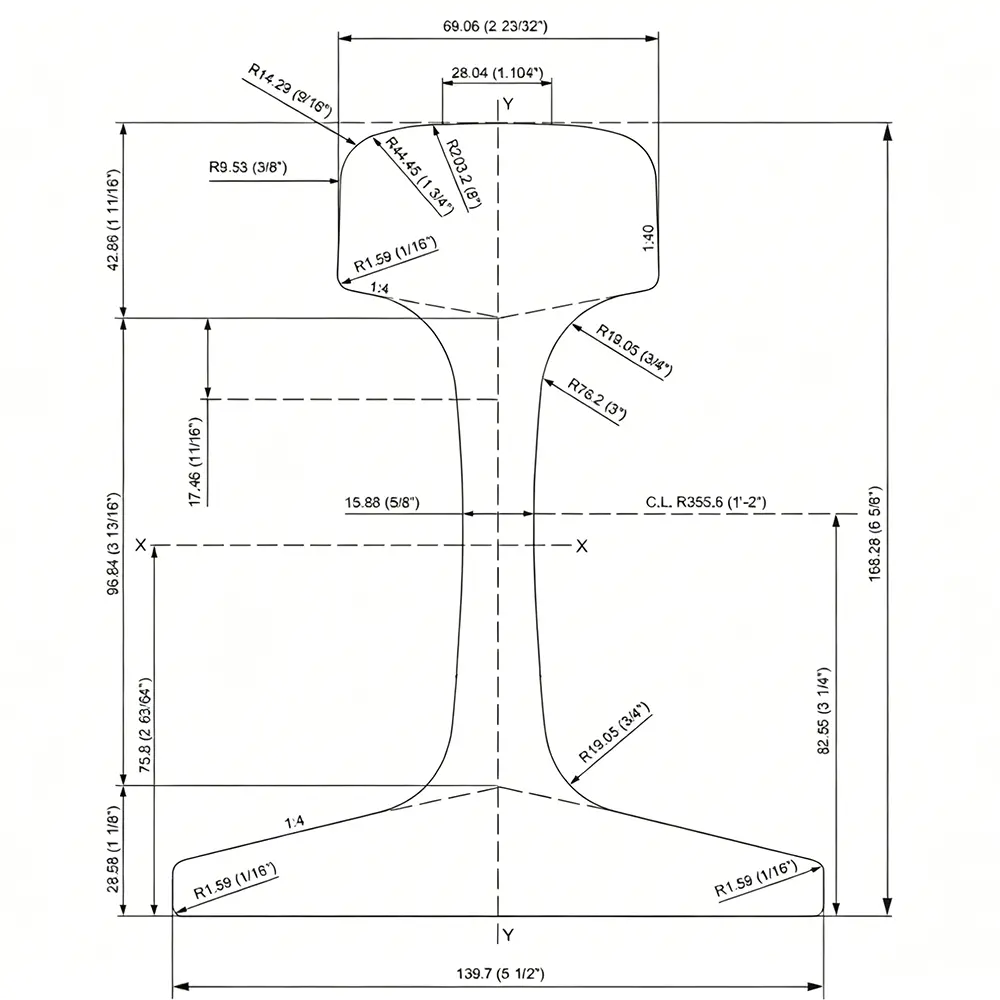

115RE Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | 115RE / TR57 | Rail Type | Transport Rail |
| Standard | AREMA 2019 | Material | HH, IH, SS |
| Rail Height | 168.30 mm | Head Width | 69.1 mm |
| Bottom Width | 139.7 mm | Web Thickness | 15.9 mm |
| Weight | 56.90 kg/m | Length | 12-25 m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
115RE TR57 Rail Material Parameter
Below are the mechanical and chemical compositions of TR57 Rail, engineered to AREMA standards for optimal performance in heavy-duty industrial applications.
| Mechanical Property | |||||
| Specs | Steel Grade | Hardness | Tensile Strength | Yield Strength | Elongation |
| (grade shown on web) | HB | ksi | ksi | % | |
| AREMA | Standard Strength (SS) | ≥ 310 | ≥ 142.5 | ≥ 74.0 | ≥ 10 |
| AREMA | Standard Strength (LA) | ≥ 310 | ≥ 142.5 | ≥ 74.0 | ≥ 10 |
| (with Low Alloy Steel chemistry) | Intermediate Strength (IH) | ≥ 325 | ≥ 147.0 | ≥ 80.0 | ≥ 8 |
| (with Carbon Steel chemistry) | Intermediate Strength (IS) | ≥ 350 | ≥ 155.0 | ≥ 105.0 | ≥ 10 |
| High Strength / Head Hardened (HH) | ≥ 370 | ≥ 171.0 | ≥ 120.0 | ≥ 10 | |
| High Strength / Head Hardened (LH) | ≥ 370 | ≥ 171.0 | ≥ 120.0 | ≥ 10 | |
| Chemical Composition | ||||||||||
| AREMA 2019 | C | Mn | P | S | Si | Ni | Cr | Mb | V | Al |
| % | % | % | % | % | % | % | % | % | % | |
| Low Alloy Steel (for Std Strength) | 0.72 – 0.82 | 0.80 – 1.10 | ≤ 0.020 | ≤ 0.020 | 0.10 – 0.50 | ≤ 0.15 | 0.25 – 0.40 | ≤ 0.050 | ≤ 0.010 | ≤ 0.005 |
| Low Alloy Steel (for Int. & High Strength) | 0.72 – 0.82 | 0.70 – 1.25 | ≤ 0.020 | ≤ 0.020 | 0.10 – 1.00 | ≤ 0.15 | 0.40 – 0.70 | ≤ 0.050 | ≤ 0.010 | ≤ 0.005 |
| Carbon Steel | 0.74 – 0.86 | 0.75 – 1.25 | ≤ 0.020 | ≤ 0.020 | 0.10 – 0.60 | ≤ 0.25 | ≤ 0.30 | ≤ 0.060 | ≤ 0.010 | ≤ 0.010 |
Applications of 115RE Rail
Engineered to excel in high-intensity industrial settings, 115lb Rail thrives in the following sectors:
Port and Terminal Use
Supports efficient container handling and cargo transport in ports, maintaining strength under frequent high-load cycles.
Mining and Quarrying
Handles heavy material transport in mining and quarry sites, ensuring long-lasting durability under constant high-traffic operations.
Heavy Crane Operations
Carries large overhead cranes in steel mills and busy shipyards, delivering stable support under continuous heavy loads.
Industrial Rail Systems
Provides dependable service for mainline industrial rails and heavy-duty tracks, offering superior wear resistance and integrity.
Advantages of Our 115RE TR57 Rail
Exceptional Load Capacity
56.90kg/m weight provides robust support for heavy machinery and continuous high-impact loads in industrial applications.
Material Flexibility
Available in high-strength low alloy, intermediate, and standard carbon steel grades to optimize performance for specific load demands.
AREMA Compliance
Meets strict AREMA engineering standards, ensuring safety, performance, and compatibility with global industrial track systems.
Customized Solutions
Offers flexible length customization (12m–25m+), material selection, and surface treatments to address unique project requirements.
115RE Rail Custom Processing Services
Glory Rail offers tailored solutions for 115lb Rail to meet your project’s unique needs:
- Precision Length Cutting: Rails custom-cut to exact lengths between 12m–25m or personalized dimensions as required.
- Material Grade Optimization: Expert guidance in selecting high-strength low alloy, intermediate, or carbon steel based on load capacity and environmental factors.
- Surface Treatment Solutions: Options for head hardening, anti-corrosion coating, and heat treatment to enhance wear resistance in harsh conditions.
With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established AREMA 2019 specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.
Reliable Track Support Components
Ensure consistent performance and structural integrity across your rail network.
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
Steel Soleplates
enhance railway durability by distributing loads, adjusting track alignment, damping vibrations.
Rail Pads
Reduce vibration and noise, distribute dynamic loads evenly, and prolong sleeper life.
Global Shipping & Logistics: Your Partner in Reliable 115RE Rail Delivery
In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.
We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.
Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.
Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
FAQ for 115RE Rail
How does TR57 rail compare to other AREMA rail profiles in performance?
Compared to lighter profiles such as 90RA or 100RE, 115LB rail provides higher load-bearing capacity and better stability under heavy axle loads. This makes 115lb rail a preferred choice for mainline freight railways, mining haulage, and port tracks requiring robust performance.
Can 115LB rail be supplied with corrosion protection coatings?
Yes, TR57 rail can be customized with anti-corrosion coatings such as hot-dip galvanizing, epoxy paint, or specialized thermal spray metal coatings. These treatments help 115lb rail withstand harsh climates, coastal environments, and chemical exposure.
What processing services are available for 115LB rail orders?
Suppliers can provide value-added processing for 115LB rail, including cutting to length, drilling bolt holes, bevel cutting, and welding of rail joints. This ensures that 115lb TR57 rail is ready for immediate installation upon arrival at your project site.
