ASCE 30 Rail

ASCE 30 Rail, also known as 30 lb rail, is a robust light rail solution engineered for medium-duty applications. Named for its 30-pound-per-yard (15.2kg/m) weight under ASCE standards, this rail type combines durability, cost-effectiveness, and versatility. Manufactured to ASTM A1 specifications, it is ideal for light cranes, mining operations, industrial plants, ports, and railways, providing reliable performance for light to medium-load track systems. Available in materials like Q235B, 55Q steel, ASCE30 Rail caters to diverse industrial needs with proven structural integrity for efficient material transportation and logistics.

Every rail delivered with traceable quality assurance

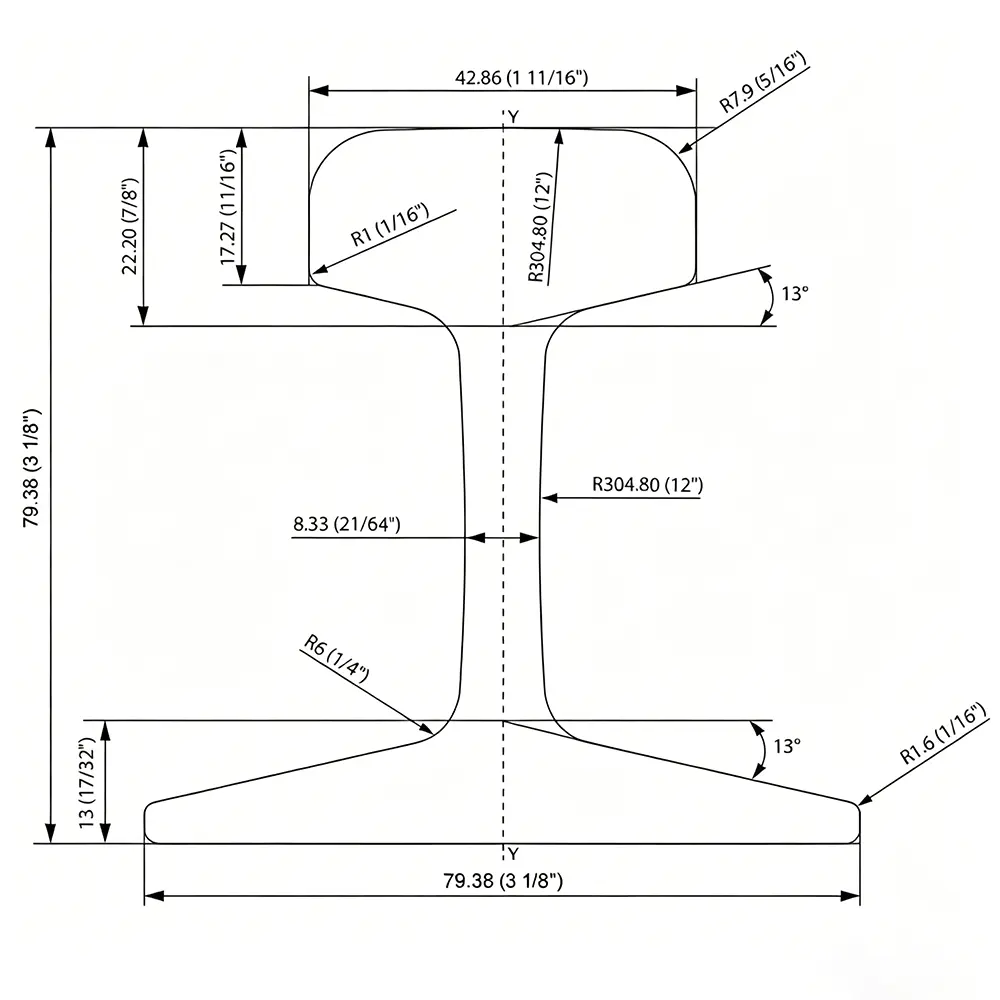

ASCE 30 Rail Specifications

Parameter	Value	Parameter	Value
Rail Size	ASCE30 / 30lb Rail	Rail Type	Light-duty Rail
Standard	ASTM A1	Material	Q235B, 55Q, u71Mn
Rail Height	79.38 mm	Head Width	42.86 mm
Bottom Width	79.38 mm	Web Thickness	8.33 mm
Weight	15.20 kg/m	Length	6-12 m or customized

For custom lengths or higher-strength materials, please contact our team for tailored production solutions.

ASCE 30 Rail Material Parameter

Below are the mechanical and chemical compositions of the primary materials used in 30lb Rail, selected for their durability and performance in light to medium-duty applications.

Q235	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HB		≤		≤	≤
	≥	≥
	235	24	375-460	38-47	26%		0.12-0.22	0.35	0.30-0.70	0.045	0.045

55Q	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HBW				≤	≤
	≥	≥	≥	≥	min	≥				≤	≤
			685	69		197	0.50-0.60	0.15-0.35	0.60-0.90	0.04	0.04

U71Mn	Mechanical Property						Chemical Composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HBW	C	Si	Mn	≤	≤
	—	—-	≥880	—	9%	260	0.65-0.76	0.15-0.35	1.10-1.40	0.030	0.030

ASCE30 Rail Applications

The ASCE 30 rail refers to lightweight steel rails (Light Rail) that comply with the standards of the American Society of Civil Engineers (ASCE) and have a weight of 30 pounds per yard (approximately 14.9 kilograms per meter). Due to its smaller cross-sectional dimensions, lighter weight, and moderate load-bearing capacity, it is mainly used in low-speed, light to medium-load specific industrial, engineering, and transportation scenarios.

Here are the main application scenarios of the ASCE 30 track:

1. Rails for Cranes and Lifting Equipment

In industrial and warehousing settings, ASCE 30 rails are commonly used as running rails for cranes.
Gantry Cranes: Used as travel tracks for small- to medium-sized outdoor gantry cranes.
Overhead Cranes and Jib Cranes: Provide track support for light- or medium-duty overhead cranes inside factory workshops.
Supporting Requirements: These applications typically require specialized crane wheels and track fasteners to ensure smooth operation and minimize wear.

2. Industrial In-Plant Logistics and Material Handling

Inside Factory Workshops: Used for material flow within factories engaged in heavy machinery manufacturing, metallurgy, automotive assembly, and similar operations.

Warehouses and Logistics Centers: Tracks are laid in large warehouses to facilitate the horizontal transport of heavy cargo using rail-mounted flat cars or hand-pushed mine cars.

3. Mining, Quarries, and Forestry

Mine Narrow-Gauge Railways: Used for underground or surface narrow-gauge transportation in small coal mines and metal mines to transport ore, coal, equipment, or personnel.

Quarries and Forestry: Temporary or semi-permanent transport lines are laid within quarries or forest areas to transport bulk materials such as stone and timber.

4. Railroad Sidings and Marshalling Yards (Railroad Track Components)

In standard railroad systems, light rail such as ASCE 30 is typically not used on main lines but rather in auxiliary areas:

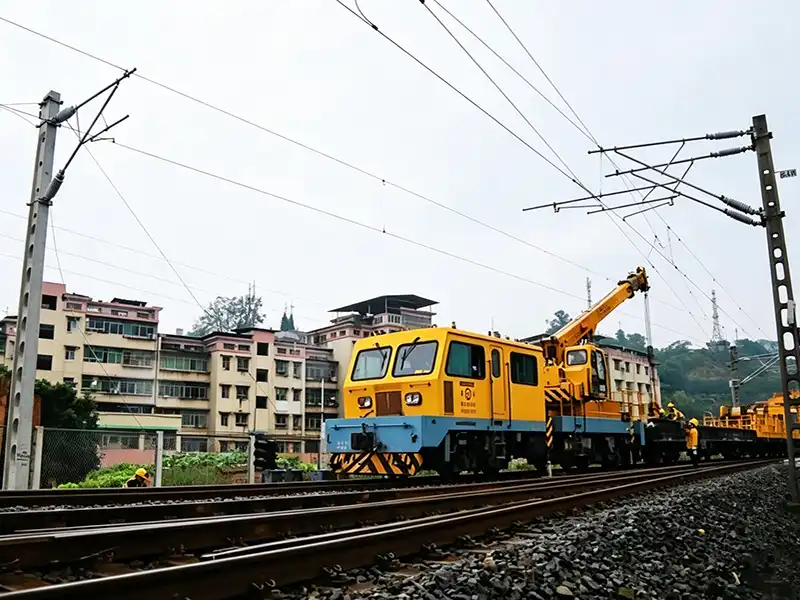

Railroad Sidings: Used for temporary train stops, passing, or loading and unloading of cargo.
Marshalling Yards and Classification Yards: Used for low-speed shunting operations, as well as track laying in switch areas and at crossings.
Industrial Rail Lines: “Last-mile” branch lines connecting the main railway network to factories and ports.

5. Light Rail and Special-Purpose Tracks

Narrow-Gauge Railways and Trams: Used for early or topographically constrained narrow-gauge passenger and freight railways.
Scenic Areas and Theme Parks: Used for sightseeing trains, forest railways, or amusement tracks within theme parks.
Ropeways and Cable Car Systems: Support tracks for certain ground-level cable cars or inclined ropeways.

6. Construction and Temporary Projects

Temporary Transport Lines: Used in large-scale infrastructure projects (such as dam, bridge, and tunnel construction) to lay temporary tracks for transporting concrete, earth, and construction materials. These tracks are easily dismantled and recycled upon project completion.

Advantages of Our ASCE30 Rail

Balanced Cost-Efficiency

Offers budget-friendly performance without compromising on mechanical strength for light-load applications.

Customizable Specifications

Tailored to project needs with flexible lengths (12m–25m+), material grades, and dimensional adjustments.

Durable Material Options

Available in Q235B, 55Q steels, ensuring adaptability to different load capacities, wear resistance, and environmental demands.

Easy Installation & Maintenance

Lightweight design reduces installation labor costs, while robust materials minimize long-term upkeep requirements.

Custom processing for ASCE 30

Glory Rail has a full fabrication shop for ASCE 30. We can cut rails to exact length, drill holes for any pattern (including non‑standard layouts), induction harden the head, and apply laser or stamp marking for full traceability.

We also offer cold and hot bending – useful for curved track sections, turntables, and crane runways.

Precision rail end beveling is available if you need a custom head profile.

For corrosion protection, we do hot‑dip galvanizing and other advanced surface treatments.

And we can machine bolt hole configurations to match special mounting requirements – slotting, countersinking, or multiple rows.

Rail Anti-Corrosion Coating — intermediate layer coating

With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered rail systems designed for demanding industrial applications. Operating under established ASCE specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.

ASCE30 Rail System Solutions

Ensure structural integrity and performance with precision-engineered rail accessories

Rail System Integration Support

Technical support available for rail selection, fastening design, and installation planning for ASCE rail systems.

Global Shipping & Logistics: Your Partner in Reliable ASCE 30 Rail Delivery

In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.

We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.

Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.

Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
