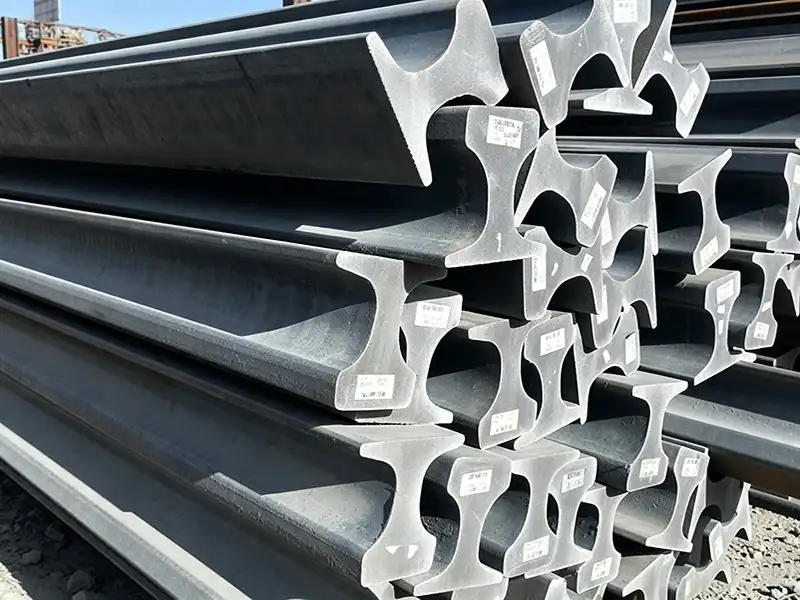

CR100 Rail

CR100 rail is a robust Japanese standard crane rail engineered for extreme heavy-duty applications. Compliant with JIS E 1103-93/JIS E 1101-93 standards and forged from U71Mn steel, it combines exceptional load-bearing capacity with precise dimensional stability. Designed to support large cranes and heavy machinery, its reinforced structure ensures consistent performance in high-stress industrial environments, making it a trusted choice for critical lifting operations.

Specifications of CR100 Rail:

Size: JIS CR100 Steel Rail
Length: 12m or other length according to customers’ requirement
Material: U71Mn
Standard: JIS E 1103-93/JIS E 1101-93
Type: Crane Rail
Rail Height: 150mm
Bottom Width: 155mm
Web Thickness: 39mm
Head Width: 120mm
Weight: 100.2kg/m

CR100 Rail Material Parameter

U71Mn steel forms the core of CR100 crane rail, delivering the mechanical strength and chemical stability required for heavy-duty use.

Applications of CR100 Rail

JIS CR100 Steel Rail is tailored for scenarios demanding superior strength to handle massive loads and continuous movement.

Mining Heavy Tracks

It provides a rugged base for large mining cranes, performing reliably in dusty, high-vibration underground or open-pit settings.

Steel Mill Overhead Cranes

It supports heavy-duty overhead cranes in steel mills, enduring high temperatures and the stress of moving molten metal containers.

Shipyard Crane Tracks

It forms a durable foundation for shipyard gantry cranes, withstanding the weight of vessel components and frequent lifting cycles.

Container Terminal Rails

It enables efficient operation of container-handling cranes, maintaining stability under the weight of stacked shipping containers.

Advantages of Our CR100 Rail

Exceptional Load-Bearing Capacity

U71Mn steel with high tensile strength ensures resistance to bending or deformation, even under extreme weights.

Seamless Global Compatibility

Adherence to JIS standards guarantees alignment with international crane systems, simplifying cross-border project integration.

Optimized Wear Resistance

Precise 150mm height and 155mm base width ensure tight contact with crane wheels, minimizing friction and extending service life.

Enhanced Structural Durability

A 39mm thick web reinforces rigidity, reducing fatigue in high-frequency lifting and movement operations.

Custom Services

We offer tailored solutions to align JIS CR100 Steel Rail with your project’s unique demands, ensuring seamless installation and performance.

Custom length cutting, from standard 12m to specialized sizes, matching your facility’s layout with precision.
Precision machining (drilling, milling, end-facing) to fit crane system specifications, eliminating assembly gaps.
Supply of components (rail clips, fish plates, bolts) for complete rail assemblies, streamlining procurement.
Technical guidance on installation and maintenance, optimizing rail performance throughout its operational lifespan.

Dependable Accessories. Seamless Track Function.

Glory Rail provides essential components for smooth, safe, and stable rail operations.

Request a Quote

To get a tailored quote for CR100 crane rail, please provide:

Your project type (e.g., shipyard crane system, steel mill track, container terminal).
Required quantity and custom length (if different from standard 12m).
Specific processing needs (e.g., drilling, cutting, or component requirements).
Target delivery timeline and project location for logistics planning.

Contact our team with these details, and we’ll respond promptly with a competitive quote and expert recommendations.

Glory Rail – Your Trusted Partner for High-Performance CR100 Crane Rail Solutions.
