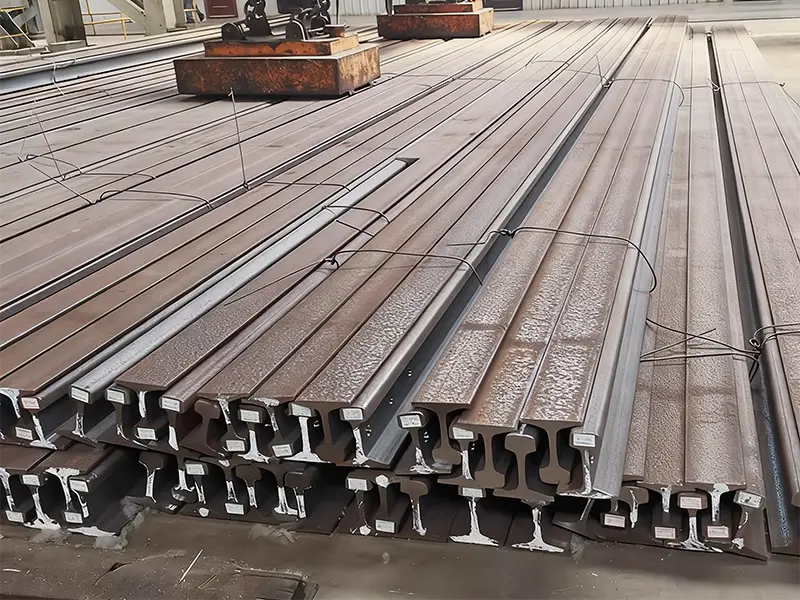

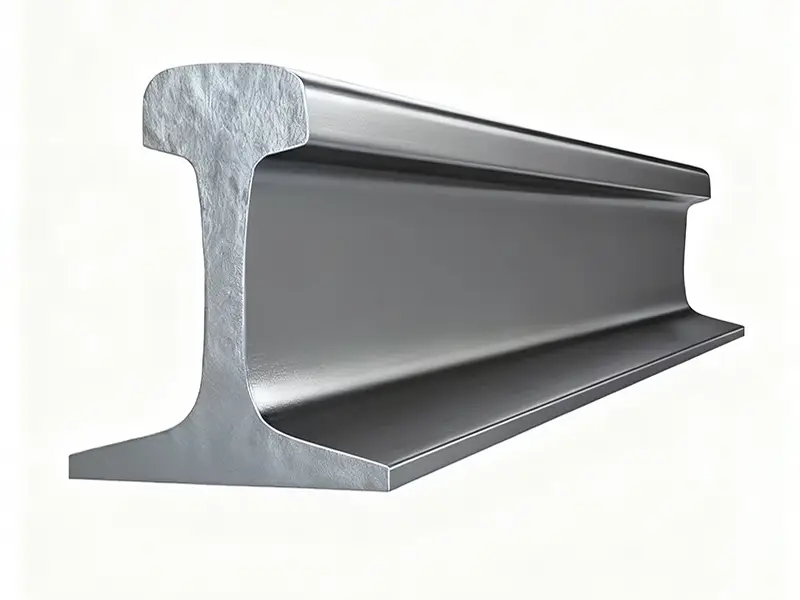

119lb Rail

119lb Rail, also known as AREMA 119RE rail, represents a pinnacle of heavy-duty rail engineering, designed for high-load applications demanding uncompromised reliability. With a weight of 58.86kg/m (119lb/yd), this rail type combines AREMA compliance with advanced material science, making it ideal for mainline railways, heavy industrial cranes, and port logistics. Available in high-strength low alloy, intermediate, and standard carbon steel grades, 119re Rail delivers superior performance under continuous heavy loads, balancing structural integrity with installation flexibility.

Every rail delivered with traceable quality assurance

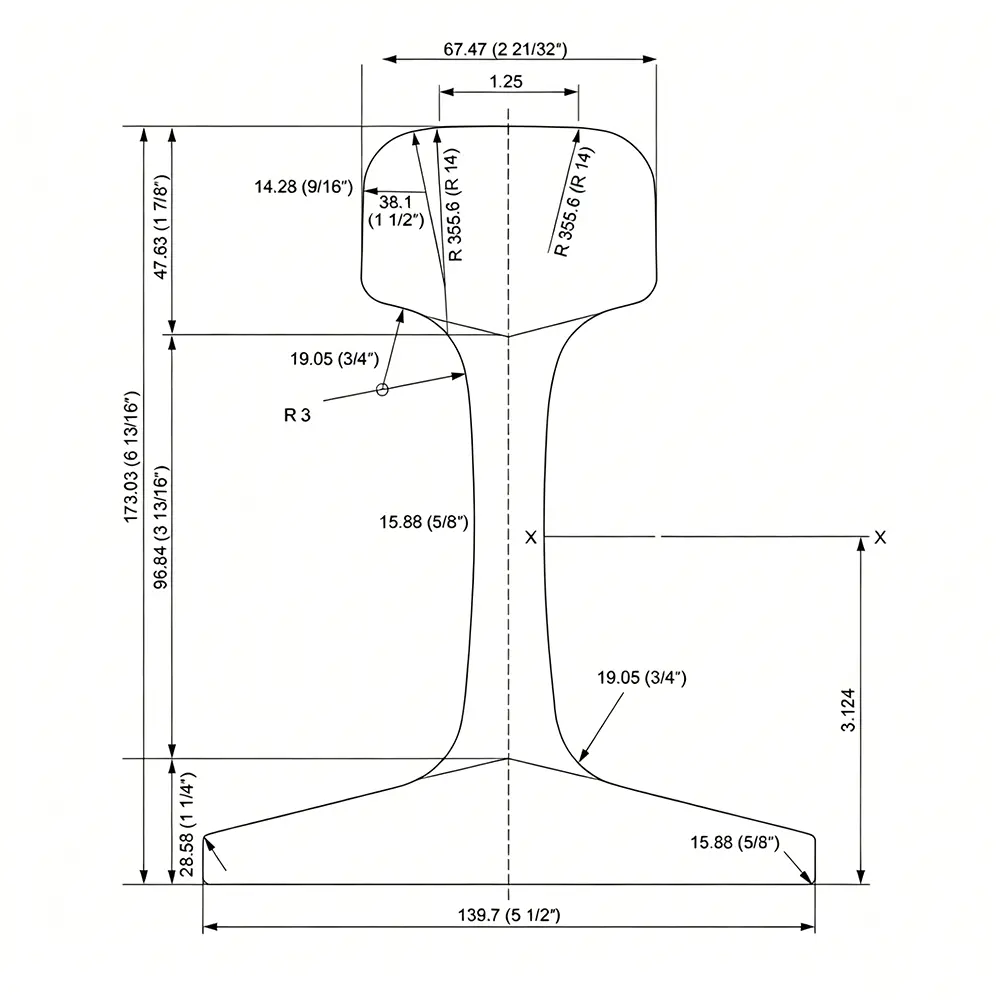

119RE Rail Specifications

Parameter	Value	Parameter	Value
Rail Size	119RE / 119LB	Rail Type	Transport Rail
Standard	AREMA 2019	Material	HH, IH, SS
Rail Height	173.10 mm	Head Width	67.5 mm
Bottom Width	139.7 mm	Web Thickness	15.9 mm
Weight	58.86 kg/m	Length	12-25 m or customized

For custom lengths or higher-strength materials, please contact our team for tailored production solutions.

119lb Rail Material Parameter

Below are the mechanical and chemical compositions of 119re Rail, engineered to AREMA 2019 standards for optimal performance in heavy-duty environments.

Mechanical Property
Specs	Steel Grade	Hardness	Tensile Strength	Yield Strength	Elongation
Specs	(grade shown on web)	HB	ksi	ksi	%
AREMA	Standard Strength (SS)	≥ 310	≥ 142.5	≥ 74.0	≥ 10
AREMA	Standard Strength (LA)	≥ 310	≥ 142.5	≥ 74.0	≥ 10
(with Low Alloy Steel chemistry)	Intermediate Strength (IH)	≥ 325	≥ 147.0	≥ 80.0	≥ 8
(with Carbon Steel chemistry)	Intermediate Strength (IS)	≥ 350	≥ 155.0	≥ 105.0	≥ 10
	High Strength / Head Hardened (HH)	≥ 370	≥ 171.0	≥ 120.0	≥ 10
	High Strength / Head Hardened (LH)	≥ 370	≥ 171.0	≥ 120.0	≥ 10

Chemical Composition
AREMA 2019	C	Mn	P	S	Si	Ni	Cr	Mb	V	Al
AREMA 2019	%	%	%	%	%	%	%	%	%	%
Low Alloy Steel (for Std Strength)	0.72 – 0.82	0.80 – 1.10	≤ 0.020	≤ 0.020	0.10 – 0.50	≤ 0.15	0.25 – 0.40	≤ 0.050	≤ 0.010	≤ 0.005
Low Alloy Steel (for Int. & High Strength)	0.72 – 0.82	0.70 – 1.25	≤ 0.020	≤ 0.020	0.10 – 1.00	≤ 0.15	0.40 – 0.70	≤ 0.050	≤ 0.010	≤ 0.005
Carbon Steel	0.74 – 0.86	0.75 – 1.25	≤ 0.020	≤ 0.020	0.10 – 0.60	≤ 0.25	≤ 0.30	≤ 0.060	≤ 0.010	≤ 0.010

Applications of 119lb Rail

Precision-engineered for demanding infrastructure projects, the 119RE rail is trusted across multiple high-impact sectors:

Mainline Rail Systems

Handles heavy freight and passenger traffic, ensuring track stability under high-speed and high-load conditions.

Mining Transportation Lines

Designed for rugged mining routes, enabling reliable material haulage across high-traffic, harsh environments.

Port & Terminal Operations

Supports efficient port logistics, built to withstand repeated impacts from container handling equipment.

Industrial Crane Tracks

Ideal for overhead crane rails in mills and factories, consistently maintaining structural strength under continuous lifting operations.

Advantages of Our 119lb Rail

High Load Endurance

With a weight of 58.86kg/m, it delivers strong support under heavy equipment with reduced track wear.

AREMA-Certified Performance

Meets rigorous AREMA standards for safety, compatibility, and long-term performance in critical applications.

Flexible Steel Grades

Choose from high-strength low alloy, intermediate, or standard carbon steels to optimize for wear resistance and cost.

Project-Based Customization

Offered in custom lengths, profiles, and finishes to meet specific technical and engineering needs.

119LB Rail Custom Processing Services

Glory Rail offers comprehensive customization for 119lb Rail to meet project-specific needs:

Precision Length Cutting: Rails manufactured in 12m–25m standard lengths or custom-cut to exact specifications.
Material Grade Selection: Expert guidance to choose high-strength low alloy, intermediate, or carbon steel based on load requirements.
Advanced Surface Treatments: Options for head hardening, anti-corrosion coating, and heat treatment to enhance wear resistance.
International Standard Compliance: Adaptation to regional engineering standards beyond AREMA, ensuring global project compatibility.

With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established AREMA 2019 specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.

Reliable 119RE Rail Systems

Ensure consistent performance and structural integrity across your rail network.

Rail System Integration Support

Technical support available for rail selection, fastening design, and installation planning for AREMA Rail Systems.

Global Shipping & Logistics: Your Partner in Reliable 119LB Rail Delivery

In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.

We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.

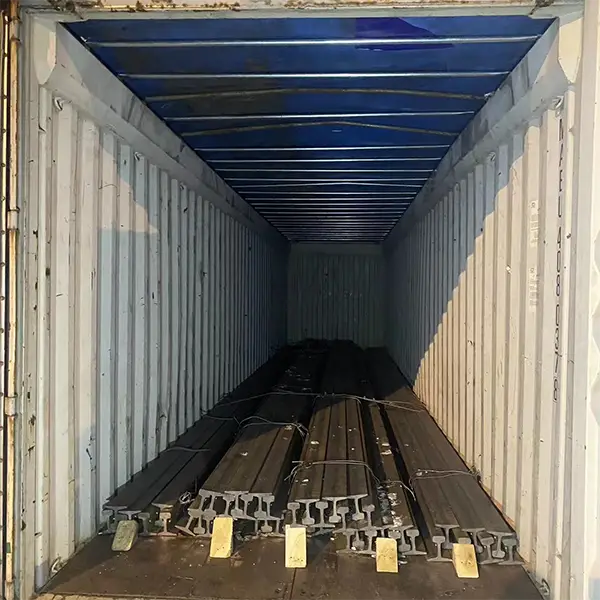

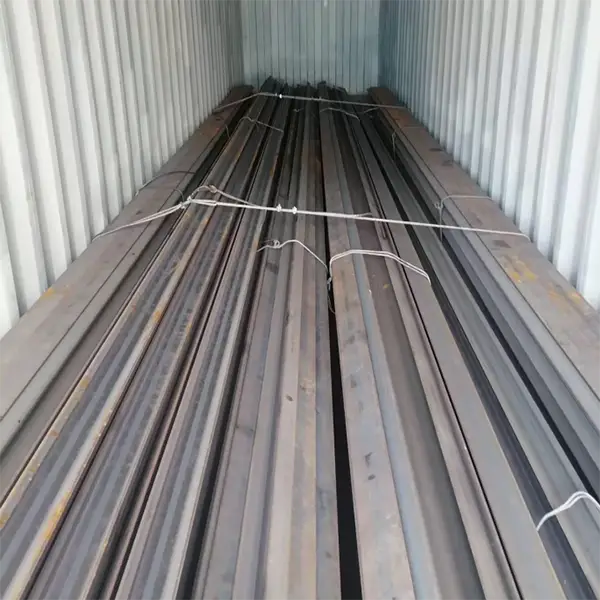

Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.

Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
