JIS 37A Rail
JIS 37A rail is a robust heavy rail engineered for heavy-duty industrial applications. Crafted from high-strength 55Q, 50Mn, and U71Mn steels, it adheres strictly to JIS E 1101-2001 standards, delivering exceptional load-bearing capacity with a 37.2kg/m weight. Designed to withstand intense stress and frequent use, it excels in scenarios requiring reliable support for heavy machinery, making it a cornerstone in mining, crane systems, and industrial tracks.
Every rail delivered with traceable quality assurance

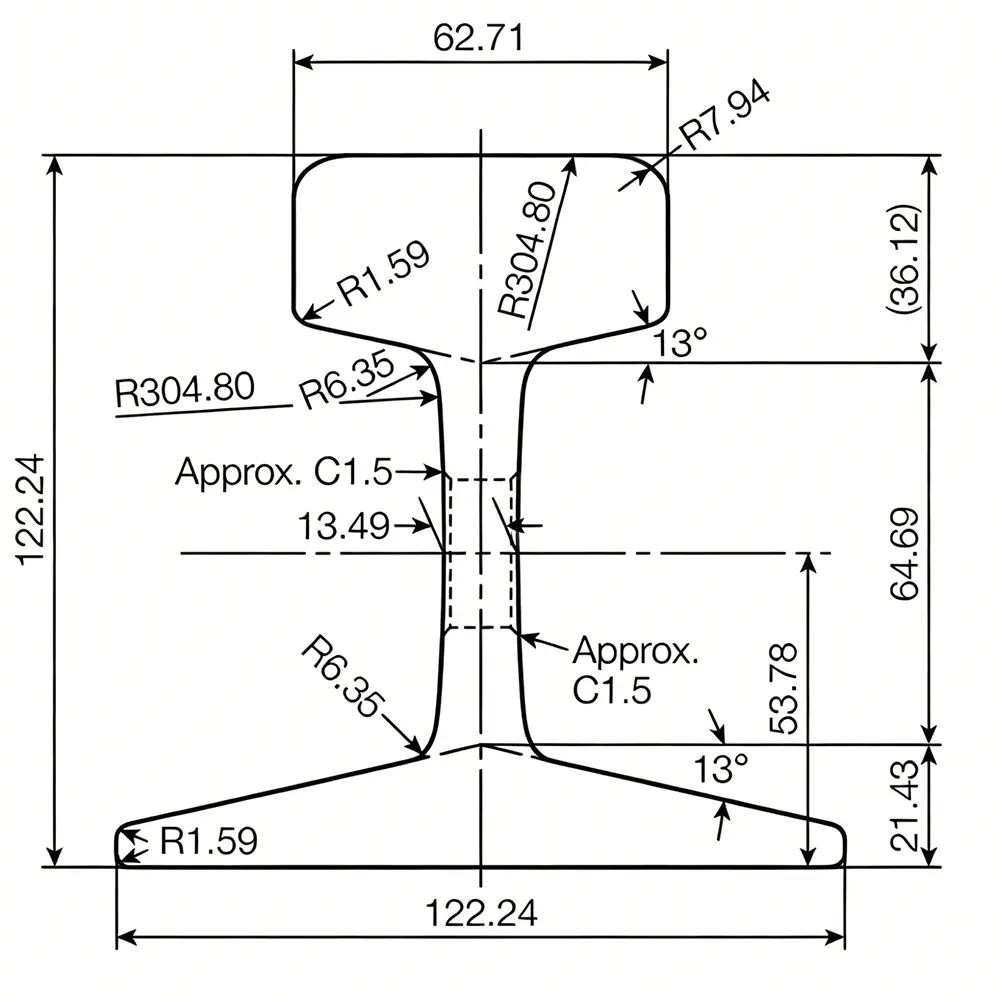

JIS 37A Rail Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rail Size | JIS 37A /37kg | Rail Type | Heavy Rail |
| Standard | JIS E 1101-2001 | Material | U71Mn |
| Rail Height | 122.24 mm | Head Width | 62.71 mm |
| Bottom Width | 122.24 mm | Web Thickness | 13.49 mm |
| Weight | 37.20 kg/m | Length | 6-24 m or customized |
For custom lengths or higher-strength materials, please contact our team for tailored production solutions.
JIS 37A Rail Material Parameter
| U71Mn | Mechanical Property | Chemical Composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| — | —- | ≥880 | — | 9% | 260 | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | 0.030 | 0.030 | |
JIS 37A Rail Applications
JIS 37kg rail is tailored for heavy-duty operations, thriving in environments demanding superior strength and durability under constant heavy loads.
Mining Heavy Transport Routes
It supports large ore carts and mining locomotives, handling substantial payloads reliably in dusty, high-vibration underground conditions.
Factory Heavy Machinery Tracks
It enables smooth movement of industrial presses and assembly-line equipment, withstanding stress from bulky machinery in factories.
Port Crane Runway Systems
It forms stable tracks for gantry cranes, resisting bending from repeated lifting of shipping containers in busy port operations.
Logistics Hub Heavy Transport Lines
It withstands the weight of stacked cargo via rail-guided vehicles, reducing sagging in high-traffic distribution centers with frequent heavy loads.
Custom Solutions for Your JIS 37kg Rail Needs
With decades of engineering experience in rail manufacturing, Glory Rail focuses on delivering precision-engineered crane rail systems designed for demanding industrial applications. Operating under established JIS specifications with ISO-certified quality management, we integrate controlled steel processing and in-process inspection to ensure consistent dimensional accuracy, mechanical performance, and long-term operational reliability.
Full accessory package for JIS 37A Rail Systems
Fishplates (joint bars)
For JIS 37A, our fishplates typically come with four or six bolt holes. Lengths run from 300 mm to 500 mm, thickness 12 mm to 20 mm. A typical bar weighs about 5 lbs (2.27 kg), though exact specs depend on the design code you’re working to. Made from carbon steel – strong enough for light rail applications.
If you need electrical isolation – signal systems, or environments where stray current is a problem – we also supply insulated joint bars made from non‑conductive materials. Those keep stray current where it belongs and improve safety on electrified tracks.
Rail clamps
Clamps stop the rail from shifting sideways. We carry several types: adjustable clamps, weld‑on clamps, and bolt‑down clamps. Pick the one that matches your foundation and load.
Rubber pads (rail seat pads)
Put these under the rail to absorb vibration and impact. Less noise, longer rail life. We offer pads in rubber, polyurethane, and rubber‑plastic composites. You can get continuous full‑length pads or shorter segmented pads – depends on your track layout and how much noise reduction you actually need.
Steel tie plates
These are made from structural grades like Q235B, Q345B, or ASTM A36. Good weldability, good load carrying, and they hold up in most track environments.
Thermite welding kits
For field splicing, we supply complete thermite welding kits. The process uses an exothermic reaction between aluminum and iron oxide to create a high‑strength, fatigue‑resistant joint. No complex power supply needed – you can weld on site quickly. That’s why it’s the go‑to for heavy crane runways and continuous rail installations.
Global Shipping & Logistics: Your Partner in Reliable JIS 37A Rail Delivery
In Glory Rail, shipments of crane rails are coordinated through established logistics networks to ensure timely delivery to major ports worldwide, supported by flexible transport arrangements tailored to project schedules.
We ship crane rails from China to major industrial ports worldwide, including Rotterdam, Hamburg, Singapore, and other global terminals, via sea, air, or multimodal transport.

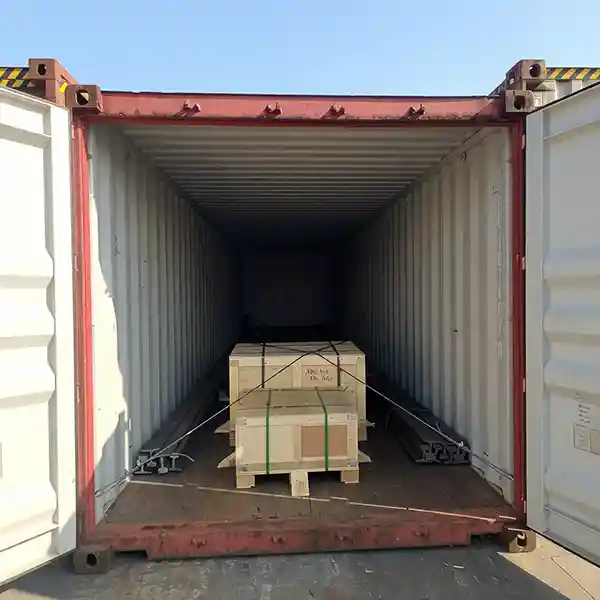

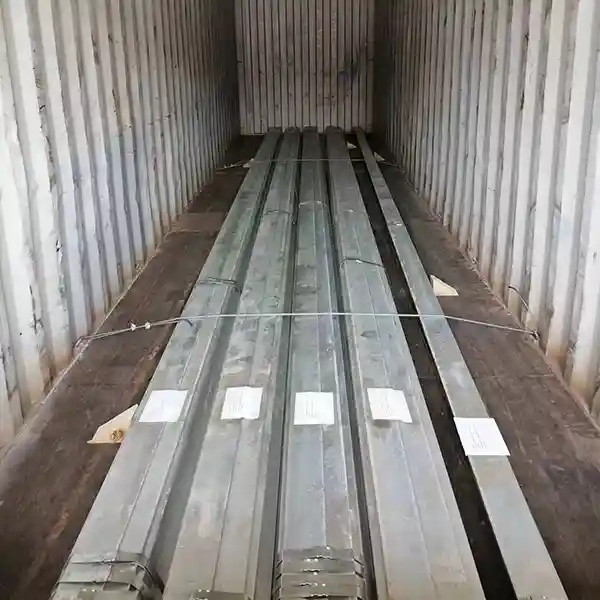

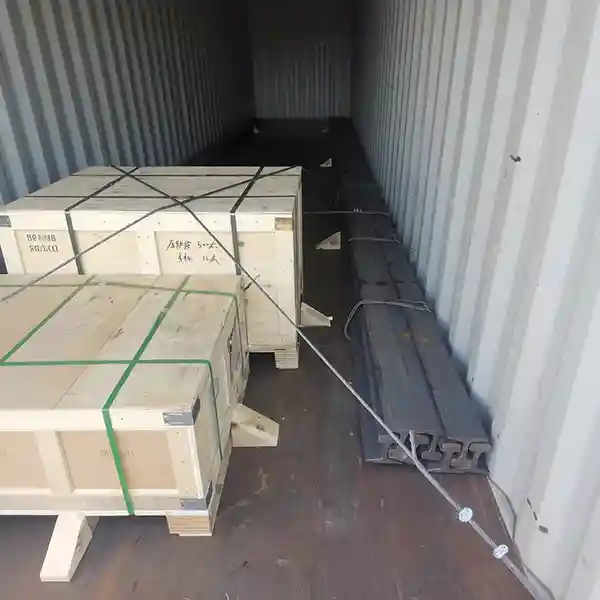

Seaworthy Packaging: Rails are coated for corrosion protection and secured with waterproof wrapping and steel strapping for ocean transport stability. Small components such as clamps and bolts are packed separately with reinforced protection.
Supply Chain & Custom Production: With over 20 years of export experience, Glory Rail works with leading steel mills such as Ansteel and Baowu Group, supporting customized rail production including length adjustment and drilling, with direct factory-to-port shipment.
