Project Overview
Crane Rail System for Saudi Arabia was supplied by Glory Rail for a heavy-duty crane project undertaken by a Turkish engineering contractor in Saudi Arabia. The project required multiple types of crane rails and rail fastening components to support reliable crane operation in an industrial environment.
The supplied materials included QU80 crane rails, QU100 crane rails, 50kg steel rails, and 3120 bolt-type rail clamps. The complete shipment consisted of 7 full containers plus LCL transportation and was delivered from Tianjin, China to Dammam Port, Saudi Arabia, at the end of May 2025.
Through this project, Glory Rail provided not only rail products but also technical coordination related to rail length, installation requirements, and fastening compatibility.
Project Background
The customer was a Turkish engineering contractor responsible for a crane installation project in Saudi Arabia.
For large industrial crane systems, the rail foundation directly affects crane running stability, wheel load distribution, and long-term operating performance. Therefore, selecting suitable crane rails and compatible fastening systems was essential for ensuring safe and efficient crane movement.
Based on the project requirements, Glory Rail supplied different rail profiles according to the application conditions.
Supplied Crane Rail and Fastening Components
The project included the following products:
| Product | Specification |
|---|---|
| Crane Rail | QU80 |
| Crane Rail | QU100 |
| Steel Rail | 50kg Rail |
| Rail Clamp | 3120 Bolt-Type Rail Clamp |
The J-type anchor bolts used for fixing the rail clamps were provided separately by the customer.
Customized Rail Solution for Heavy-Duty Applications
QU80 and QU100 Crane Rails
QU series crane rails are specifically designed for heavy-duty lifting equipment.
Compared with standard railway rails, crane rails feature:
- Wider rail heads for better wheel contact
- Higher resistance against concentrated wheel loads
- Improved stability under repeated crane operation
- Longer service life in industrial applications
The QU80 and QU100 rails supplied in this project were selected according to the requirements of the crane runway system.
3120 Bolt-Type Rail Clamp System
The rail fastening system plays an important role in maintaining track stability.
The supplied 3120 bolt-type rail clamps helped to:
- Secure the rail position
- Reduce lateral movement during crane travel
- Maintain accurate rail alignment
- Improve overall crane operation reliability
Glory Rail also coordinated the clamp specifications with the customer’s J-type anchor bolt system to ensure installation compatibility.
Technical Support During Installation Preparation
One important technical discussion during the project involved the actual rail length.
The customer noticed that the supplied rail length was slightly longer than 12,000 mm, with approximately 2–5 mm additional allowance.
Glory Rail explained that this tolerance was intentional and related to practical installation requirements.
During crane runway installation, expansion gaps are normally reserved between rail sections to accommodate thermal expansion. Typically, an expansion gap of around 12–14 mm is considered during installation.
The additional length allowance provided benefits including:
- Easier onsite adjustment
- Reduced cutting requirements
- Better control of final runway dimensions
- Proper accommodation of thermal expansion
This technical consideration helped ensure that the delivered rails could meet the actual installation requirements.

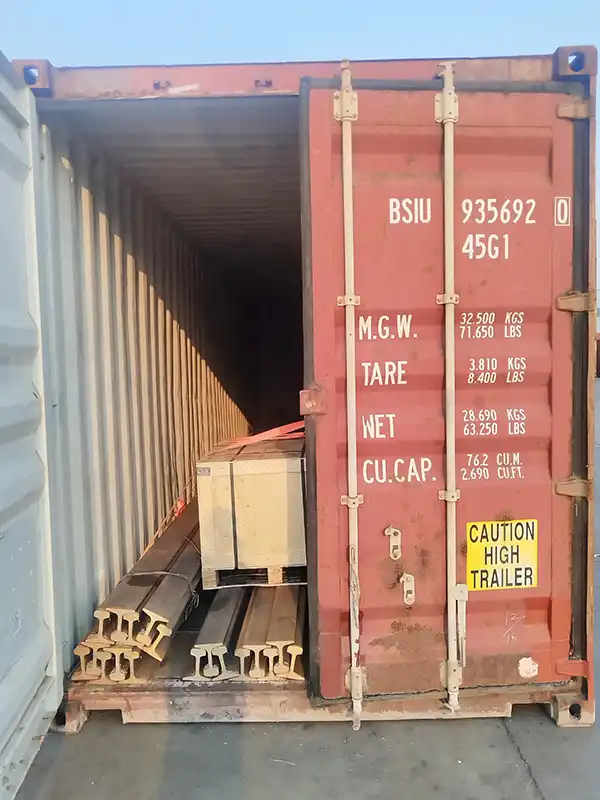

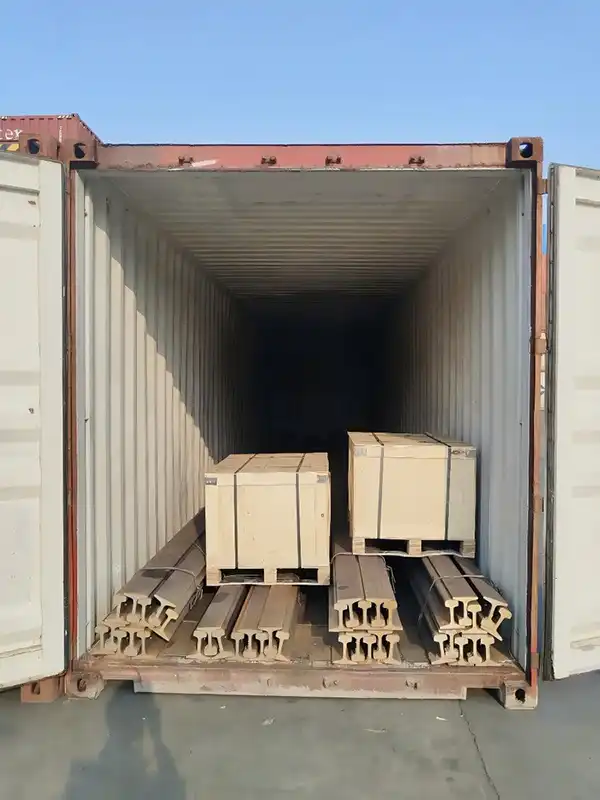

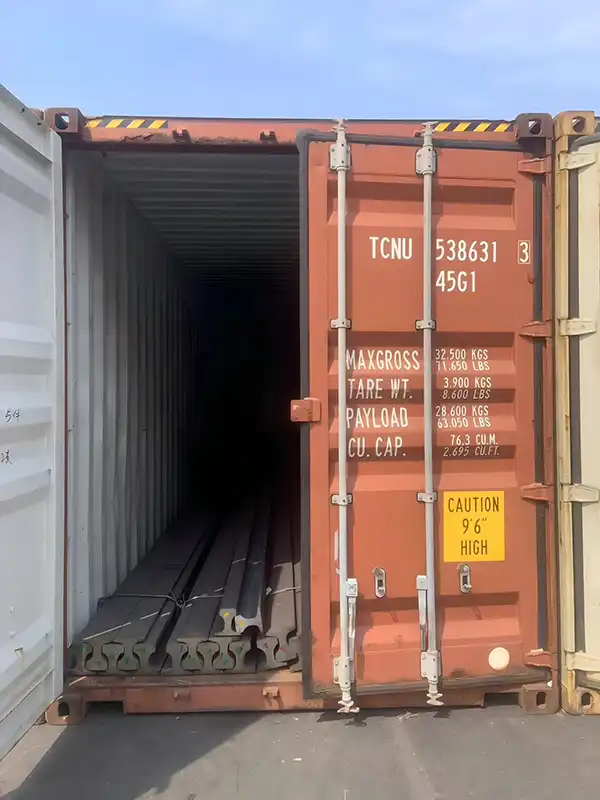

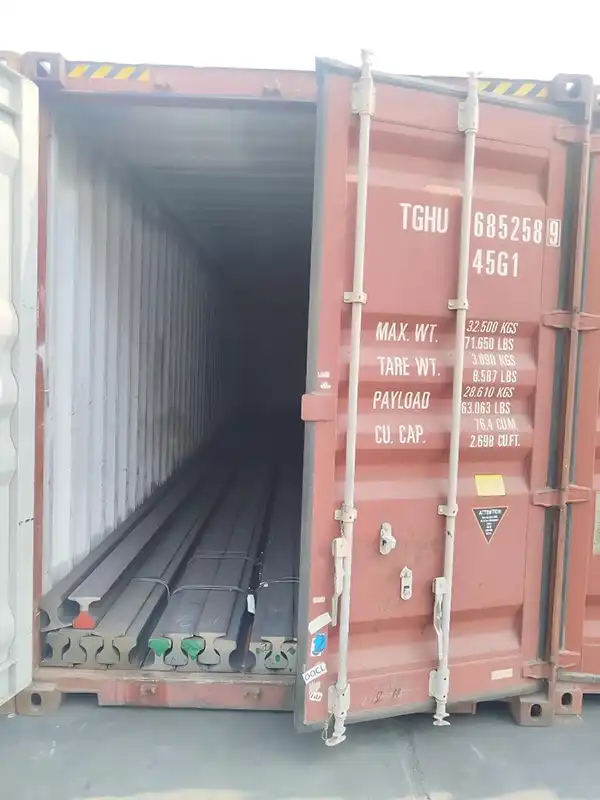

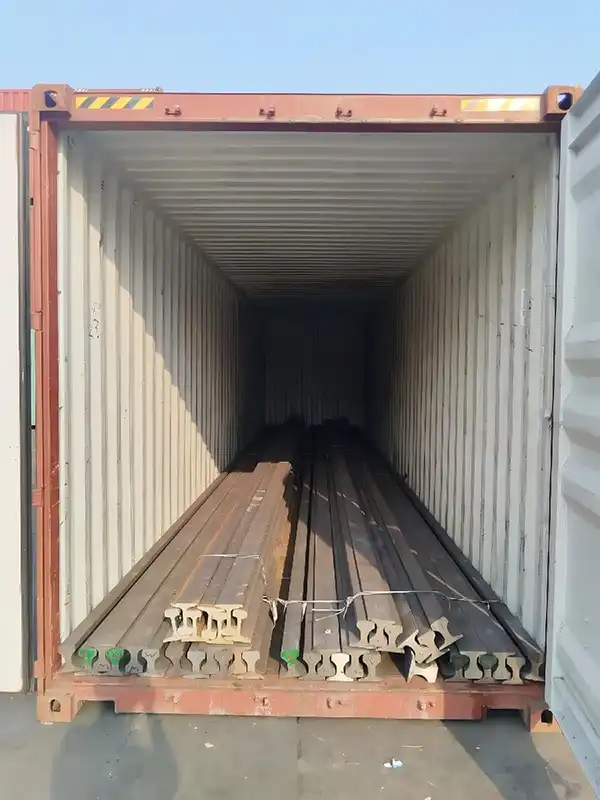

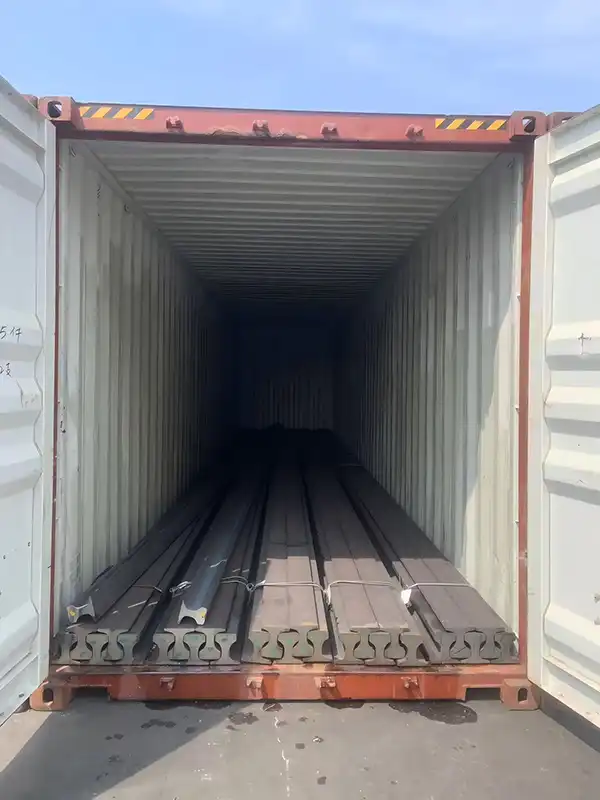

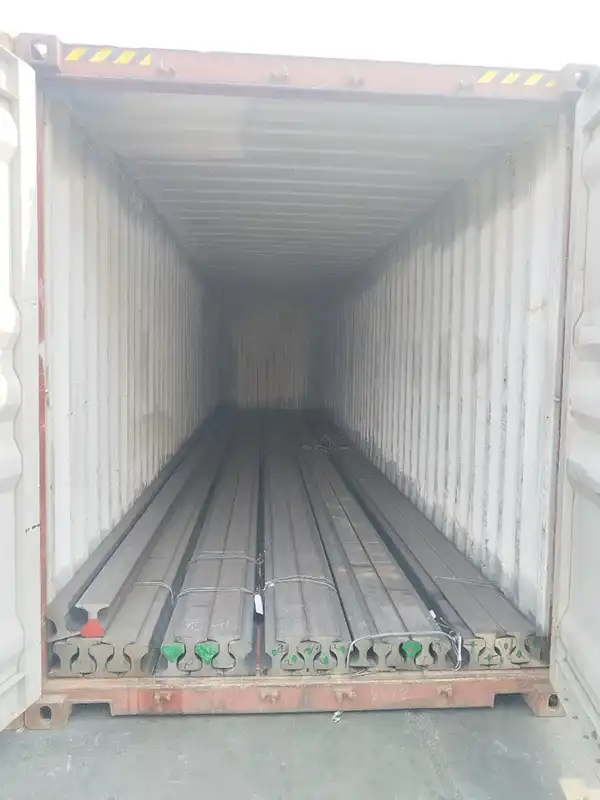

Transportation and Delivery
Due to the project scale, the order required large-volume international transportation.
The shipment included:
- 7 full containers
- Additional LCL shipment
- Sea transportation from Tianjin Port, China to Dammam Port, Saudi Arabia

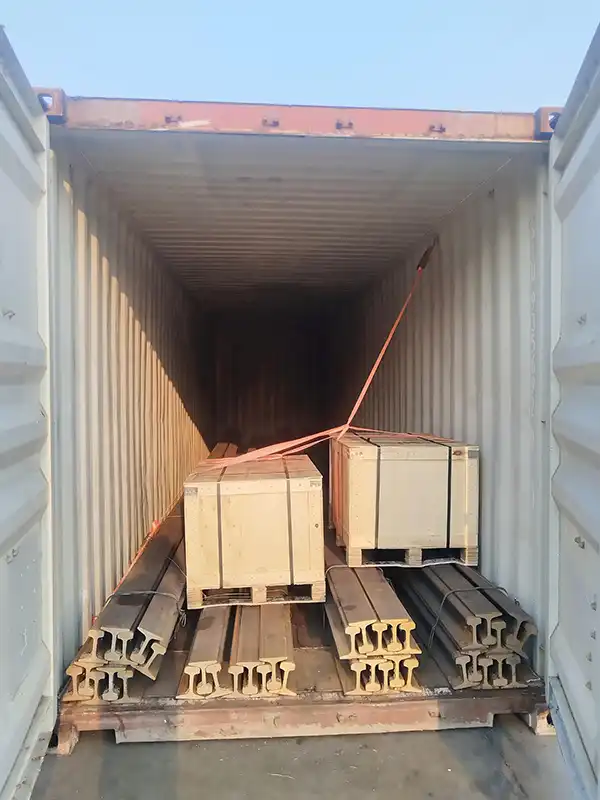

Before shipment, Glory Rail completed product inspection, quantity verification, and export packaging to ensure the rails and accessories arrived safely after long-distance transportation.
Project Value
This Saudi Arabia project demonstrated Glory Rail’s capability in supplying complete industrial rail solutions for overseas engineering projects.
The company supported the customer through:
- Multi-profile crane rail supply
- Compatible fastening components
- Technical communication during project preparation
- International logistics coordination
For contractors requiring a reliable Crane Rail System for Saudi Arabia, Glory Rail can provide customized rail solutions based on crane load requirements, installation conditions, and project specifications.
Conclusion
The successful delivery of this Crane Rail System for Saudi Arabia project highlights the importance of combining quality rail products with engineering support.
By supplying QU80, QU100 crane rails, 50kg steel rails, and 3120 rail clamps, Glory Rail helped provide a stable foundation for heavy-duty crane operations in Saudi Arabia.
