ASCE 25 Rail
ASCE 25 Rail, also known as 25 lb rail, is a versatile light rail solution engineered for low-impact, medium-duty applications. Manufactured to ASTM A1 standards, this rail type derives its name from the American Society of Civil Engineers (ASCE) standards, with “25” denoting its weight of 25 pounds per yard (12.2kg/m). It offers a balanced combination of durability, cost-effectiveness, and ease of installation, specifically designed to support light traffic loads while ensuring long-term performance in various industrial environments. The rail is crafted from premium materials like Q235B, 55Q, and U71Mn, catering to diverse project requirements without compromising on reliability.
Specifications of ASCE 25 Rail:
Size: ASCE 25 steel rail / 25lb rail
Length: 12~25m or other length according to customers’ requirement
Material: Q235B,55Q,U71Mn
Standard: ASTM A1
Type: Light Rail

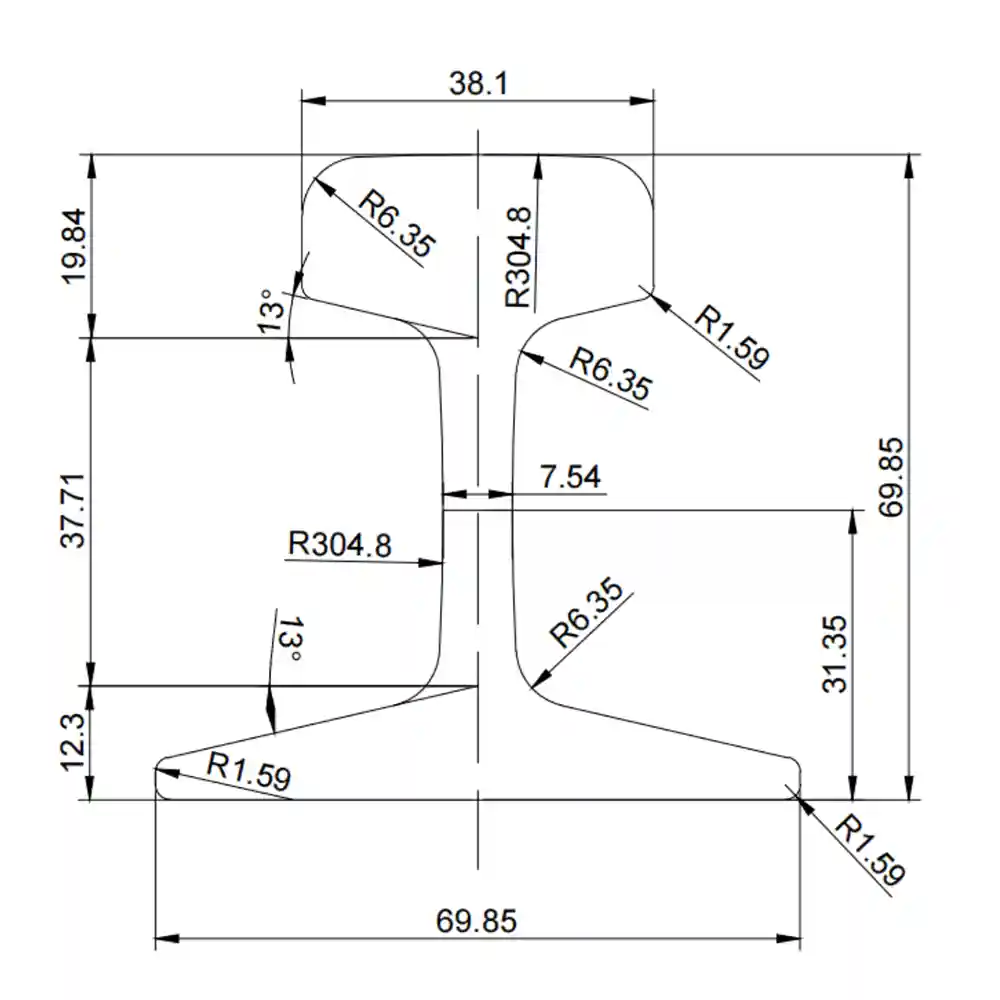

Rail Height: 69.85mm
Bottom Width: 69.85mm
Web Thickness: 7.54mm
Head Width: 38.1mm
Weight: 12.2kg/m
ASCE 25 Rail Material Parameter
Below are the mechanical and chemical compositions of the primary materials used in 25lb Rail, selected for their durability and performance in light-duty applications.
Applications of ASCE25 Rail
ASCE25 Steel Rail finds extensive use in scenarios where light-duty track systems are essential:
Industrial & Warehouse Systems
Supports light rail carts and small locomotives in factories, warehouses, production facilities, workshops, and logistics for internal material handling.
Light Crane & Recreational Tracks
Suitable for light-duty overhead cranes in workshops and recreational railways (e.g., tourist trains, heritage rail projects) with low-load requirements.
Temporary Infrastructure &Construction
Ideal for short-term construction sites, event venues, and logistics hubs requiring flexible rail layouts for temporary material transport.
Forestry & Mining Operations
Engineered for light locomotives in forested areas and low-depth mining sites, ensuring efficient material transportation in rugged terrains.
Advantages of Our ASCE25 Rail
Cost-Effective Performance
Balances budget efficiency with reliable mechanical properties, offering a cost-saving alternative to heavy rails.
Customizable Specifications
Tailored to project needs with flexible lengths (12m–25m+), material grades, and dimensional adjustments for precise fit.
Durable Material Options
Available in Q235B, 55Q, and U71Mn steels, ensuring adaptability to different load capacities, wear resistance, and environmental demands.
Easy Installation & Maintenance
Lightweight design reduces installation labor and equipment costs, while robust materials minimize long-term maintenance needs.
Customization Services
Glory Rail offers comprehensive customization for 25lb Rail to meet your project’s unique requirements:
- Length Customization: Rails can be produced in lengths from 12m to 25m, or any specific length as needed.
- Material Selection: Choose from Q235B, 55Q, or U71Mn steel based on load capacity, environmental factors, and budget.
- Special Treatments: Options for heat treatment, anti-corrosion coating, or surface hardening to enhance performance.
- Standard Compliance: Adaptation to regional standards beyond ASTM A1 upon request.
Reliable Track Support Components
Ensure consistent performance and structural integrity across your rail network.
Rail Clips
Securely fasten rails to sleepers, maintaining gauge stability under dynamic loads.
Fish Plates
Connect rail ends seamlessly, ensuring smooth transitions and load distribution.
Steel Soleplates
enhance railway durability by distributing loads, adjusting track alignment, damping vibrations.
Rail Pads
Reduce vibration and noise, distribute dynamic loads evenly, and prolong sleeper life.
Global Dispatch, Trusted Handling
Our export team ensures your order is shipped with complete protection and full compliance.
Request a Quote
Ready to source ASCE25 Rail for your project? Contact us with the following details for a personalized quote:
- Required rail length and quantity
- Preferred material grade (Q235B, 55Q, or U71Mn)
- Application context (e.g., mining, construction, crane tracks)
- Custom specifications (if any)
Our team will promptly provide a competitive quote tailored to your needs. Reach out today for reliable light rail solutions!
