100RE Rail

100RE Rail, also known as 100lb rail or TR50 rail, is a premium heavy-duty rail engineered to AREMA standards for high-load industrial applications. With a weight of 50.34kg/m (100lb/yd), this rail type combines exceptional durability with structural integrity, making it ideal for demanding environments. Designed for heavy cranes, port infrastructure, and industrial rail networks, 100RE Rail offers reliable performance under continuous heavy loads, available in high-strength low alloy, intermediate, and standard carbon steel grades.

Specifications of 100RE Rail:

Size: 100RE rail / 100lb rail / TR50 Rail
Length: 12~25m or other length according to customers’ requirement
Material: High Strength, Intermediate, Standard
Standard: AREMA
Type: Heavy Rail, Crane Rail

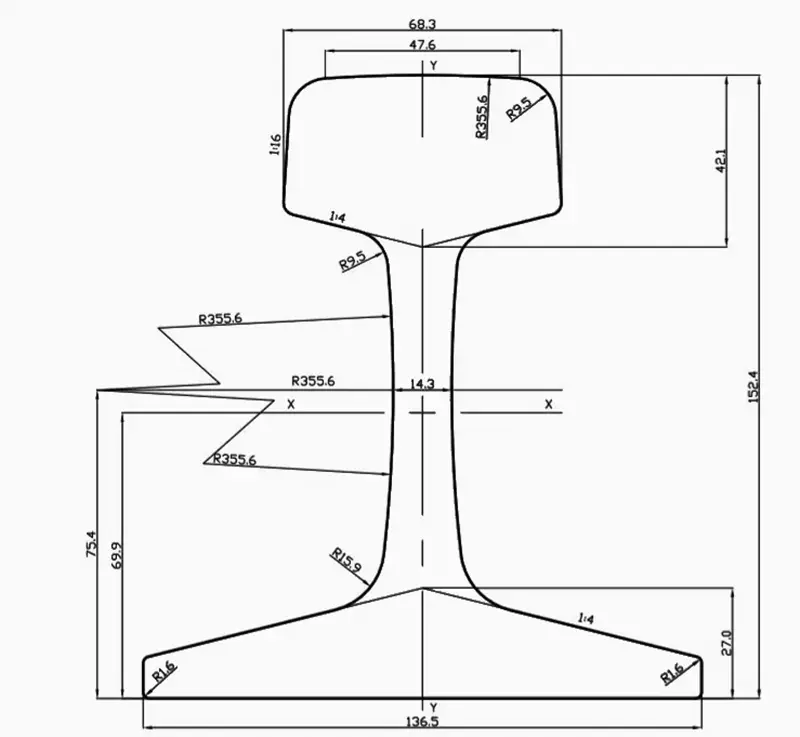

Rail Height: 152.40mm
Bottom Width: 136.50mm
Web Thickness: 14.30mm
Head Width: 68.30mm
Weight: 50.34kg/m

100RE Rail Material Parameter

Choose from high-strength (tensile ≥120ksi), intermediate, or standard steel grades—all AREMA compliant for optimal performance in heavy-load, high-wear environments.

Applications of 1OORE Rail

Engineered for heavy-load mobility in rigorous environments, 100RE Heavy Rail excels in:

Mining & Quarry Haulage Networks

Ideal for heavy-material transport in underground mines and open-pit operations, withstanding repetitive loading and abrasive conditions.

Port & Cargo Handling Infrastructure

Facilitates heavy-load container transport in port terminals, combining durability with resistance to coastal environmental stress.

Industrial Heavy Track Networks

Used in heavy machinery rails and logistics hubs for reliable conveyance of bulk materials in high-traffic industrial zones.

Crane Runway Systems

Supports heavy-duty overhead cranes in manufacturing plants and ports, ensuring precise load movement under continuous high-impact operations.

Advantages of Our 100RE Rail

AREMA Standard Compliance

Meets American railway engineering standards for compatibility with global heavy-industry projects.

Multi-Grade Material Versatility

Choose high-strength (≥120ksi) for extreme loads, intermediate for balanced performance, or standard for cost efficiency.

Precision Customization

Tailor-cut lengths and machining (bevel cutting, punching) for seamless integration in complex track layouts.

Low-Maintenance Design

Robust 14.30mm web thickness reduces deformation, minimizing repairs in high-traffic industrial environments.

Customization Services

Glory Rail provides tailored solutions for heavy rail projects:

Length Optimization: Rails cut to exact measurements (12m–25m) or custom sizes for unique track layouts in mines and ports.
Material Tailoring: Choose between Standard Strength (low alloy), Intermediate Strength (carbon steel), or High Strength (head-hardened) grades per AREMA specifications.
Surface Treatments: Options include induction hardening, hot-dip galvanization, or anti-rust coating for coastal or high-moisture environments.
End Machining: Customized rail ends for welded, bolted, or clipped connections, ensuring secure alignment in heavy crane and haulage systems.

Reliable Track Support Components

Ensure consistent performance and structural integrity across your rail network.

Request a Quote

Ready to source 100RE Heavy Rail for your project? Contact us with the following details for a tailored quote:

Quantity required (in meters or units)
Desired length (12m–25m or custom)
Preferred steel grade (SS/LA/IH/IS/HH/LH)
Application type (crane/port/mining/industrial track)
Customization needs (surface treatment, end machining, material specifications)
Delivery location and timeline

Submit an inquiry for a prompt response!
